DuraLED® Surface Mount Oblong Courtesy Lamps

Updated to feature a new all-white body design, the DuraLED® oblong courtesy lamp series offer subtle ambient lighting to highlight specific areas in your vehicle.

These lights are great for use during both day and night and are often installed in entrance steps and aisles, inside smaller lockers, and under eaves. Other applications might include stairs, toe kicks or storage areas.

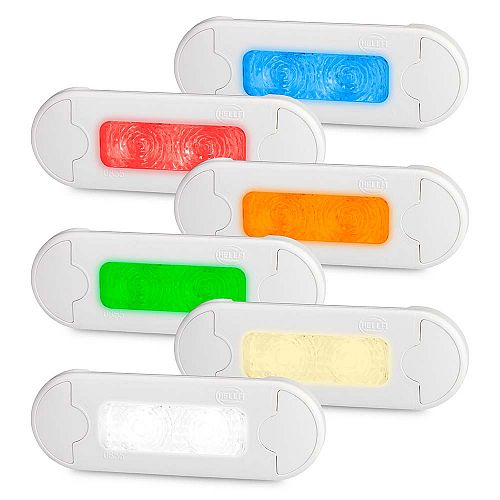

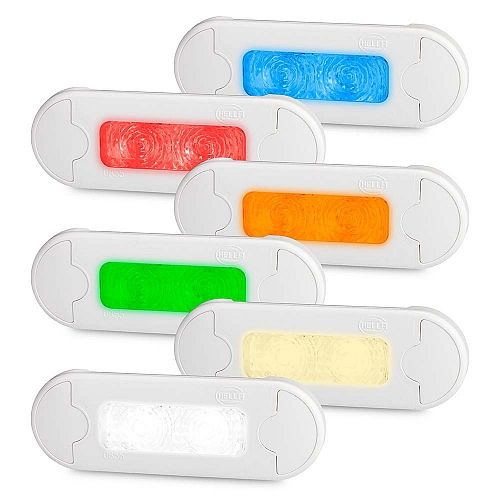

Colour options are available to match the interior lighting colour temperature of either cool or warm white, or alternatively, red or blue options are available for utility or to create more interesting looks. Amber and green models can also provide signalling functions.

Each lamp is completely sealed, highly shock, impact, and vibration resistant making them suitable for any demanding environment. Lamps can be installed on interiors or exteriors, and in wet or dry conditions.

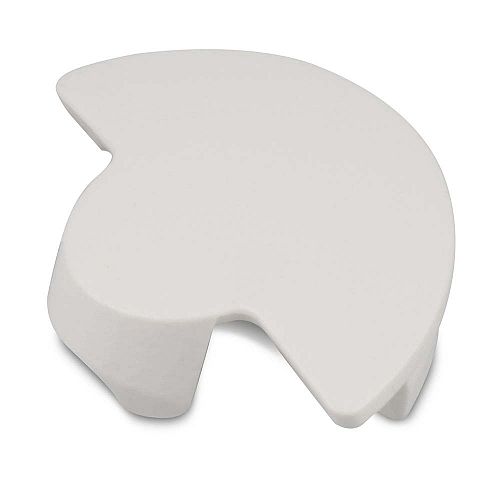

Satin Chrome plated 316 stainless steel and black plastic trims are offered as optional accessories.

The oblong courtesy range is designed and manufactured in New Zealand and supported by the DuraLED® lifetime warranty.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

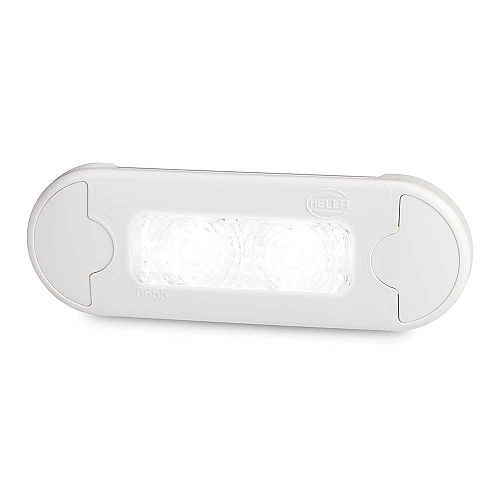

DuraLED® Flush Mount Courtesy Lamp - Low Profile - White Light

PART NO: 2XT 980 855-101
Legacy PN: 98085510

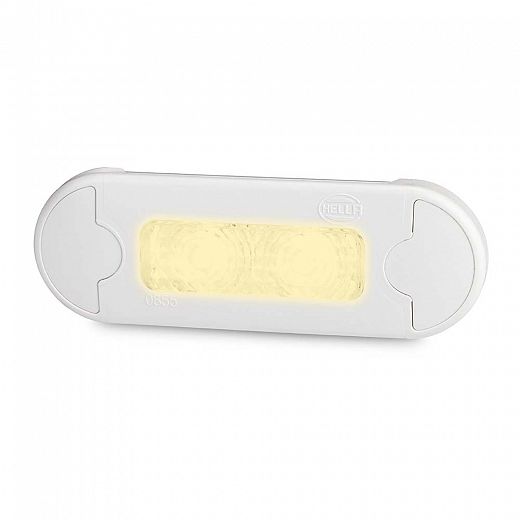

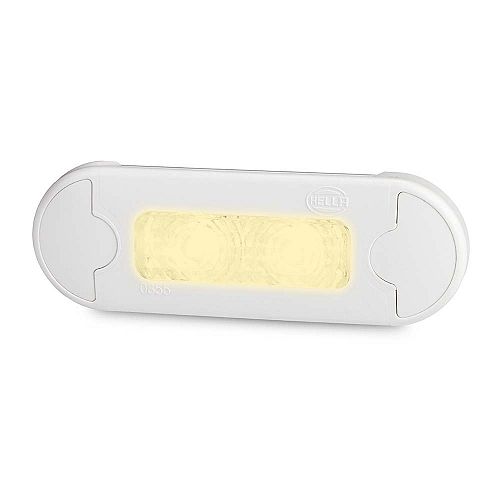

DuraLED® Flush Mount Courtesy Lamp - Low Profile - Warm White Light

PART NO: 2XT 980 855-151
Legacy PN: 98085515

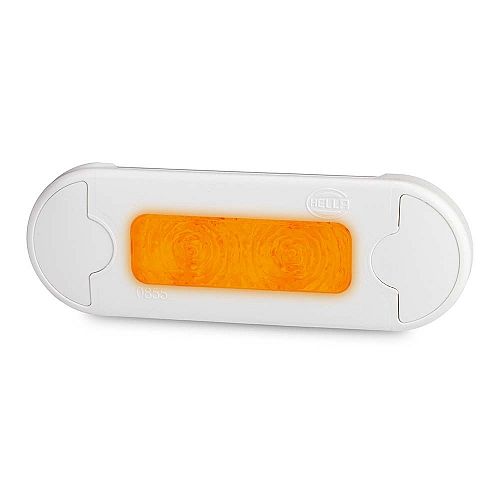

DuraLED® Flush Mount Courtesy Lamp - Low Profile - Amber Light

PART NO: 2XT 980 855-251
Legacy PN: 98085525

DuraLED® Flush Mount Courtesy Lamp - Low Profile - Red Light

PART NO: 2XT 980 855-351
Legacy PN: 98085535

DuraLED® Flush Mount Courtesy Lamp - Low Profile - Blue Light

PART NO: 2XT 980 855-401
Legacy PN: 98085540

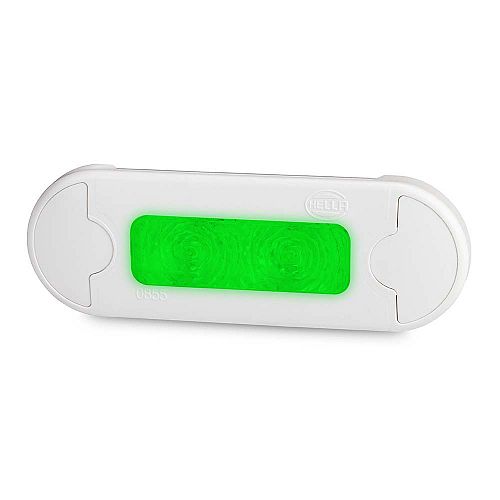

DuraLED® Flush Mount Courtesy Lamp - Low Profile - Green Light

PART NO: 2XT 980 855-501
Legacy PN: 98085550

Specifications

Optics

Optic appears clear until illuminated.

Mounting

Surface mount.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

0.5W ( <0.04A@12V / <0.02A@24V )

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable.

Lens Material

Impact resistant acrylic

Compliance

CE  RCM CE

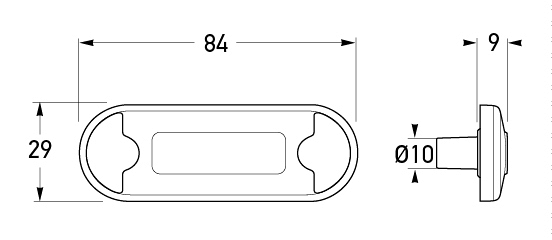

Outline

All dimensions on mm.
All dimensions on mm.
