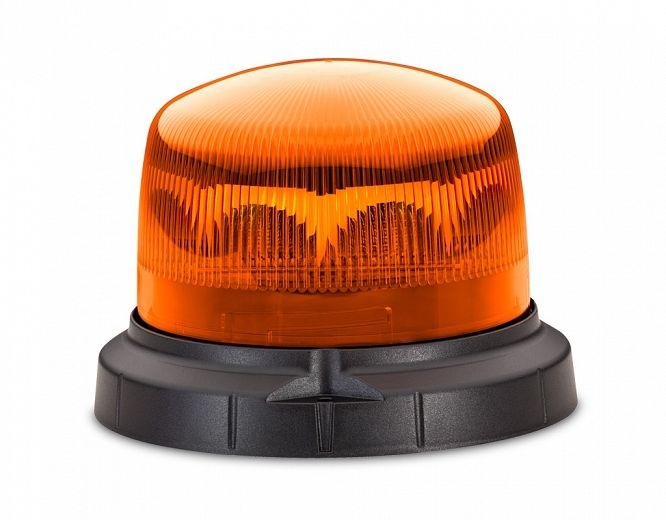

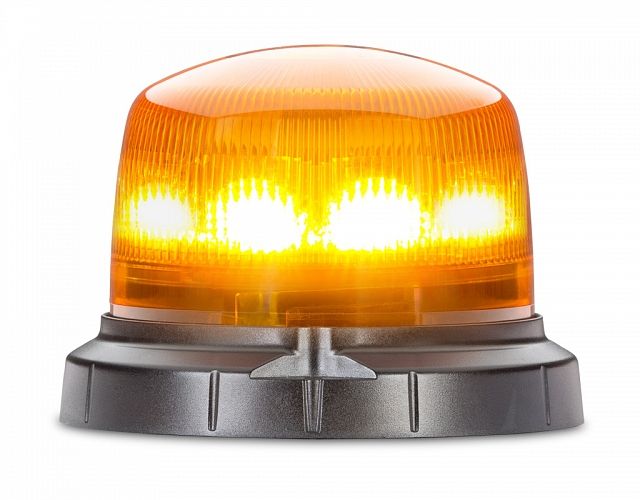

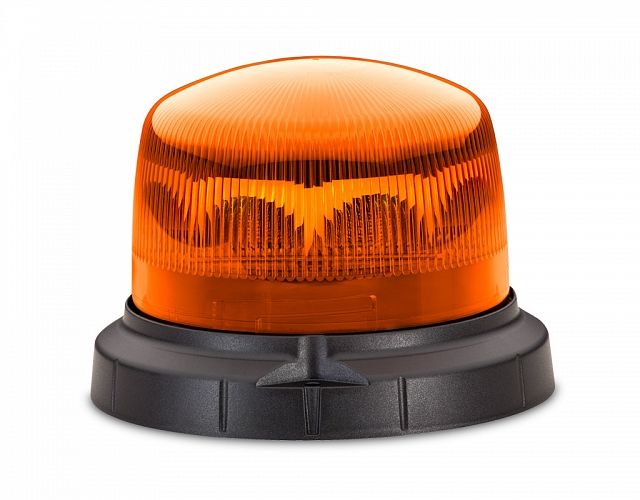

RotaLED Compact Beacon (Rotating) - Fixed Mount

RotaLED Compact rotating beacon is a complete warning solution, in a cost effective package. It offers a high level of durability and a maintenance free design.

A high performance LED beacon offering a rotating signal and 360° warning effect which provides ultimate attention in many applications. The impact-resistant dome and no moving parts provide maximum reliability.

• Compact size
• High visibility 360° warning effect
• Durable, impact-resistant dome
• Fixed mount and flexible pipe mount variants

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

360° warning beacon or light

Rotating

360° warning beacon or light

Options

RotaLED Compact Beacon (Rotating) - Fixed Mount

PART NO: 2RL 014 979-041

Specifications

Mounting

Fixed mounting

Voltage

Multivolt™ for optimum brightness at input voltages from 10 to 30 volts

Power Consumption

10W

Protection

Reverse polarity and transient spike circuit protection
IP 67 (Protection against dust and temporary water immersion)
IP X9K (Protection against high-pressure cleaner, specific for road vehicles)

Cable

Fixed mounting Pre-wired with 150mm cable

RF Suppression

CISPR 25 Class 5 ECE R10

Compliance

ECE R65/00 TA1 SAE J845 Class 1

Outline

2RL 014 979-041 Fixed Mounting (Rotating) - All dimensions in mm
2RL 014 979-041 Fixed Mounting (Rotating) - All dimensions in mm
