HELLA

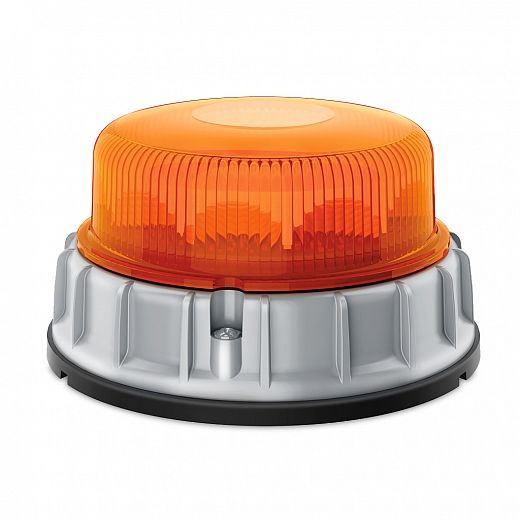

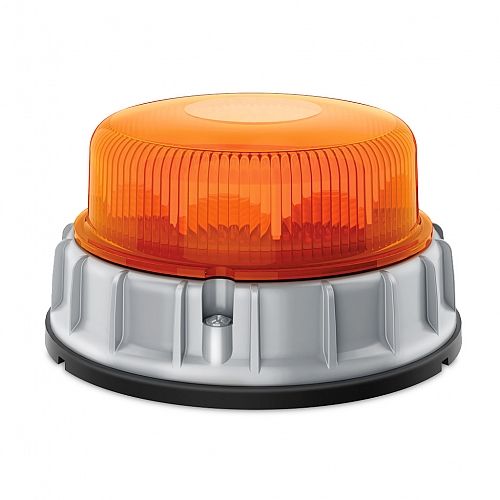

K-LED 2 Beacon

K-LED low profile beacons are the ideal choice wherever beacons risk interference with radio communications. Featuring 20 high power LEDs providing high light output for best visibility. An automatic day/night sensor adjusts brightness to avoid glare discomfort at night. 14 different flashing and 2 rotating patterns.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

K-LED 2 Beacon - Amber

PART NO: 2XD 011 557-101
Legacy PN: 1614

Specifications

Mounting

Fixed mounting on horizontal surfaces.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

30W max.

Protection

Reverse polarity and Transient Spike Circuit protection.
IP 6K7 (Protection against dust and temporary water immersion)

Flash Rate

Simulated rotation 120rpm (2.00Hz)

Compliance

ECE R65 TA2 ECE R65 TR2 SAE J 845 Class 1 CISPR25 Class 5

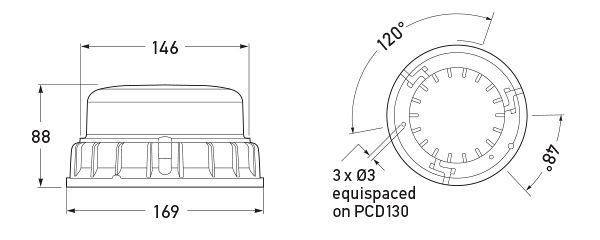

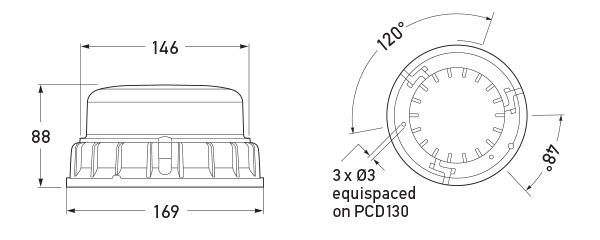

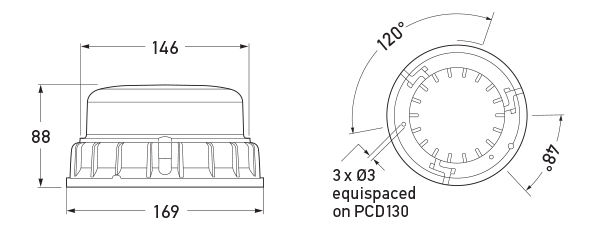

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  460_909-25_IS_K-LED_2_Beacon.pdf 4.92 MB
