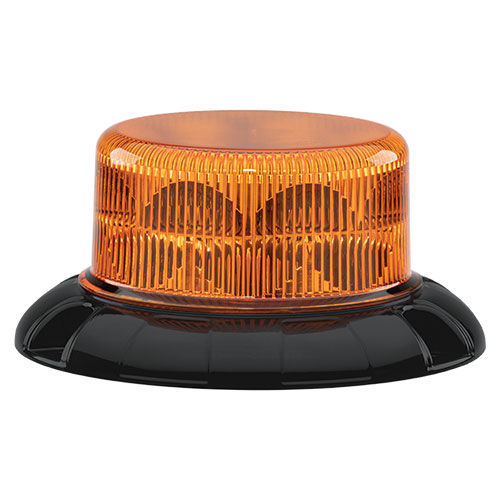

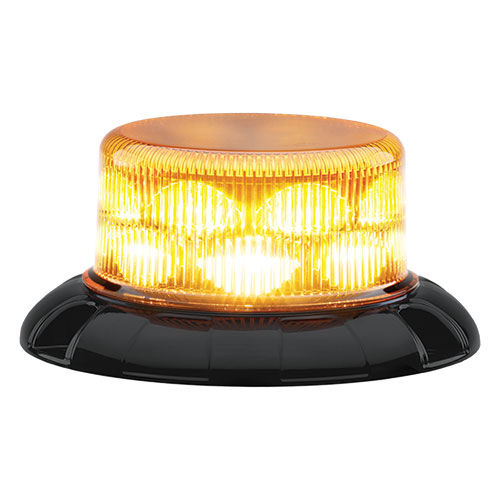

K-LED Nano Beacon

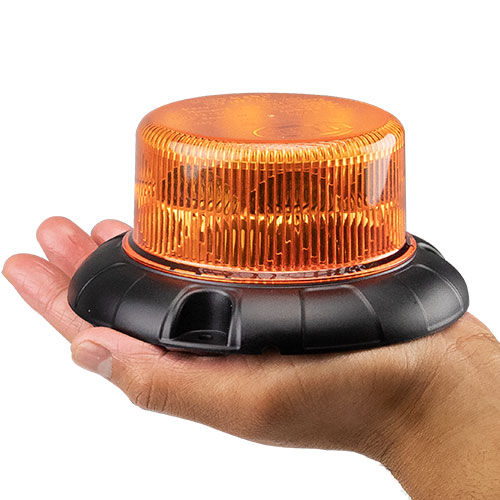

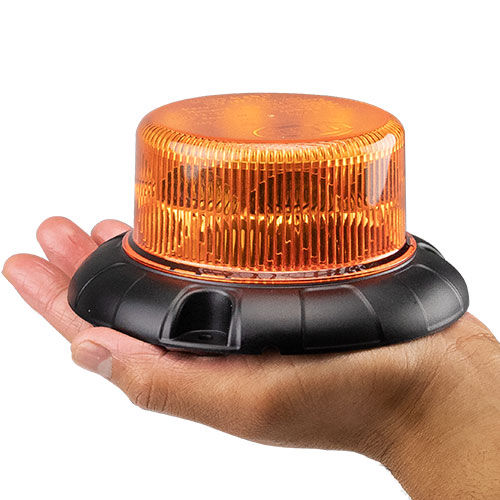

The K-LED Nano is the smallest beacon in the HELLA range to date.
Despite its compact design, it achieves J845 Class 1 certification through an attention-grabbing warning effect, with its flashing, long-range amber light signal. The beacon is insensitive to vibrations and shocks, thanks to the energy-efficient, long-life LED technology. Advanced LED technology also means the warning signal is generated without moving parts. The robust housing and the impact-resistant light dome are both waterproof and dustproof. The beacon is available as both a variant for fixed mounting, and for flexible pipe socket mounting with a vibration‑damping base plate and automatic reset.

  • Compact design
  • SAE J845 Class 1 certified
  • High intensity light output
  • Vibration and impact-resistant
  • Completely sealed against dust and water

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Can use either 12 or 24V

12/24V Dualvolt

Can use either 12 or 24V

Pipe mount is flexible, so it softens impacts and minimises the risk of damage if hit.

Flexible Version

Pipe mount is flexible, so it softens impacts and minimises the risk of damage if hit.

Flashing effect

Flashing

Flashing effect

Options

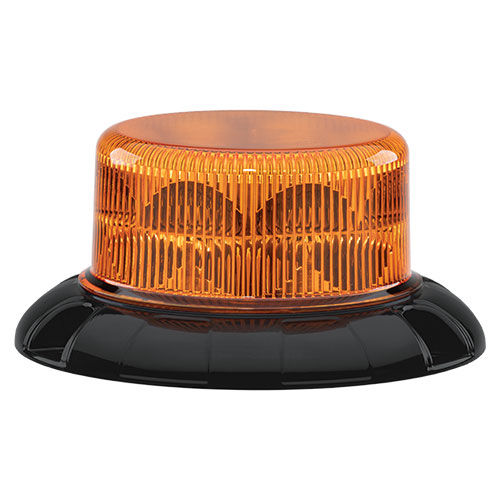

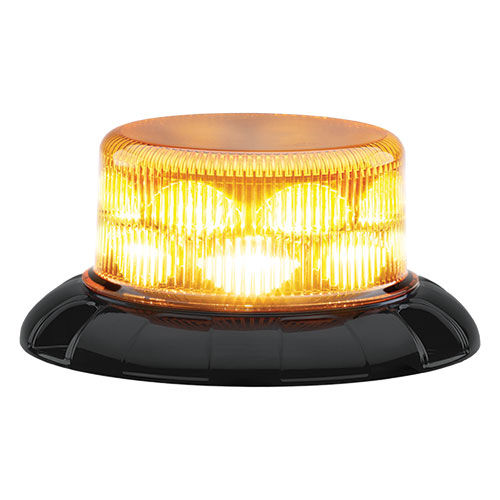

K-LED Nano Beacon - Fixed Mounting

PART NO: 2XD 066 146-001

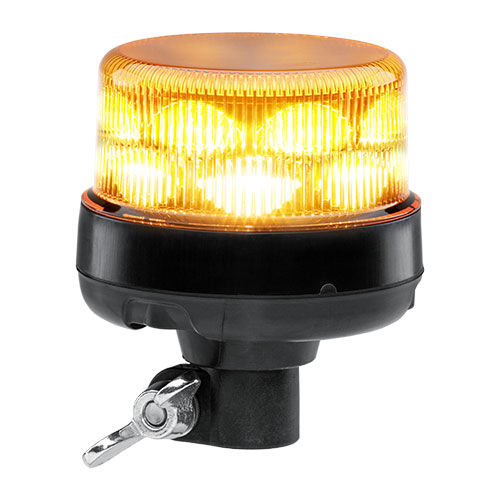

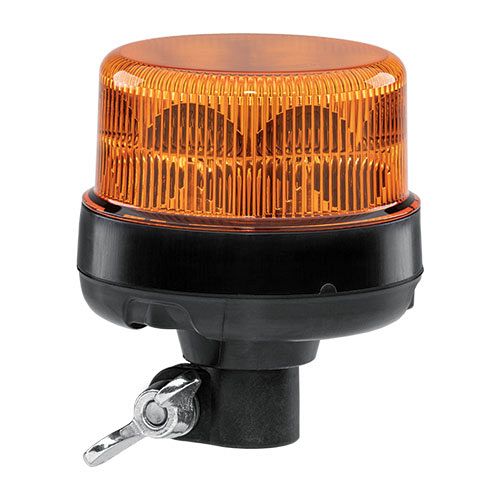

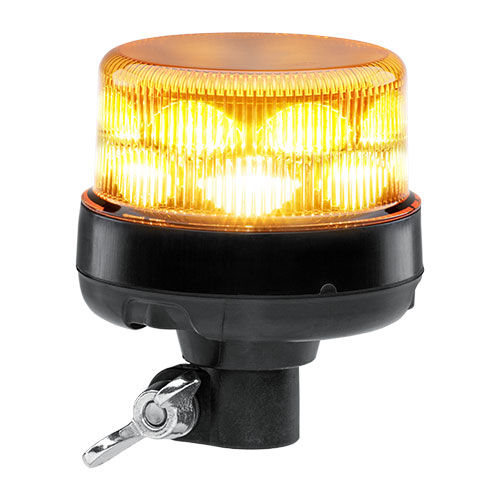

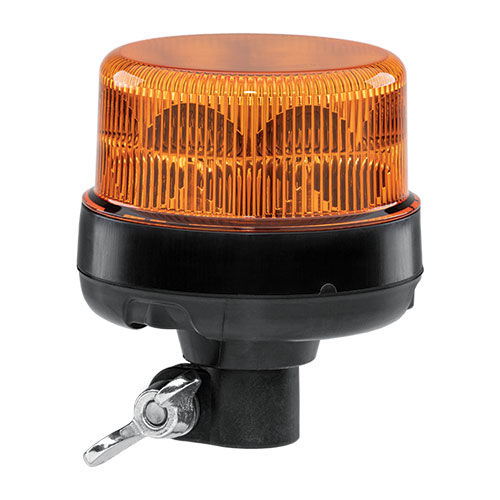

K-LED Nano Beacon - Flexible Pipe Socket Mounting

PART NO: 2XD 066 146-011

Specifications

Mounting

Upright, fixed mounting on horizontal surfaces

Voltage

12V / 24V

Power Consumption

Nominal 5W
Max. 19W

Protection

IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9 (Protection against dust and high-pressure/steam jet cleaning)

Flash Rate

124 +/- 10 per minute

Cable Length

Fixed Mounting 150 mm cable

Accessories

Pipe Socket Mounting
8HG 002 365-001 2 Pole beacon mount - Pipe
8HG 006 294-011 2 Pole beacon mount - Flat mount
8HG 006 294-111 2 Pole beacon mount - Flat angle mount
8HG 006 294-051 2 Pole beacon mount - Threaded mount

RF Suppression

ECE R10 CISPR 25 Class 5

Compliance

ECE R65 TA1 005218, SAE J845 Class 1

Outline

2XD 066 146-001 K-LED Nano Fixed Mounting (Dimensions in mm)
2XD 066 146-001 K-LED Nano Fixed Mounting (Dimensions in mm)
2XD 066 146-011 Flexible Pipe Socket Mounting (Dimensions in mm)
2XD 066 146-011 Flexible Pipe Socket Mounting (Dimensions in mm)
