HELLA

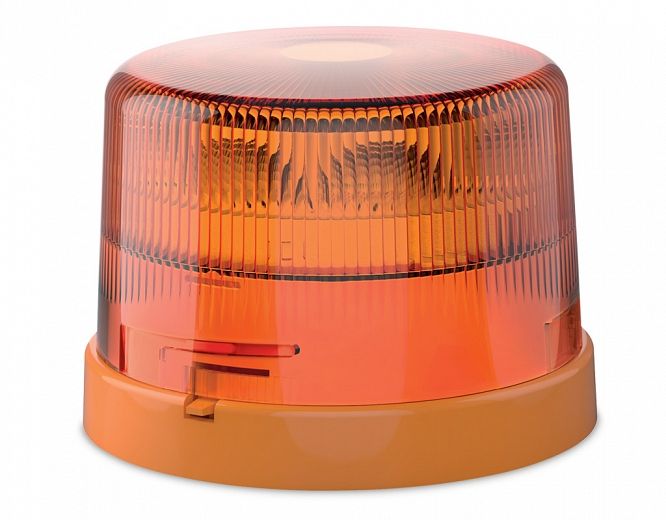

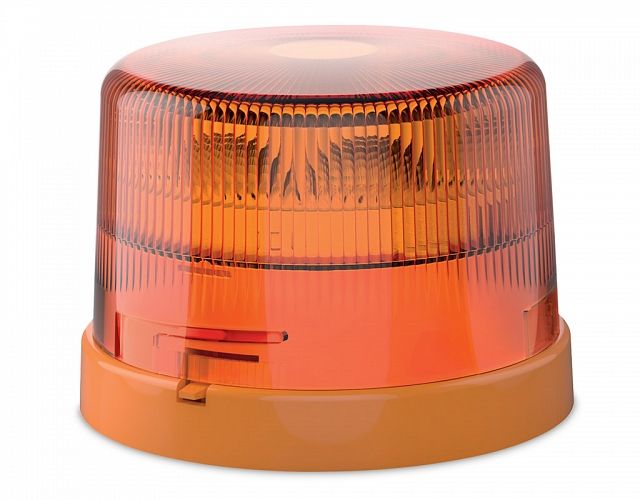

KL7000LED Beacon

KL7000LED Beacon, with the latest LED technology provides an optimum signal image with low power consumption. The combination of thermal management and optics in one module makes a remarkably compact design possible. Impact and dirt resistant PMMA lens.

• Rotating LED light function.
• Low current consumption, high efficiency.
• Long service life.
• No bulb replacements.
• Impact-resistant, smooth dome.
• ECE R65 compliant
• Direct replacement for halogen lamp (e.g: P/N 1728)

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

KL7000LED Beacon - Fixed Mount - Amber

PART NO: 2RL 011 484-001
Legacy PN: 1608

Specifications

Mounting

Fixed mount.

Voltage

Multivolt™ for optimum brightness at input voltages from 10 to 32 volts.

Power Consumption

10W.

Protection

IP5KX (Protection against dust)
IPX4K (Protection against splashing water from all directions. With higher pressure)
IPX9K (Protection against high-pressure cleaner, specific for road vehicles)

Flash Rate

120-133 rpm simulated (2.0-2.2Hz)

Compliance

ECE R10 ECE R65 TA1 CISPR25 Power Controlled Class 5

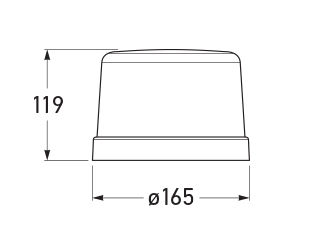

Outline

All dimensions in mm.
All dimensions in mm.
