HELLA

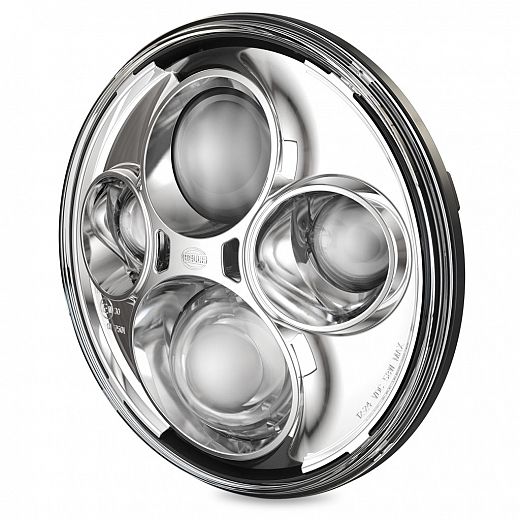

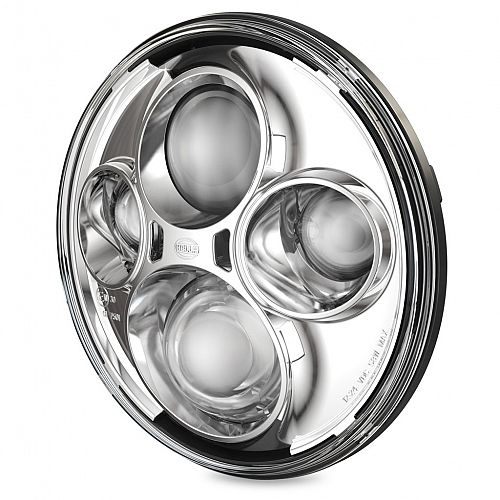

7" Round LED Headlamp - High Beam Insert

The new HELLA 7" round LED Headlamp range are a direct replacement for 7” round halogen light inserts. Offering all the advantages of advanced LED technology including superior light output, a wider peripheral vision for increased safety on the road, and no bulb replacements or maintenance meaning less down time for fleets. Three options are available – High Beam or High/Low Beam and High/Low Beam with Daytime Running Light and Front Position.

As one of the best performing lights in the market today, the 1358LED lamp is aesthetically pleasing powerhouse features a high beam function with massive 1440 lumen light output for only 60W.

Combining the latest state of the art LED technology, multivoltage 12/24V DC circuit design and precision optics, the retrofit lamps provide outstanding visibility, safety, and durability – making them one of the most advanced 7” LED headlamps available. The tough die-cast aluminium housing is IP67 sealed against water and dust ingress with a UV resistant, hard coated polycarbonate lens making the HELLA’s 7" Round LED Headlamp range perfect for use on and off-road.

Approved for use in New Zealand and Australia, the retrofit headlamps are ECE and RCM compliant, easy to install, don't require any bulb replacements and covered by HELLA’s extensive five year warranty and nationwide support for complete peace of mind.

Download Aiming Sheet High Beam Instructions Here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

7" Round LED Headlamp - High Beam

PART NO: 1L6 958 307-021
Legacy PN: 1358LED

Specifications

Mounting

Retrofit 178mm Ø (7") headlamps

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

60W

Light Output

1440 lumen

Protection

Reverse polarity protection.
IP 67  (Protection against dust and temporary water immersion)

Cable Length

2 x 100mm cables with male blade terminals.

Housing Material

Die-cast Aluminium

Lens Material

Coated Polycarbonate

Compliance

ECE R112/01 Ref. 12.5 E11 7501 CE

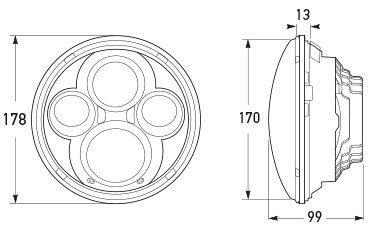

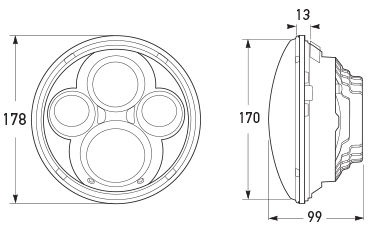

Outline

All dimensions in mm.
All dimensions in mm.

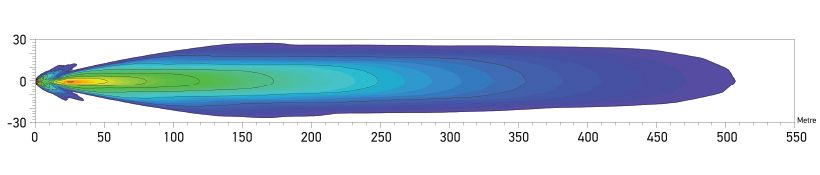

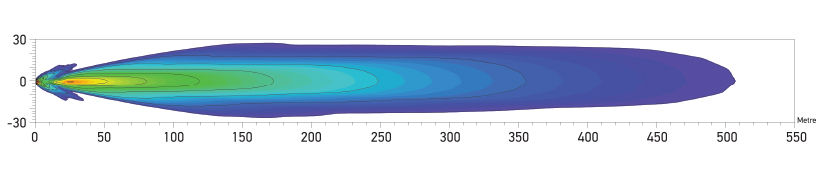

Light Output

High Beam Distance. Recorded with two lamps.
High Beam Distance. Recorded with two lamps.

Documents

Document File Name File Size
  Instruction Sheet - 1358LED.pdf 340.63 KB
  Aiming Sheet High Beam Instructions A4.pdf 405.50 KB
