HELLA

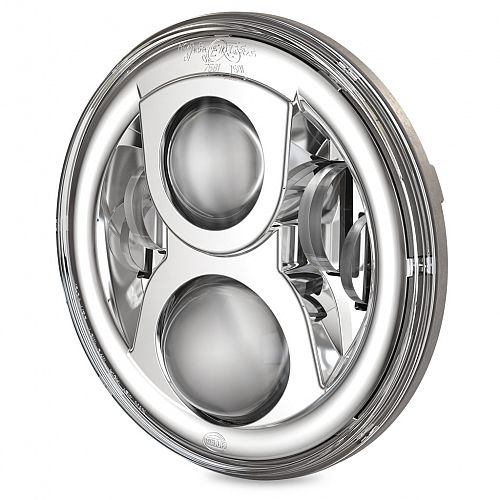

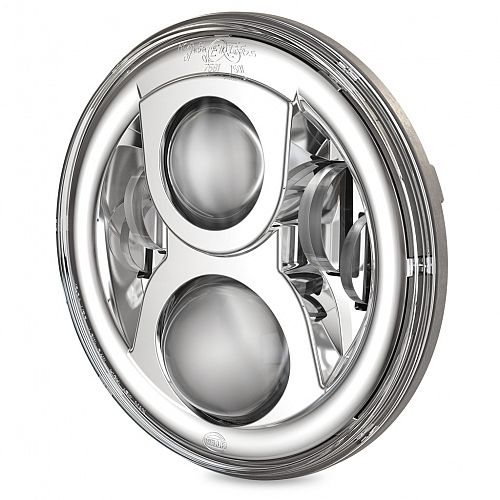

7" Round LED Headlamp - High/Low Beam Insert

The new HELLA 7" round LED Headlamp range are a direct replacement for 7” round halogen light inserts. Offering all the advantages of advanced LED technology including superior light output, a wider peripheral vision for increased safety on the road, and no bulb replacements or maintenance meaning less down time for fleets. Three options are available – High Beam or High/Low Beam and High/Low Beam with Daytime Running Light and Front Position.

The high/low beam version of the new 7” LED headlamp range offers 1150/750 lumen light output and a wide spread creating a superior light distribution increasing peripheral vision.

Combining the latest state of the art LED technology, multivoltage 12/24V DC circuit design and precision optics, the retrofit lamps provide outstanding visibility, safety, and durability – making them one of the most advanced 7” LED headlamps available. The tough die-cast aluminium housing is IP67 sealed against water and dust ingress with a UV resistant, hard coated polycarbonate lens making the HELLA’s 7" Round LED Headlamp range perfect for use on and off-road.

Approved for use in New Zealand and Australia, the retrofit headlamps are ECE and RCM compliant, easy to install, don't require any bulb replacements and covered by HELLA’s extensive five year warranty and nationwide support for complete peace of mind.

Download Aiming Sheet High/Low Beam Instructions Here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

7" Round LED Headlamp - High/Low Beam Insert

PART NO: 1L6 958 307-001
Legacy PN: 1056LED

Specifications

Mounting

Retrofit 178mm Ø (7") headlamps

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

Low Beam 35W
High Beam 25W

Light Output

Low Beam: 750 lumen
High Beam: 1150 lumen

Protection

Reverse polarity protection.
IP 67  (Protection against dust and temporary water immersion)

Connection

3 PIN "H4" type male plug (100mm cable)

Housing Material

Die-cast Aluminium

Lens Material

Coated Polycarbonate

Compliance

ECE R112/01 Ref. 12.5 E11 7581 CE

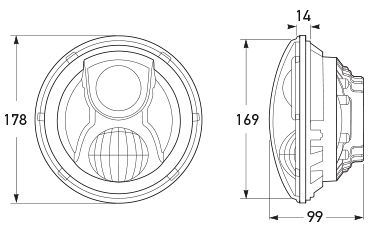

Outline

All dimensions in mm
All dimensions in mm

Light Output

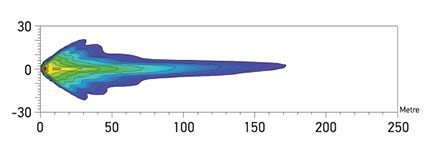

Low Beam Distance. Recorded with two lamps.
Low Beam Distance. Recorded with two lamps.

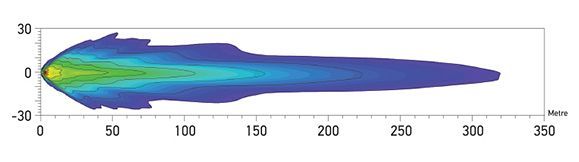

High Beam Distance. Recorded with two lamps.
High Beam Distance. Recorded with two lamps.

Documents

Document File Name File Size
  Instruction Sheet - 1058LED 1056LED.pdf 525.58 KB
  Aiming Sheet High-Low Beam Instructions A4.pdf 452.23 KB
