HELLA

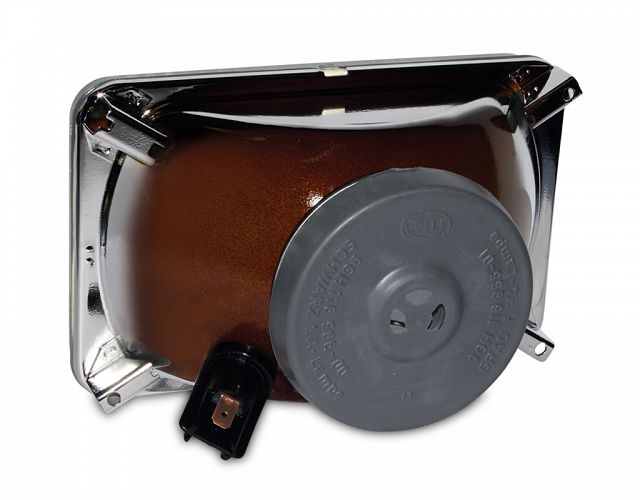

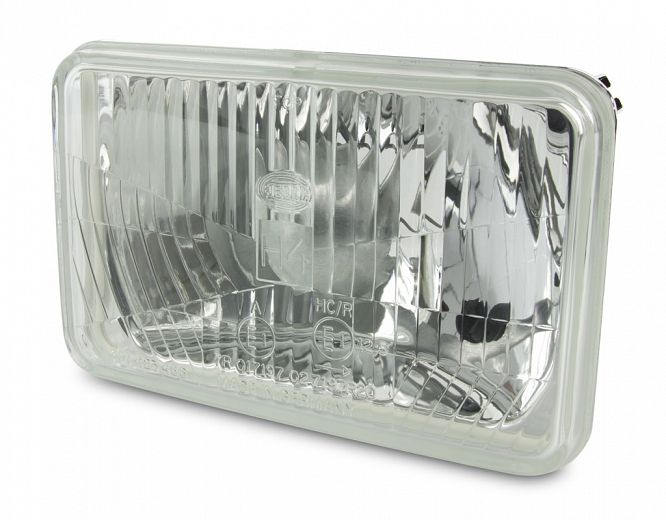

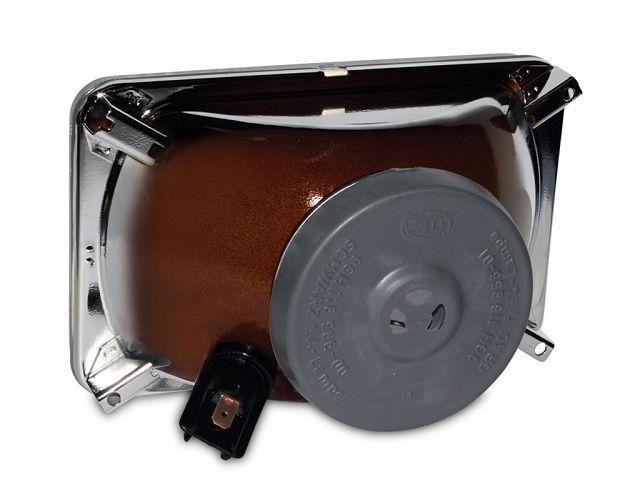

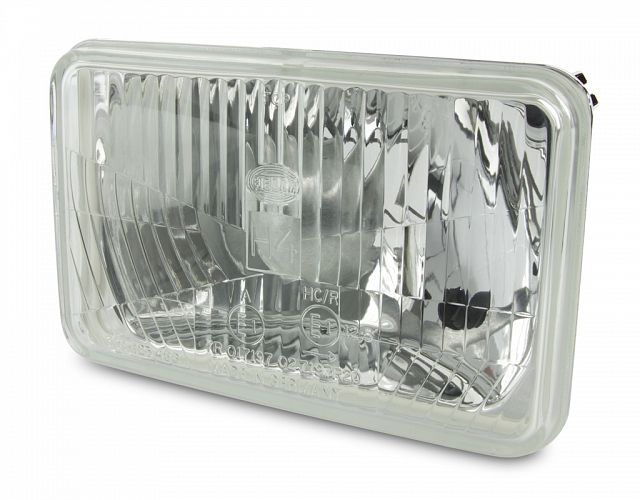

165 x 100mm H4 Halogen Headlamp - High/Low Beam & Front Position Insert

Semi-sealed headlamp and front position lamp with sealing boot.

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Options

165 x 100mm Semi Sealed Headlamp Insert - H4 Halogen High/Low Beam & Front Position

PART NO: 1LB 003 177-511
Legacy PN: 1044

Specifications

Bulbs to Suit

  12V 24V
Headlamp: XD1260/55 XD2475/70
Front position: HL124 HL244

Compliance

E1 7197

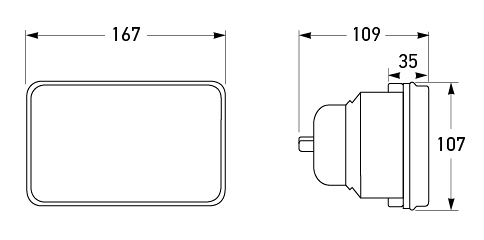

Outline

All dimensions in mm.
All dimensions in mm.
