SCANGRIP® UNIFORM LED Inspection Lamp

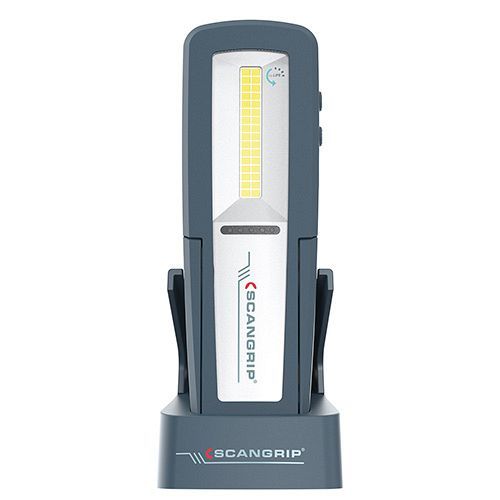

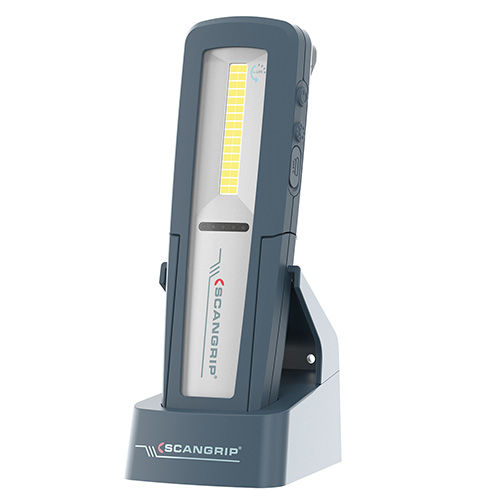

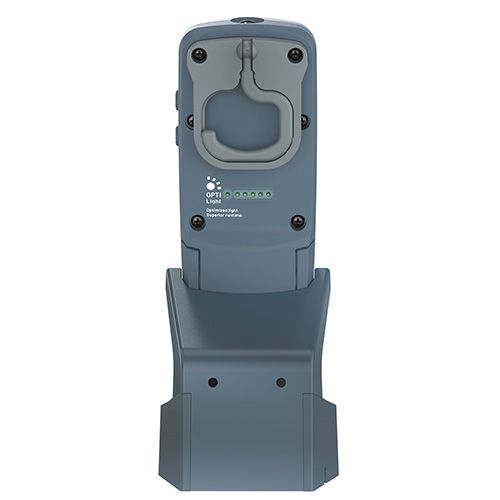

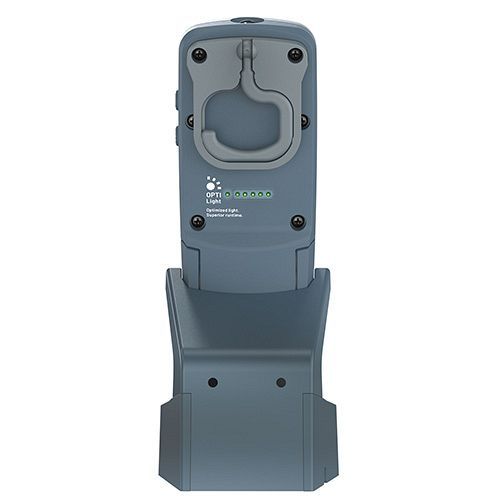

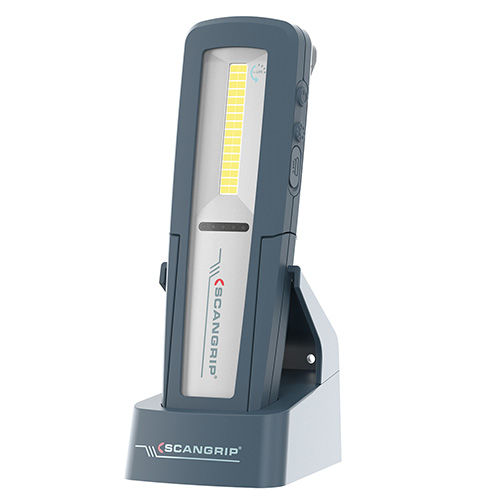

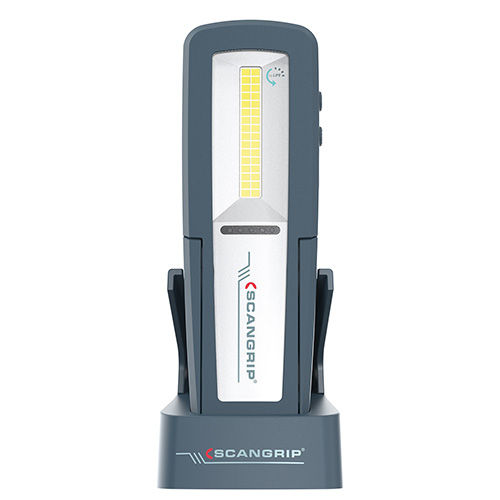

UNIFORM is a versatile and durable rechargeable LED work light designed for professional users, with both a convenient charging base and USB‑C port.

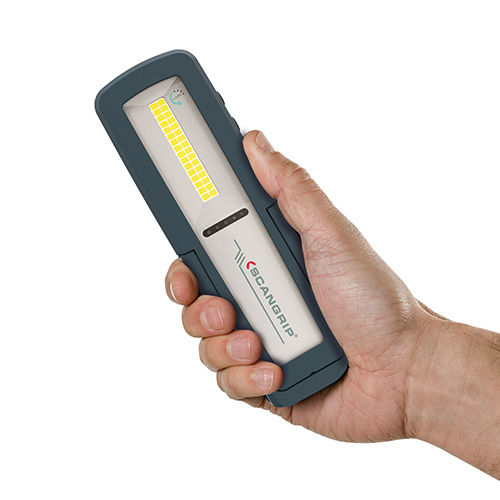

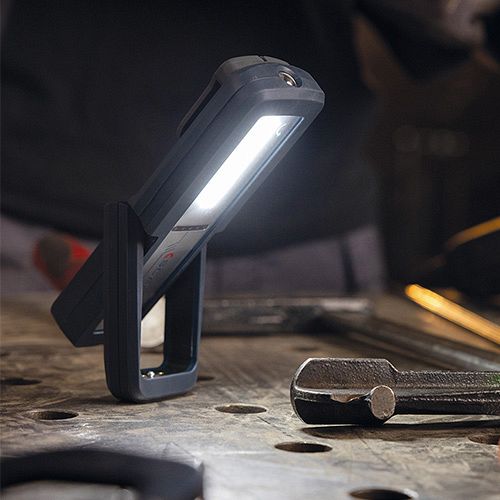

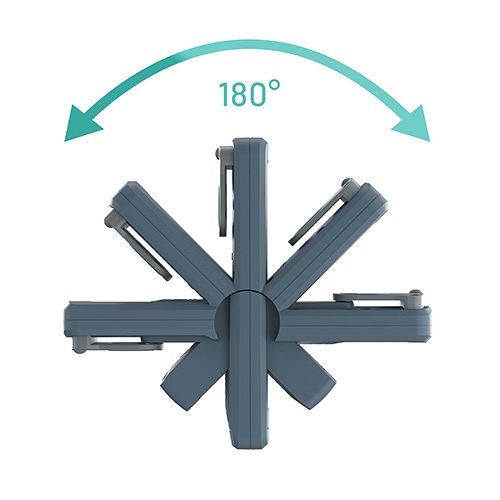

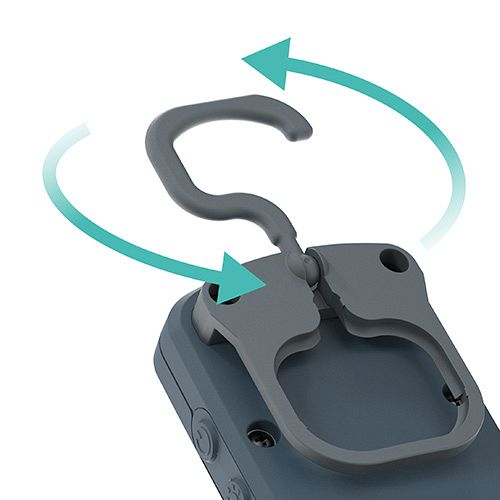

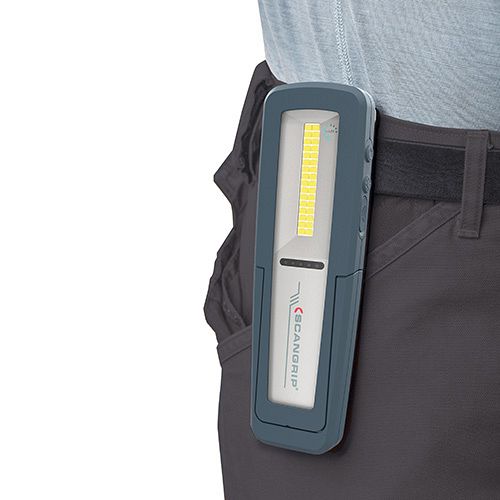

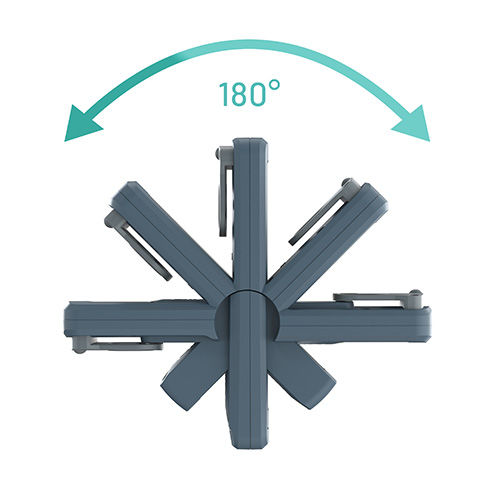

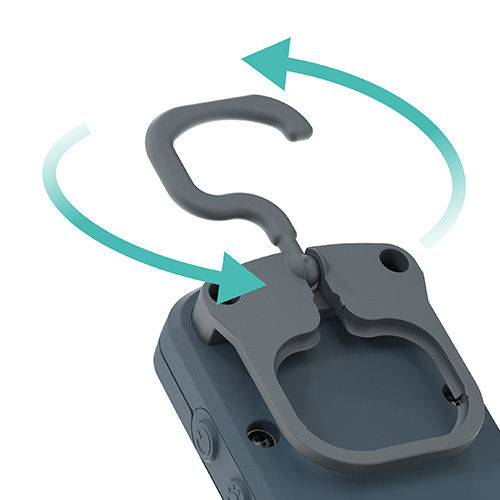

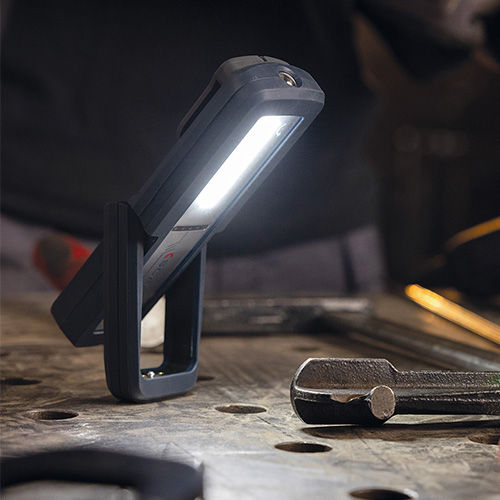

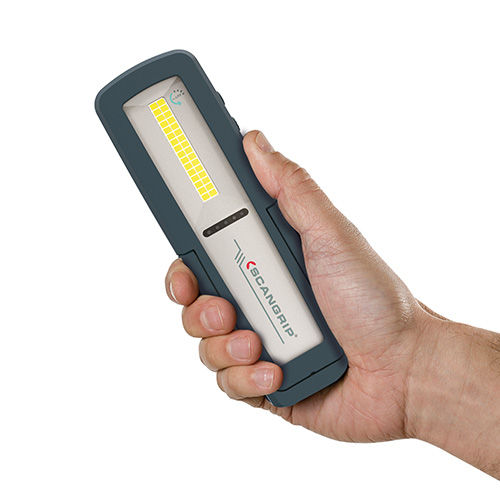

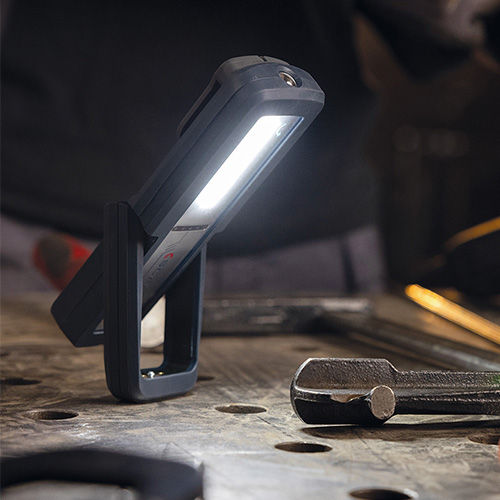

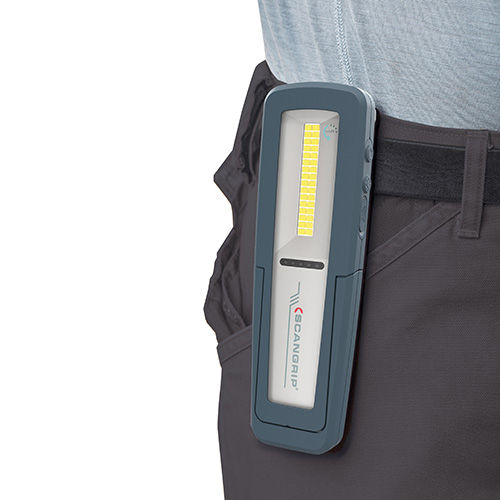

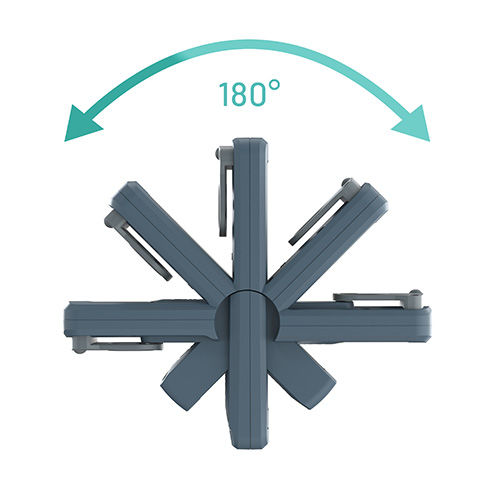

Designed to withstand tough work environments, the upgraded UNIFORM is water and dust (IP65) resistant, with warranty support increased from 3 to 5 years. It features a turnable hook, a convenient work belt clip, and strong built-in magnet, for flexible positioning during inspection work. The ergonomic grip and compact design make it light easy to handle, and the flexible head can tilt up to 180 degrees.

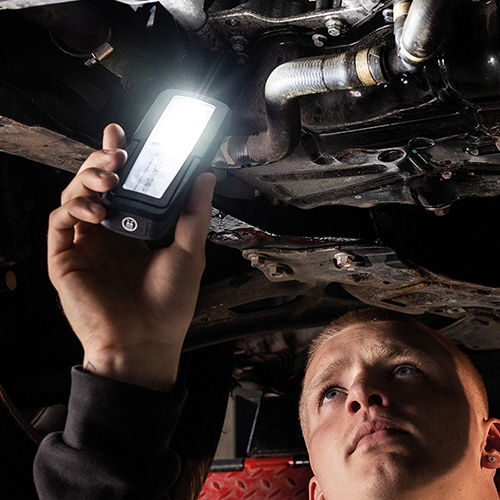

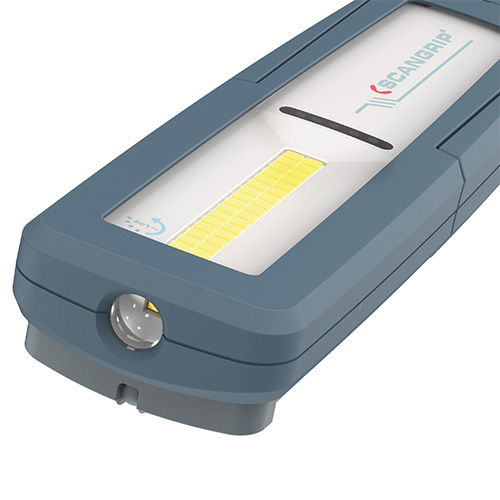

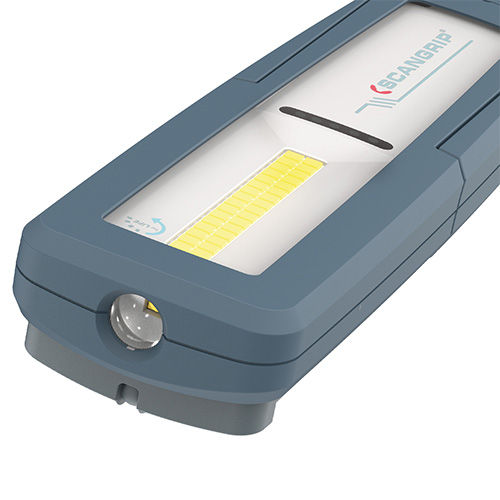

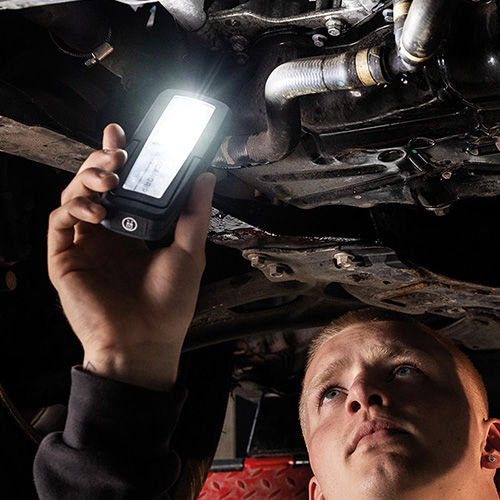

UNIFORM offers powerful, adjustable light output up to 500 lumens. The top light delivers a focused beam of 175 lumen, ideal for various inspection tasks.

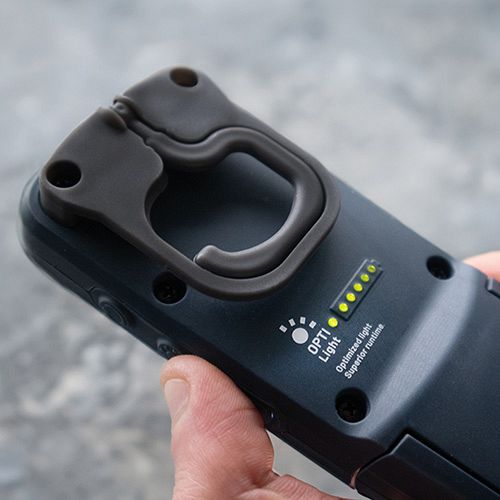

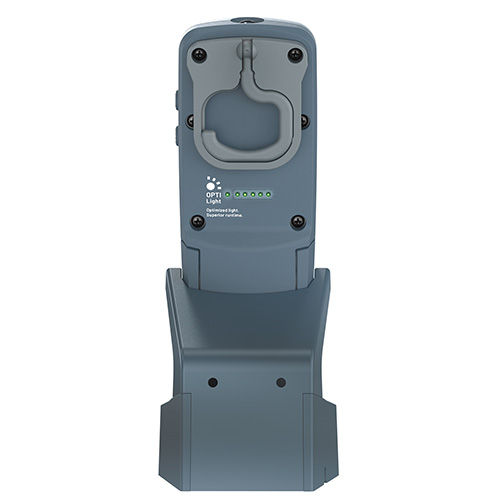

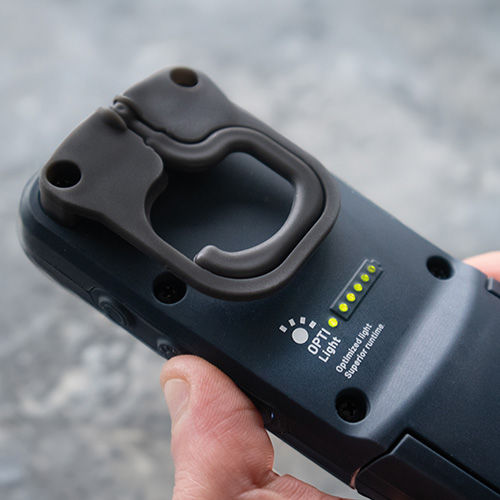

The OPTI Light setting delivers the required illuminance (LUX) in a typical work situation, ensuring optimised light and runtime with a simple touch.


This lamp replaces 035407 / 2XM 530 302-231 Uniform LED Inspection Lamp.

• 47% more efficient.
• Increased 5-year Warranty.
• Adjustable output up to 500 lumens.
• OPTI Light for increased runtime.
• Low current consumption, high efficacy.
• Dedicated charging base plus USB-C.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

Strong Built-in Magnet

Built-in Magnet

Strong Built-in Magnet

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

SCANGRIP UNIFORM Worklight

PART NO: 036208
Legacy PN: 2XM 530 302-586

Specifications

Light Output

Main: 50 lumen for 32 hrs. 500 lumen for 3hrs. OPTI Light mode: 4hrs.
Spot (top): 175 lumen for up to 3 hours.

Light Performance

Main: 475/950 lux @ 0.5m
Spot (top): 6000 lux @ 0.5m

Temperature Range

-10° to +40°C

Protection

IP65 (Protection against dust and water immersion)
IK07 Impact Protection to 2m

Dimensions

188mm x 60mm x 33 mm

Battery

3.7V / 2600 mAh Li-ion rechargeable.
3.5 hour charging time

Compliance

CE

This lamp replaces

035407 / 2XM 530 302-231 LED Inspection Lamp - Uniform
