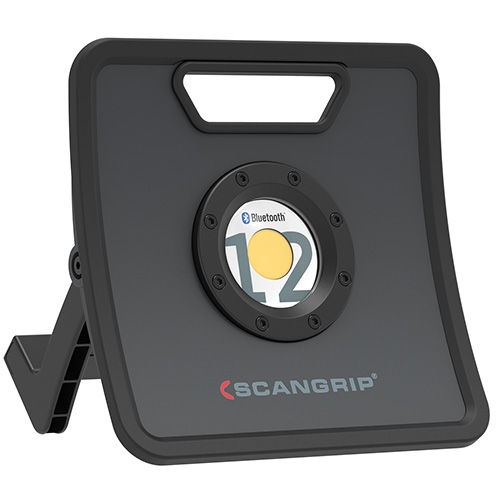

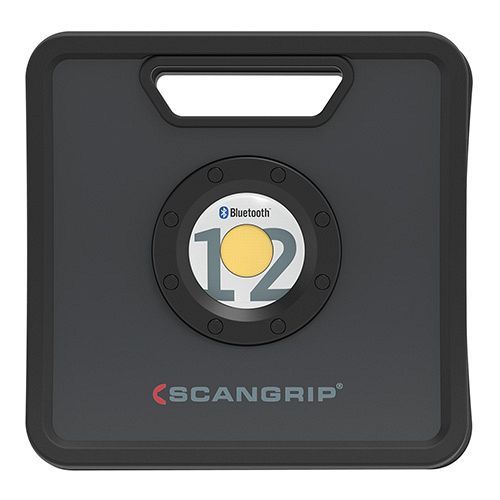

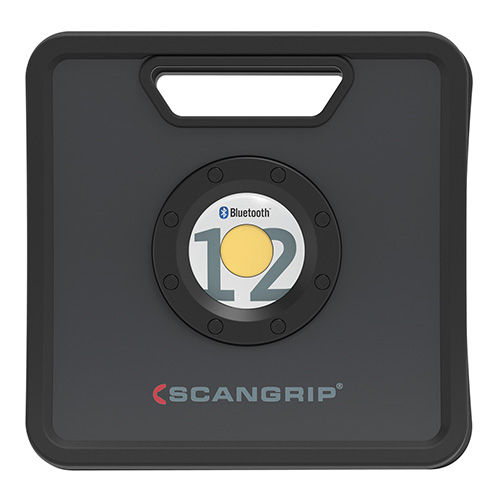

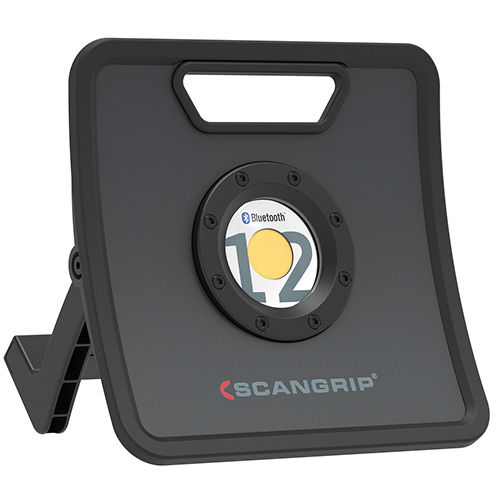

SCANGRIP® Nova 12K LED Work Lamp

The SCANGRIP® Nova 12K LED Work Lamp delivers exceptional light output and features wireless control, making it a universal all-round work lamp for the most challenging lighting operations.

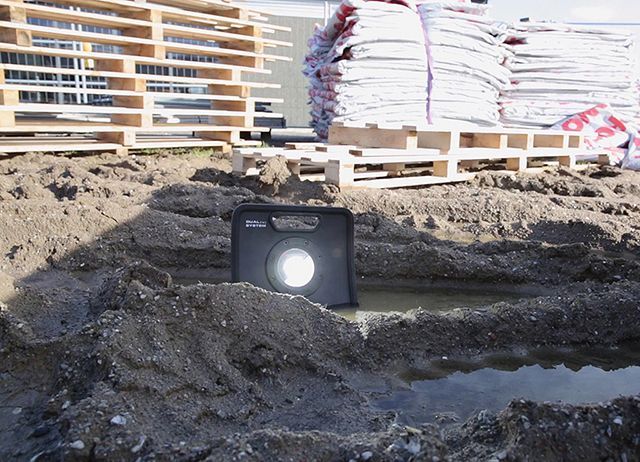

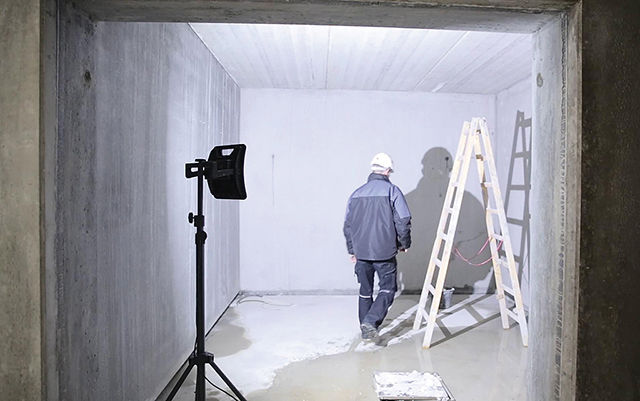

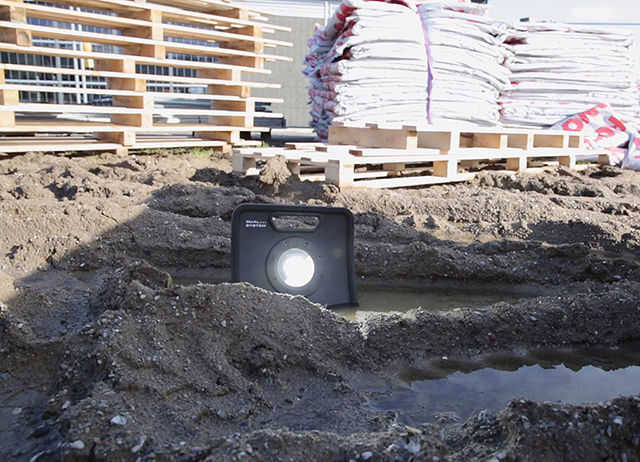

The latest LED technology produces 12,000 lumens of light, a high CRI value close to daylight, plus uniform and completely even illumination. The lamps robust housing makes it extremely sturdy and impact resistant so ideal for rough, wet and dirty environments. The Nova 12K is also sealed to IP67 so suitable for indoor or outdoor use in all-weather conditions.

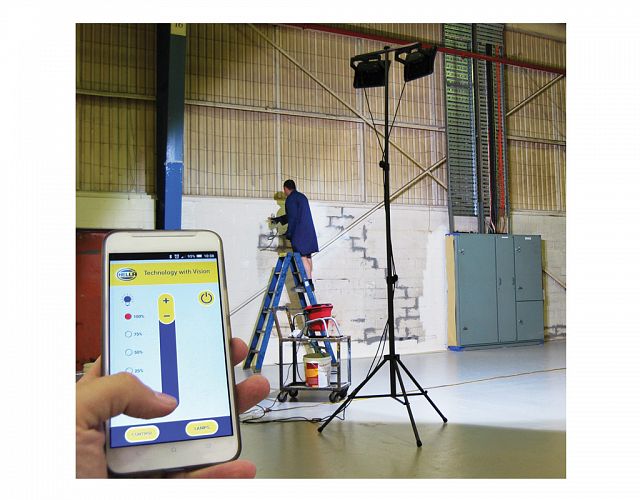

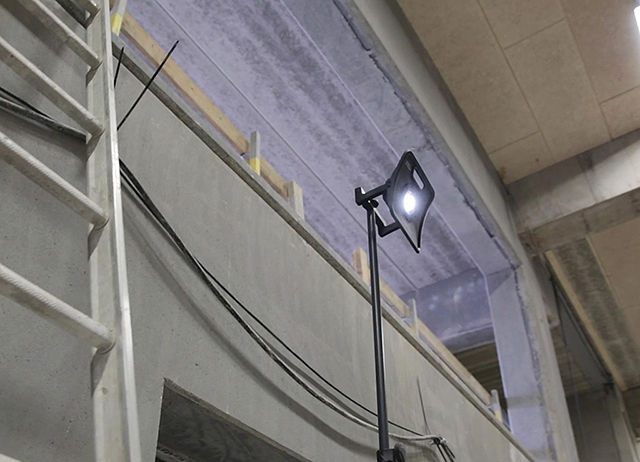

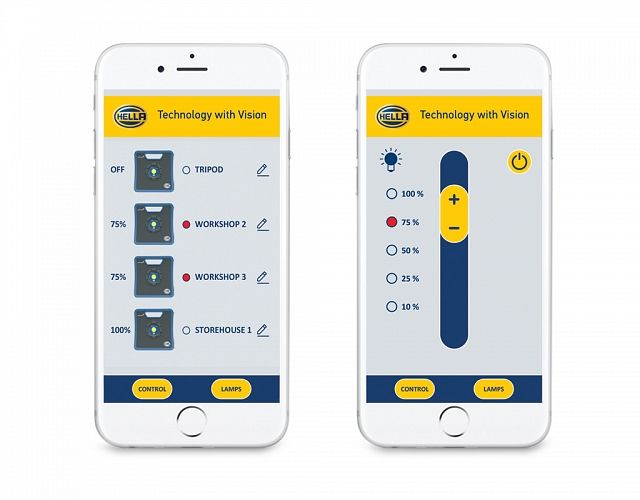

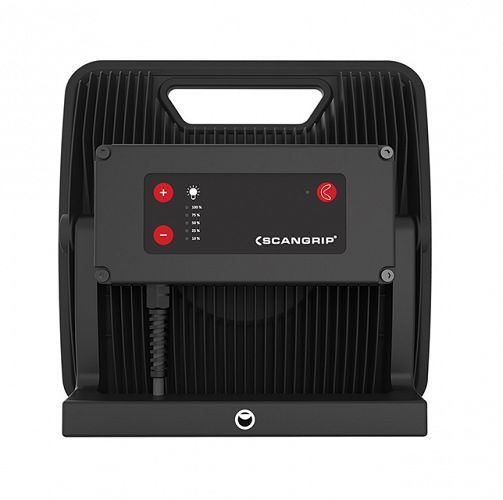

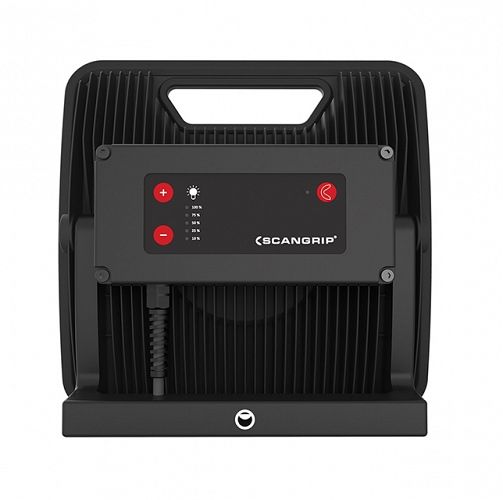

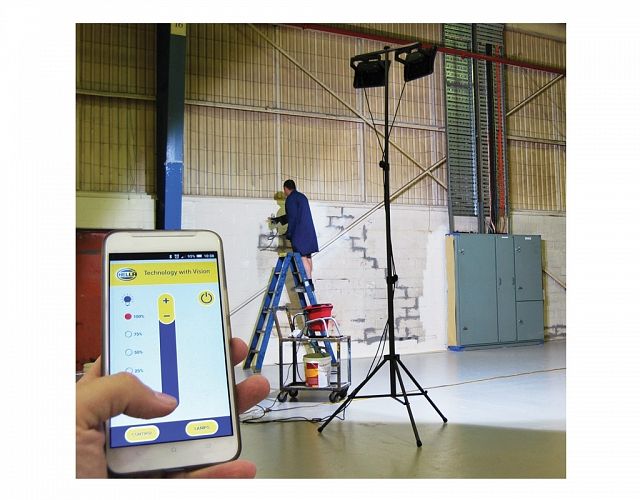

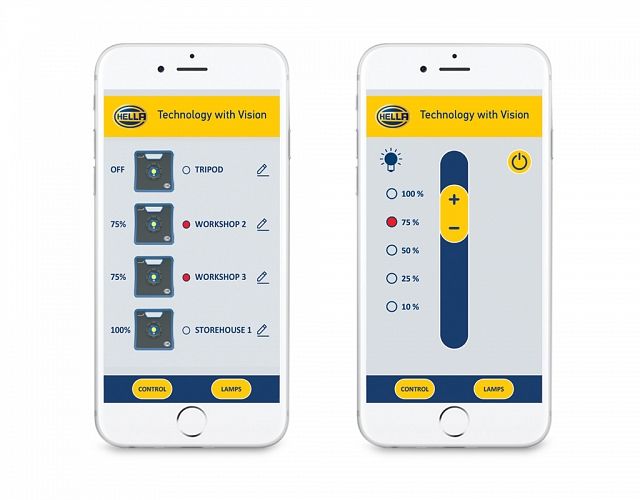

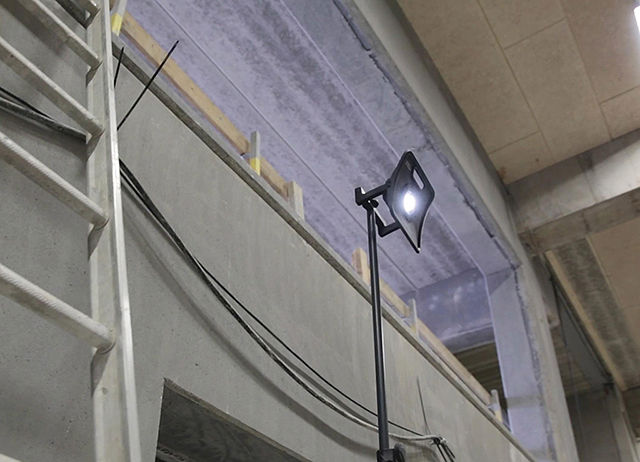

The new light dimmer function makes it possible to adjust the light into five different levels while an integrated wireless light control, via the mobile app, makes it possible to easily control up to four work lamps. You can turn the lamp on/off and adjust the light output to suit the work task in question. The wireless application is perfect when working with one or more hard-to-reach lamps, for example, when positioned on a HELLA Tripod.

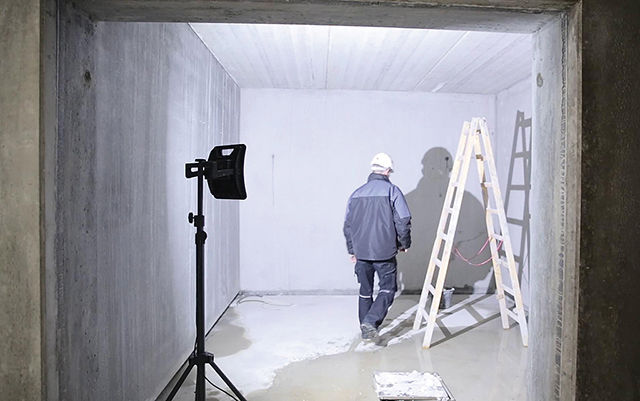

A complete range of accessories including Nova tripod, dual bracket, magnetic mount and scaffolding brackets increase versatility and make the Nova work lamps perfect for all working applications.

• Wireless control, on/off and dimmable
• 12,000 lumens of bright light
• Wide and even spread illumination
• Natural light – colour similar to daylight
• Low current consumption, high efficacy
• Strong, sturdy and resistant to water, oil and chemicals
• Integrated carry handle

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

2 Year Warranty

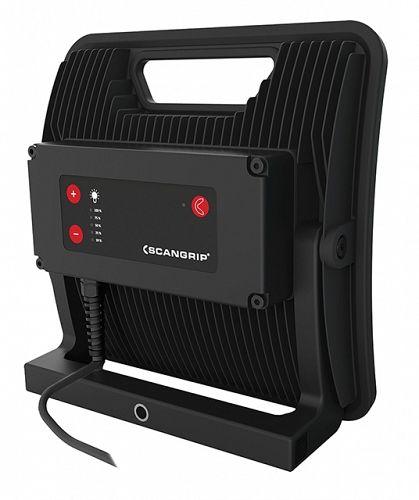

Light intensity is controlled through the lamp’s own internal circuitry via in-built buttons, an external DC power source and a standard switch. See specific lamp instructions for further information.

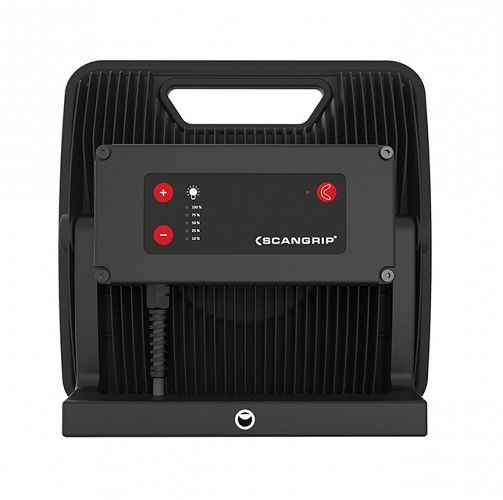

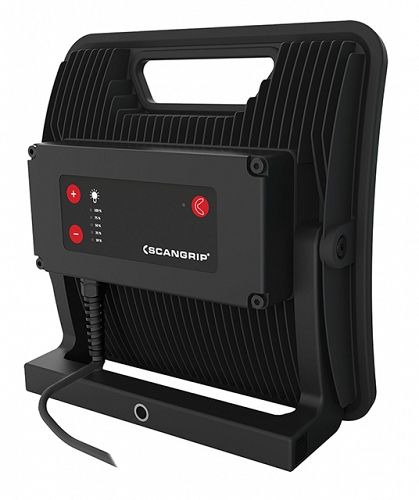

Dimmable Internal Dimmer

Light intensity is controlled through the lamp’s own internal circuitry via in-built buttons, an external DC power source and a standard switch. See specific lamp instructions for further information.

Options

SCANGRIP® Nova 12K

PART NO: 035444AU
Legacy PN: 2XM 530 302-227

Specifications

Voltage

100-240V AC - 50/60Hz

Light Output

12000 lumen @ 100% 9000 lumen @ 75% 6000 lumen @ 50%
3000 lumen @ 25% 1200 lumen @ 10%

Light Performance

18000 lux @ 0.5m

Power Consumption

86W

Temperature Range

-10°C to +40°C

Protection

IP 67 (Protection against dust and water splash)

Cable Length

Pre-wired with 5m of cable (3x1 mm2 H05RN-F)

Accessories

035431 SCANGRIP tripod
035308 Dual mount bracket
035391 Magnetic mount bracket
035341 Scaffolding mount bracket

Compliance

CE

Note

Includes wireless light control: *via iOS and/or android mobile devices.

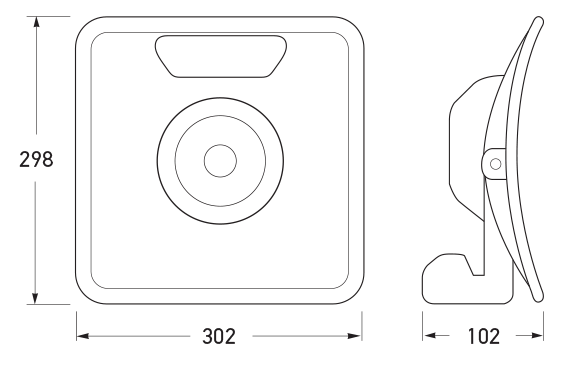

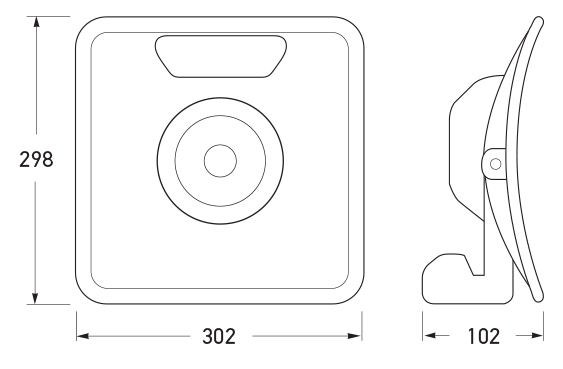

Outline

All dimensions in mm
All dimensions in mm
