SCANGRIP® CONNECT Tower 5 Work Lamp

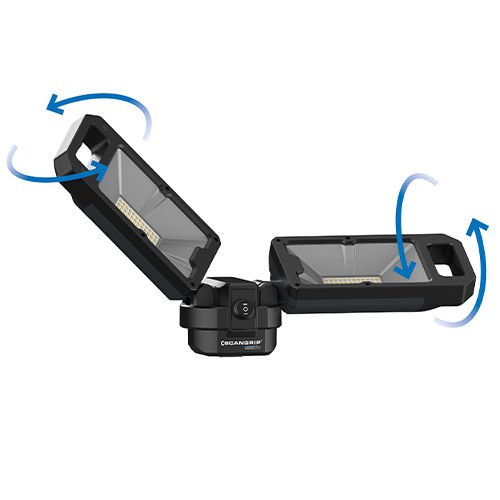

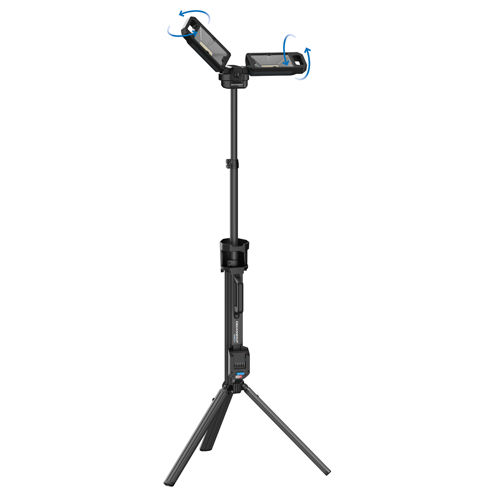

The TOWER 5 CONNECT is a highly flexible, compact pair of floodlights. Independent 360° adjustment and 2 level light output to deliver perfect lighting conditions for painting and installation work. The integrated tripod and carry handle make the lightweight (5.2kg), quick-fold system extremely compact and portable. Extendible up to 2 metres, the TOWER 5 CONNECT collapses to under 900mm.

Choose your matching CONNECTOR and GO!

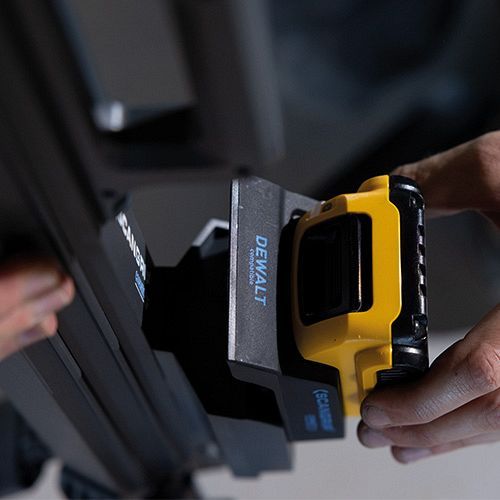

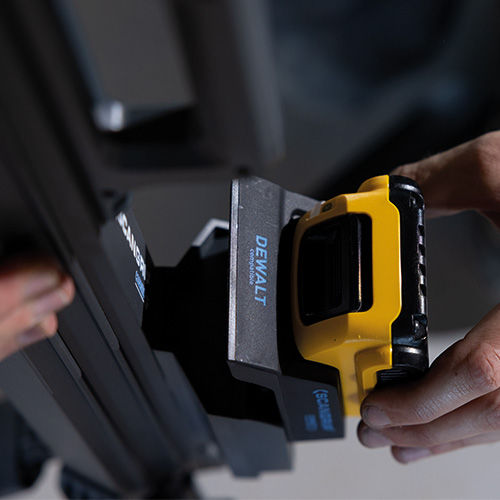

Select the SCANGRIP CONNECT work light that fits your needs, attach the CONNECTOR for your preferred battery brand, connect your battery, and you are ready to work! A built-in Battery Safety System ensures both correct operation of the battery and protects the battery pack in use.

• 18V battery pack compatible
• Up to 5000 lumen
• Extends up to 2 metres
• Collapses to under 900mm

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

2 Year Warranty

Dual Intensity Switch Control

Light intensity can be switched between 100% and a lower level factory pre-set value, usually via an additional cable input supplied with the lamp using a positive feed from the DC power supply within the lamps operating voltage range.

Options

SCANGRIP CONNECT TOWER 5 Work Lamp

PART NO: 036105C

Add to favourites

SCANGRIP CONNECTOR for DEWALT 18V battery packs

PART NO: 036142C

Add to favourites

SCANGRIP CONNECTOR for MAKITA 18V battery packs

PART NO: 036148C

Add to favourites

SCANGRIP CONNECTOR for MILWAUKEE 18V battery packs

PART NO: 036149C

Add to favourites

SCANGRIP CONNECTOR for BOSCH 18V battery packs

PART NO: 036140C

Add to favourites

SCANGRIP CONNECTOR for BOSCH GREEN 18V battery packs

PART NO: 036141C

Add to favourites

SCANGRIP CONNECTOR for HIKOKI 18V battery packs

PART NO: 036147C

Add to favourites

Specifications

Light Output	HI - 5000 lumen up to 2 hours* LO - 2500 lumen up to 4.5 hours* *(When connected to an 18V 5.2 Ah battery)
Light Performance	HI - 8000 lux @ 0.5m LO - 4000 lux @ 0.5m
Temperature Range	-10°C to +40°C
Protection	IP30
Dimensions	121 x 153 x 892mm
Weight	5.2 kg
Battery Options	Compatible with Dewalt, Makita, Milwaukee, Bosch, Bosch Green, and Hikoki 18V battery packs via matching CONNECT adaptor, or directly connect METABO / CAS battery
Features	Collapsible Tower Work light, 360° light adjustment, Extends up to 2 metres, Collapses to under 900mm.
Compliance
