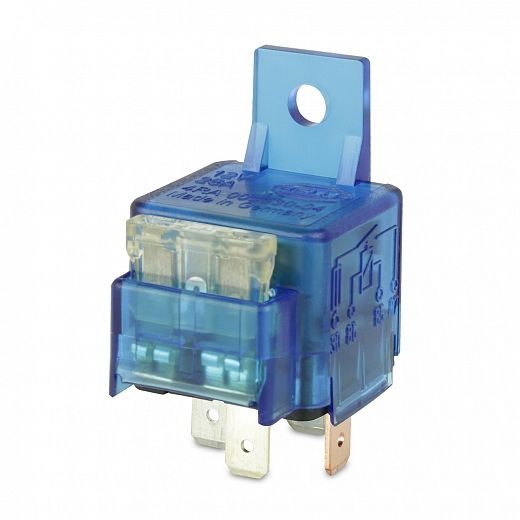

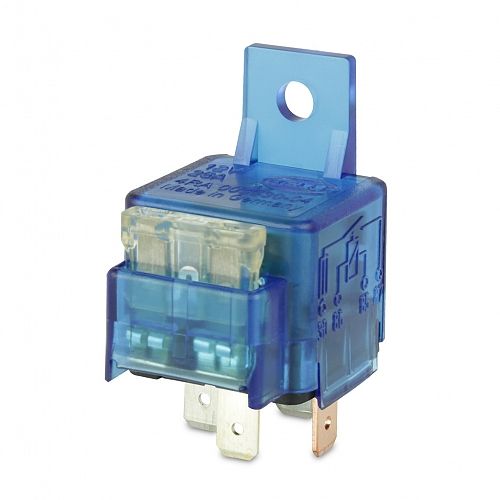

12V 4 Pin Normally Open Mini Relay - 25A - Fused
Trust in our Quality Relays
Production expertise: HELLA produces more than 100 million relays per year. Thanks to optimised production we can offer a competitive price for customers. HELLA relays have an extremely low failure rate.
OEM customers: HELLA develops and produces relays for AGCO, Claas, Daimler AG, Ford, VW, GM, JCB, Opel, Nissan, John Deere, Chrysler and Jaguar/Land Rover among others. We have been working with many customers for decades.
To find a HELLA reseller near you, click here.
Rollover/tap the icons below for further details:
Specifications
Voltage |
12V |
||||||||||
Pins |
4 Pin |
||||||||||
Function |
Normally Open |
||||||||||
Protection |
25A Fuse |
||||||||||
Pin Designations |
|
||||||||||
Maximum Load |
25A |
||||||||||
Current Draw |
140mA |
||||||||||
Bracket |
Yes |

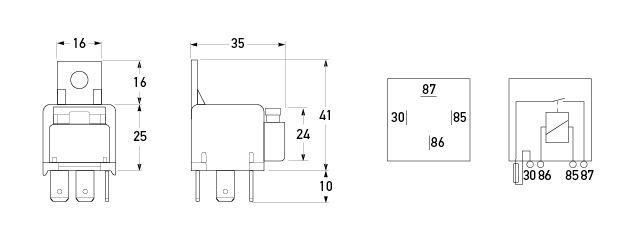

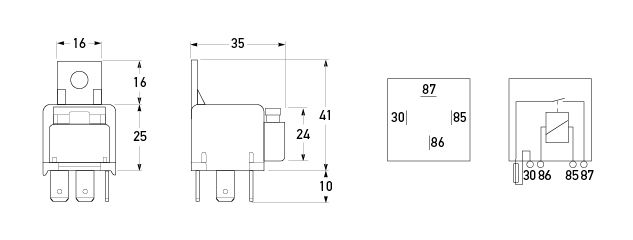

Outline
All dimensions in mm.
