24V 4 Pin Normally Open High Capacity Relay

Trust in our Quality Relays

Production expertise: HELLA produces more than 100 million relays per year. Thanks to optimised production we can offer a competitive price for customers. HELLA relays have an extremely low failure rate.

OEM customers: HELLA develops and produces relays for AGCO, Claas, Daimler AG, Ford, VW, GM, JCB, Opel, Nissan, John Deere, Chrysler and Jaguar/Land Rover among others. We have been working with many customers for decades.

To find a HELLA reseller near you, click here.

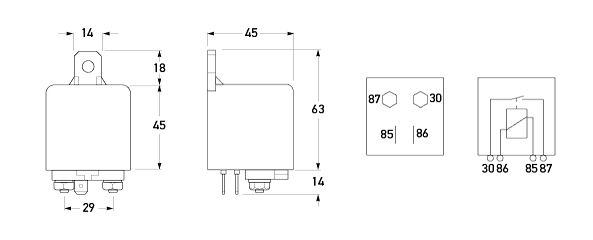

All dimensions in mm.

Rollover/tap the icons below for further details:

Options

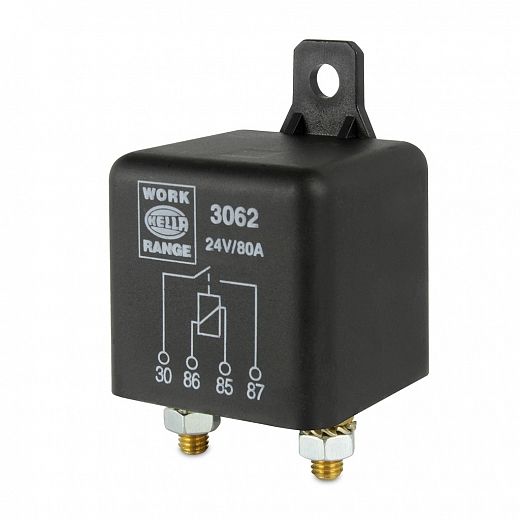

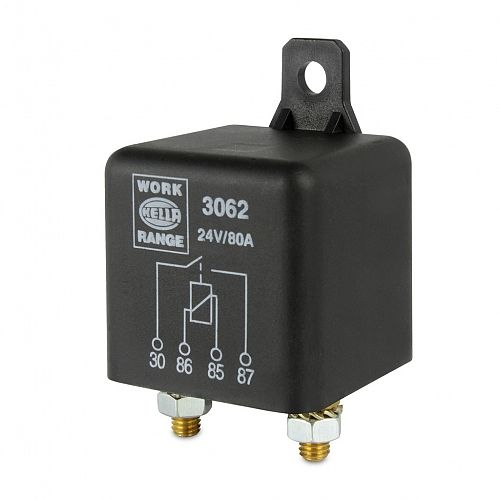

24V 4 Pin Normally Open High Capacity Relay - 80A

PART NO: 4RA 905 330-281
Legacy PN: 3062

Add to favourites

Specifications

Voltage

24V

Pins

4 Pin

Function

Normally Open

Pin Designations

Terminal Number	Connect to
85/2	Earth (end of winding to ground or negative).
86/1	Positive.
87/5	Output (to consumer e.g. driving lamp).
30/3	Positive supply (Input from + battery terminal, direct).
