12V 4 Pin Normally Open High Capacity Relay - 60A

Trust in our Quality Relays

Production expertise: HELLA produces more than 100 million relays per year. Thanks to optimised production we can offer a competitive price for customers. HELLA relays have an extremely low failure rate.

OEM customers: HELLA develops and produces relays for AGCO, Claas, Daimler AG, Ford, VW, GM, JCB, Opel, Nissan, John Deere, Chrysler and Jaguar/Land Rover among others. We have been working with many customers for decades.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

12V 4 Pin Normally Open High Capacity Relay - 60A

PART NO: 4RA 003 437-082
Legacy PN: 3084

Specifications

Voltage

12V

Pins

4 Pin

Function

Normally Open

Pin Designations

Terminal Number Connect to
85/2 Earth (end of winding to ground or negative).
86/1 Positive.
87/5 Output (to consumer e.g. driving lamp).
30/3 Positive supply (Input from + battery terminal, direct).

Maximum Load

60A

Current Draw

140mA

Bracket

Yes

Note

Terminals 30 and 87 are 9.5mm terminals

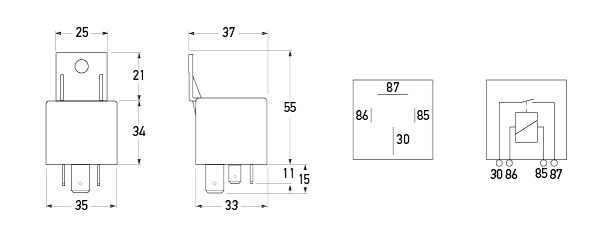

Outline

All dimensions in mm.
All dimensions in mm.
