LED Wide Rim Rectangular Courtesy Lamp - Multivolt™

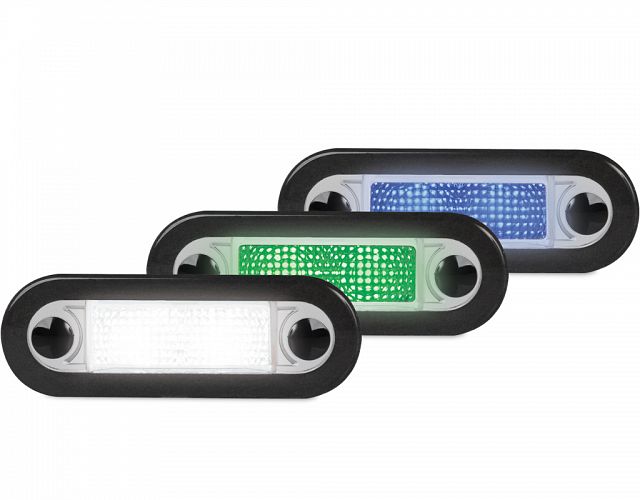

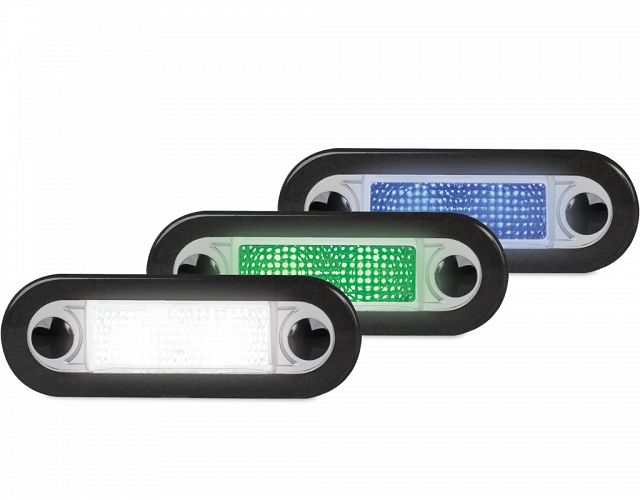

Wide rim recess mount courtesy lamp with either white, green or blue LEDs.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.



Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

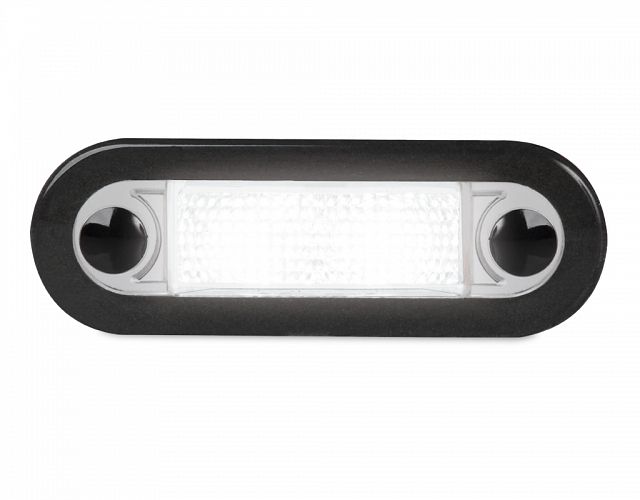

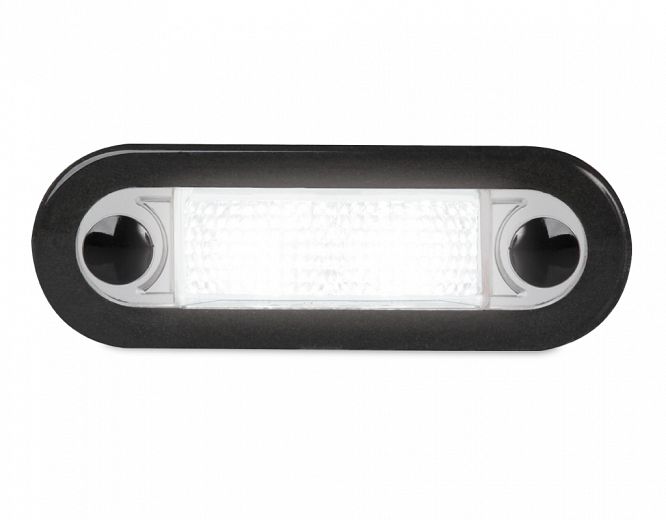

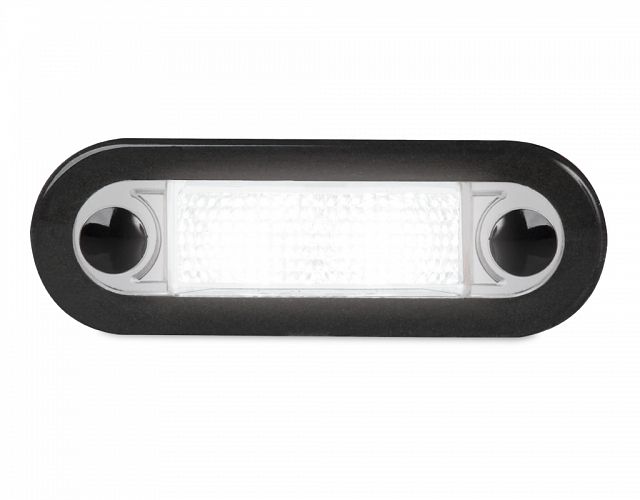

LED Wide Rim Rectangular Courtesy Lamp - White Light - Clear Lens

PART NO: 2XT 959 510-802
Legacy PN: 95951080

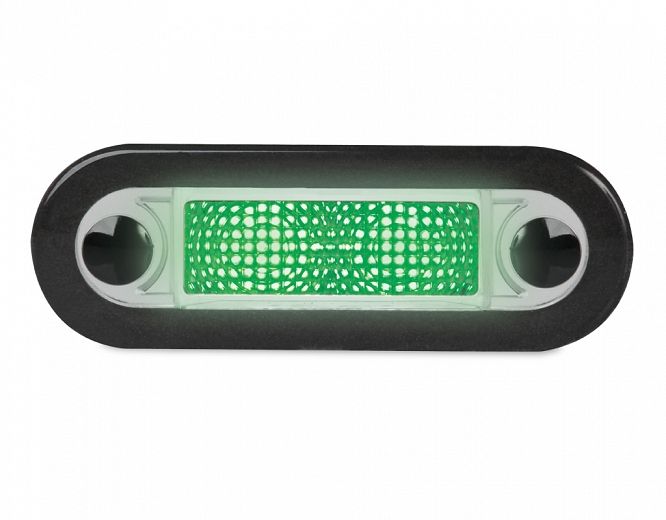

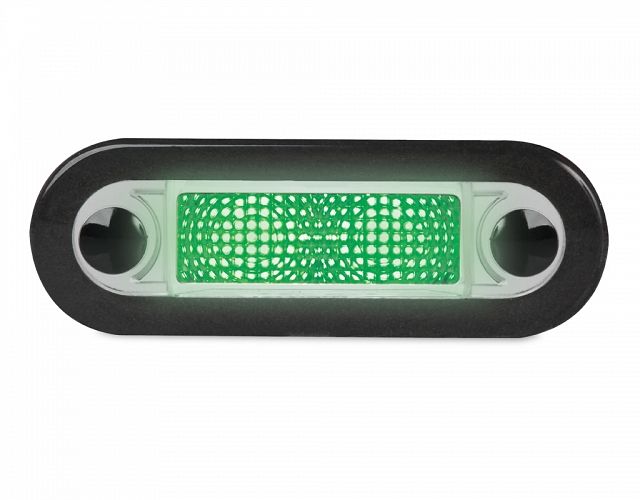

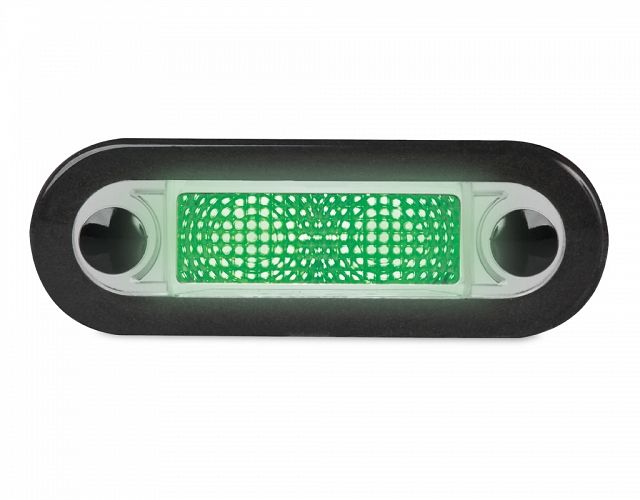

LED Wide Rim Rectangular Courtesy Lamp - Green Light - Clear Lens

PART NO: 2XT 959 510-952
Legacy PN: 95951095

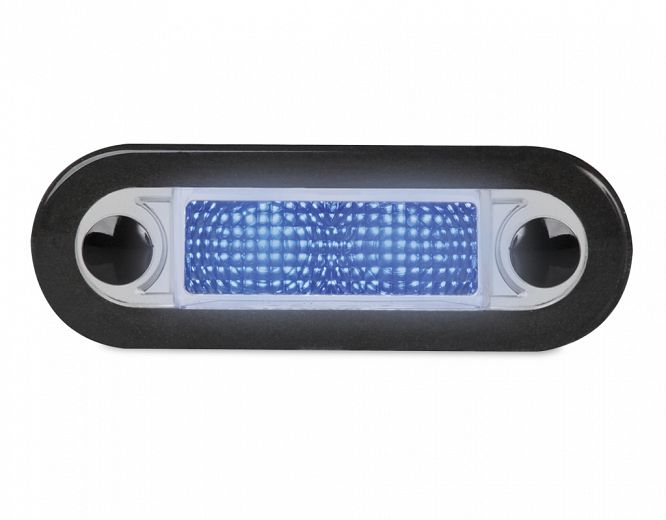

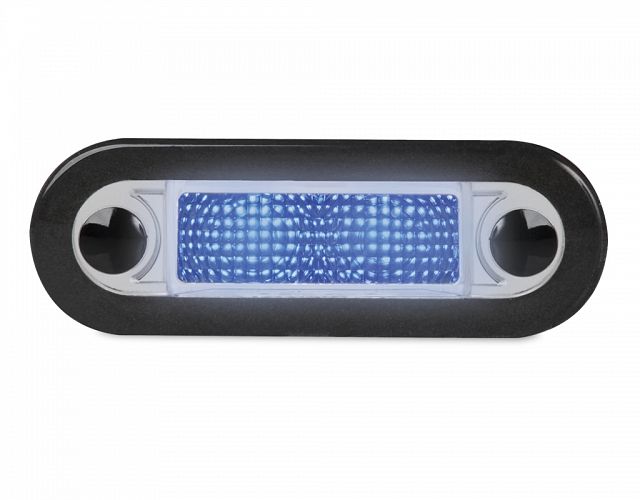

LED Wide Rim Rectangular Courtesy Lamp - Blue Light - Clear Lens

PART NO: 2XT 959 510-652
Legacy PN: 95951065

Specifications

Optics

Optic appears clear until illuminated.

Mounting

Recess mount

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K6 (Protection against dust and high-pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 120mm of cable.

Compliance

CE CE

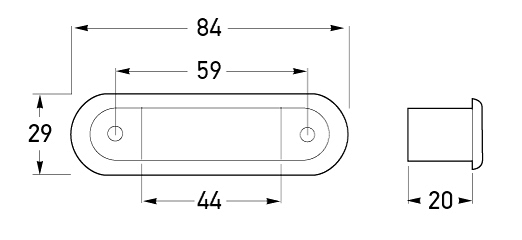

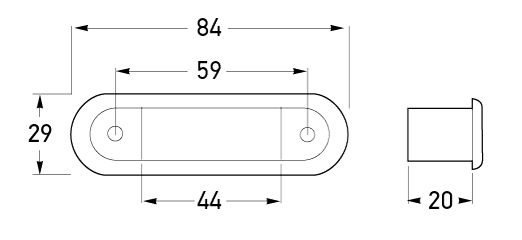

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  959510XX Wide Rim Instruction Sheet.pdf 306.74 KB
