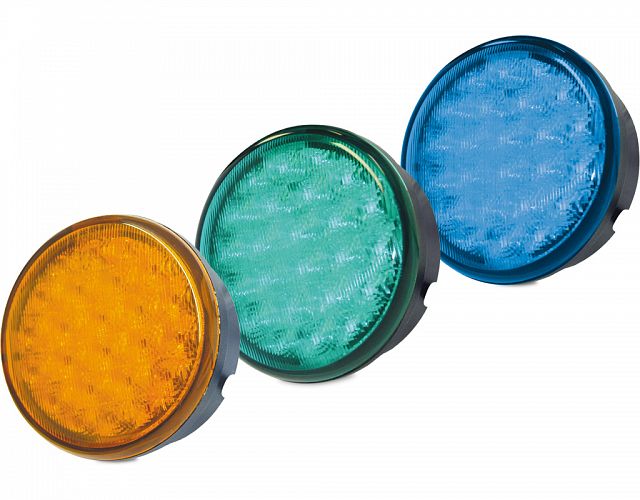

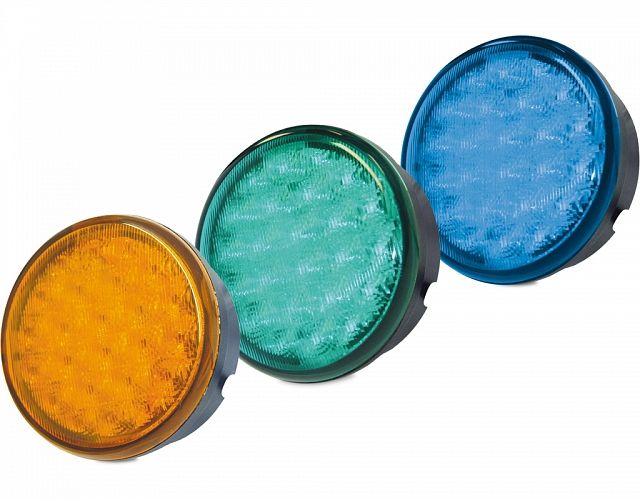

Pebble LED Signal Lamp

83mm diameter round LED signal lamp with single bolt mount for emergency vehicles.

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

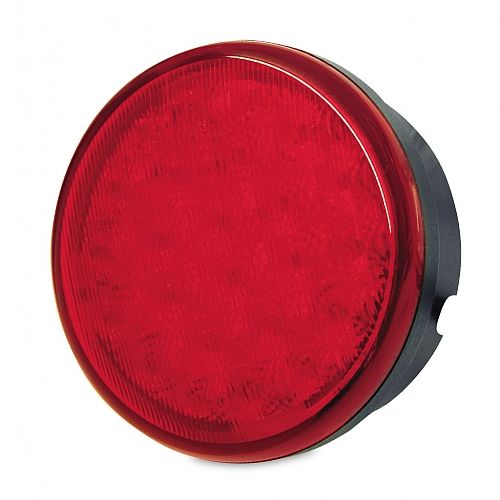

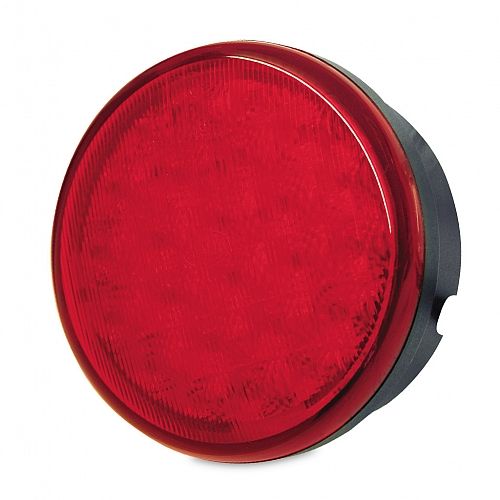

Pebble LED Signal Lamp - Red

Pebble LED Signal Lamp - Red

PART NO: 2XD 959 010-021

Add to favourites
Pebble LED Signal Lamp - Red - Bulk Pack 10

Pebble LED Signal Lamp - Red - Bulk Pack 10

PART NO: 2XD 959 010-027

Add to favourites

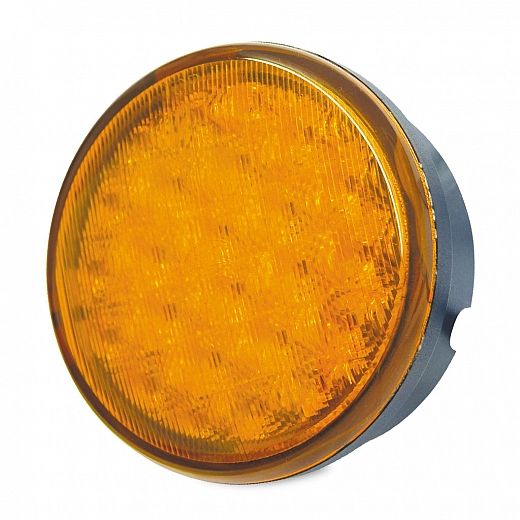

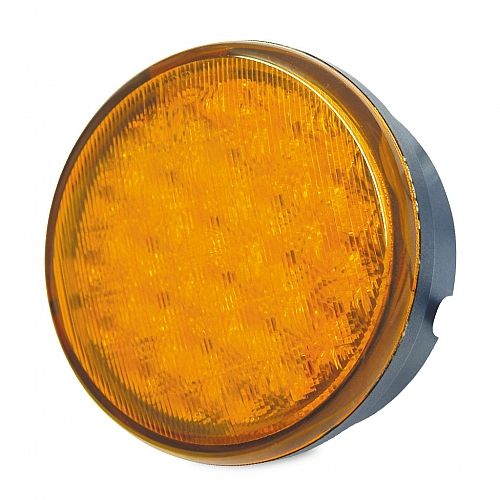

Pebble LED Signal Lamp - Amber

Pebble LED Signal Lamp - Amber

PART NO: 2XD 959 011-021

Add to favourites
Pebble LED Signal Lamp - Amber - Bulk Pack 10

Pebble LED Signal Lamp - Amber - Bulk Pack 10

PART NO: 2XD 959 011-027

Add to favourites

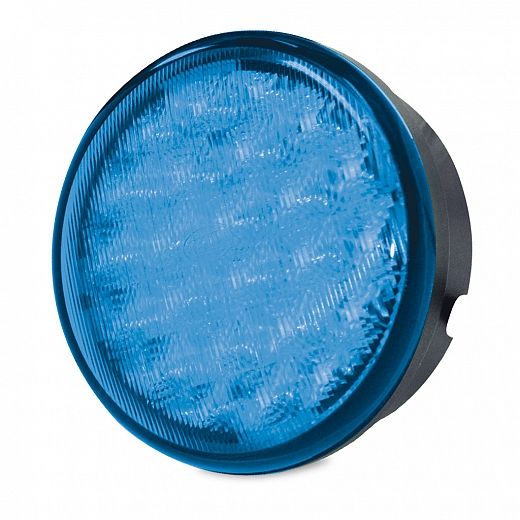

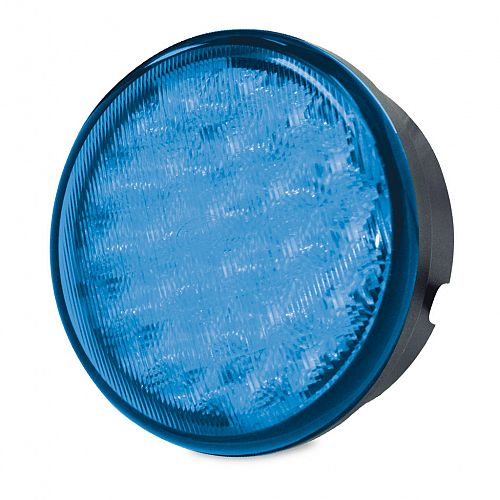

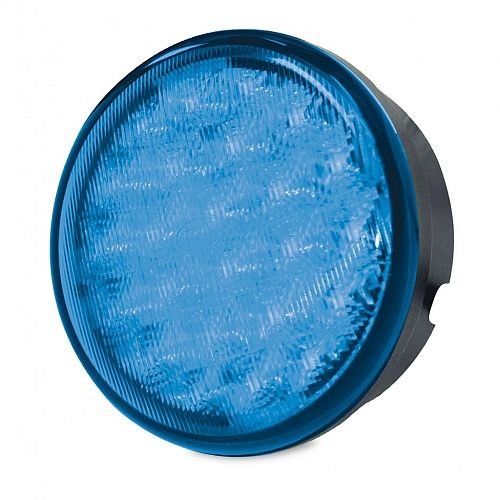

Pebble LED Signal Lamp - Blue

Pebble LED Signal Lamp - Blue

PART NO: 2XD 959 010-711

Add to favourites

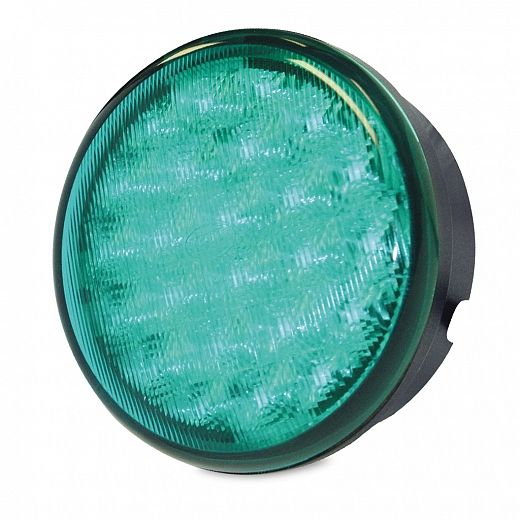

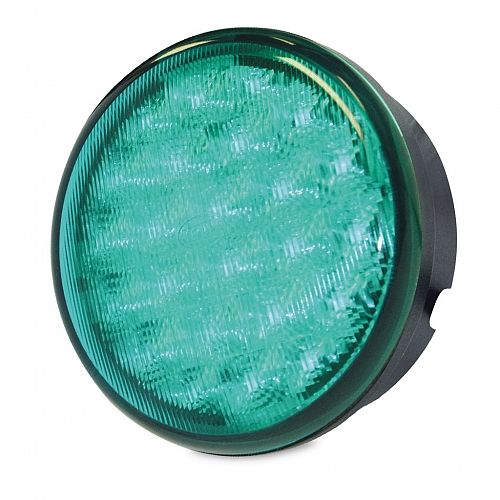

Pebble LED Signal Lamp - Green

Pebble LED Signal Lamp - Green

PART NO: 2XD 959 010-721

Add to favourites
Pebble LED Signal Lamp - Green - Bulk Pack 10

Pebble LED Signal Lamp - Green - Bulk Pack 10

PART NO: 2XD 959 010-727

Add to favourites

Specifications

Mounting

Single bolt 1/4" stainless UNC thread. Nut and washer supplied.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

6W

Protection
Reverse polarity and transient spike circuit protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Mens Material

PMMA

Approval Markings
E4 10R 04-2741

Note

These lamps are not ECE compliant

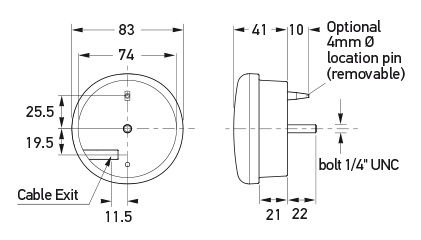

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2XD 959 01x-xx Instruction Sheet.pdf 330.29 KB
