HELLA

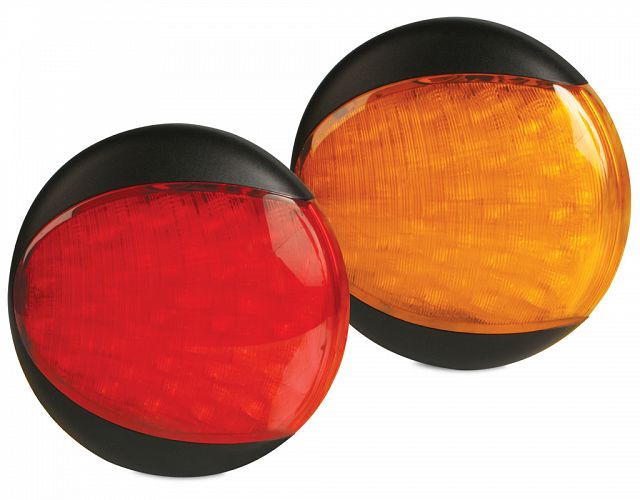

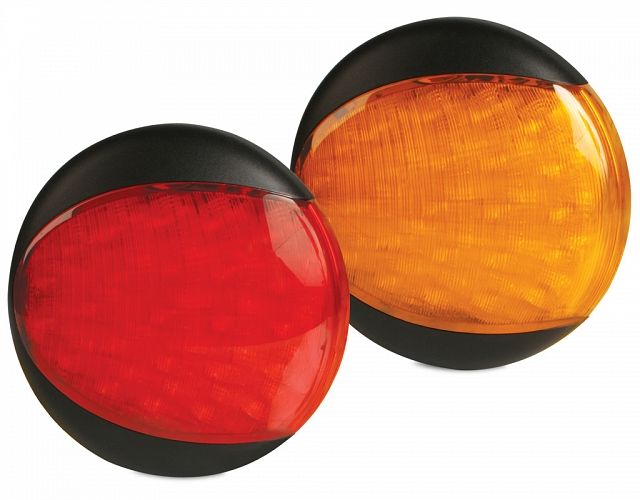

EuroLED® Signal Lamp - 24 Volt

Low profile signal warning 24 LED lamp featuring Ultra Wide Visibility Optic for significantly improved side visibility.

Features RFCommSafe™
To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

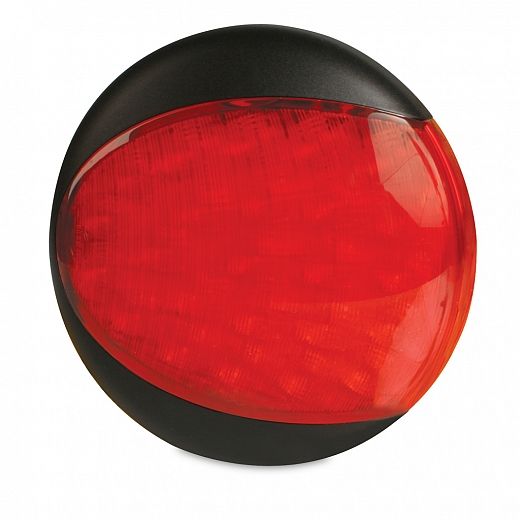

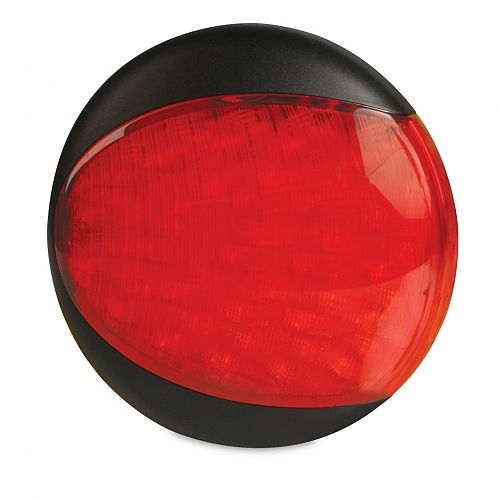

EuroLED® Signal Lamp - 24 Volt - Red

PART NO: 2XD 959 020-811

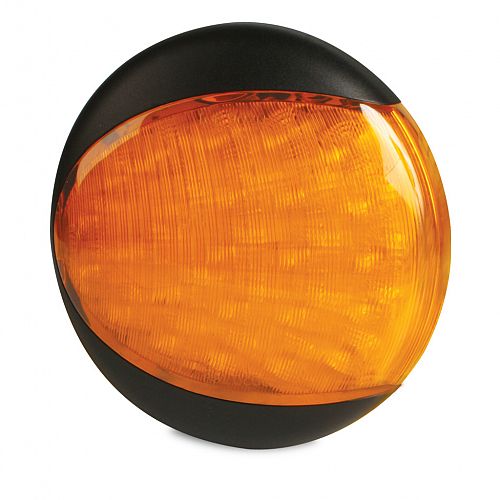

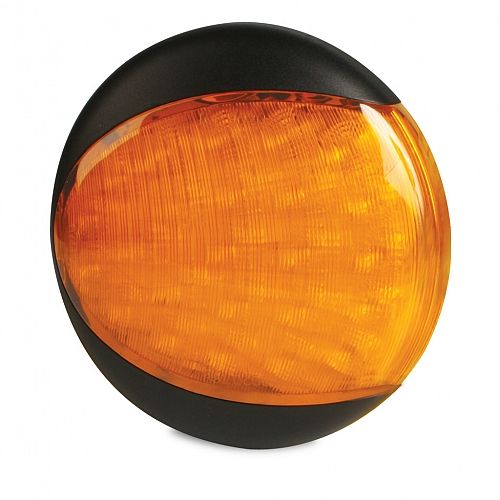

EuroLED® Signal Lamp - 24 Volt - Amber

PART NO: 2XD 959 021-811

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.

Voltage

24V DC

Power Consumption

5W

Protection

Reverse polarity and Transient Spike Circuit protection.
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

PMMA

Approval Markings

E4 10R 04-2896

Note

These lamps are not ECE compliant.

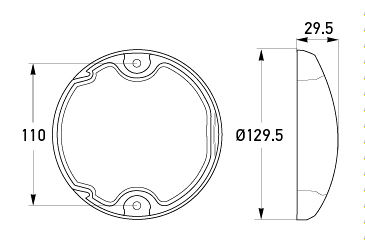

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2XD 959 020-81x _2XD 959 021-81x_Instr_EuroLED_130_Mount.pdf 464.89 KB
