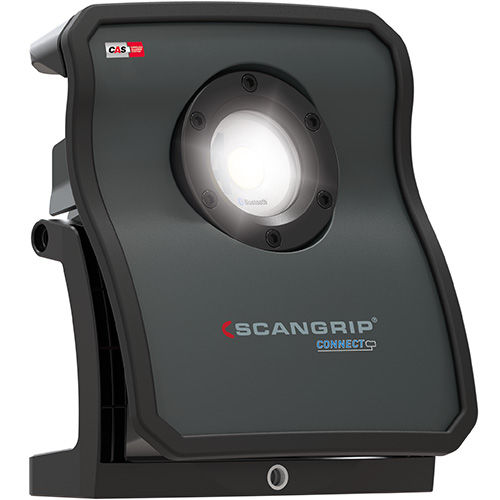

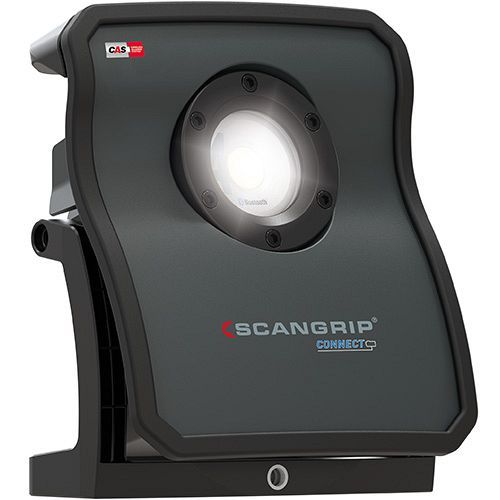

SCANGRIP® CONNECT NOVA 4 Work Lamp

SCANGRIP CONNECT NOVA 4 lamps delivers up to 4000 lumen, with 5 levels of illumination, and a clear display of battery capacity and lumen output. These work lamps are compatible with 18V battery packs from leading power tool brands, using the innovative SCANGRIP CONNECTOR, and are directly compatible with the METABO/CAS battery system.

SCANGRIP CONNECT NOVA housings are sturdy die-cast aluminium and are resistant to strikes, shocks and vibrations, making them perfect for demanding, rough working environments. All models feature a built‑in Powerbank with USB outlet to charge mobile devices.

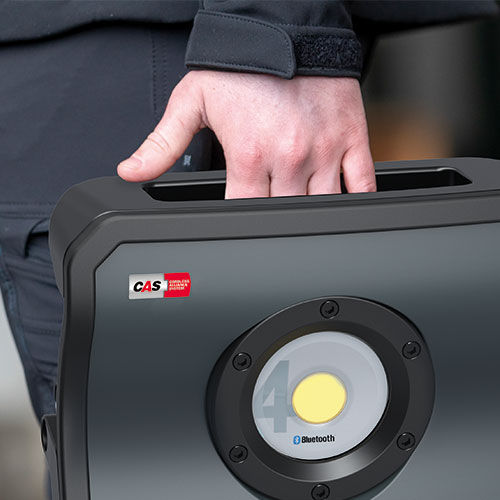

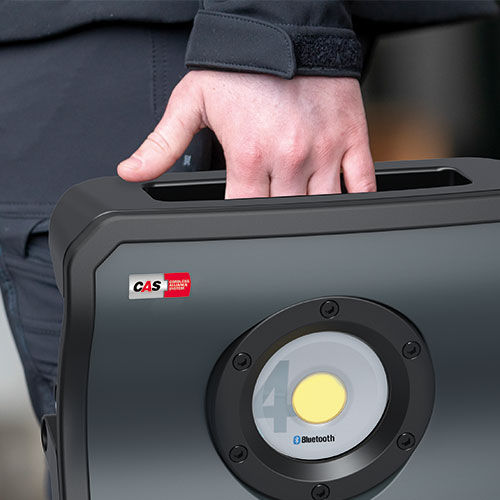

The CONNECT NOVA 4 features an integrated carry handle, built-in battery backup, a Bluetooth app for remote control of up to 4 lights, as well as supporting SCANGRIP TRIPOD mounting, and an IP 65 waterproofing rating.

Choose your matching CONNECTOR and GO!

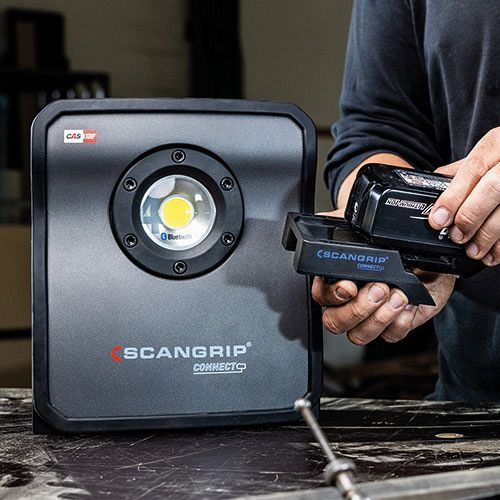

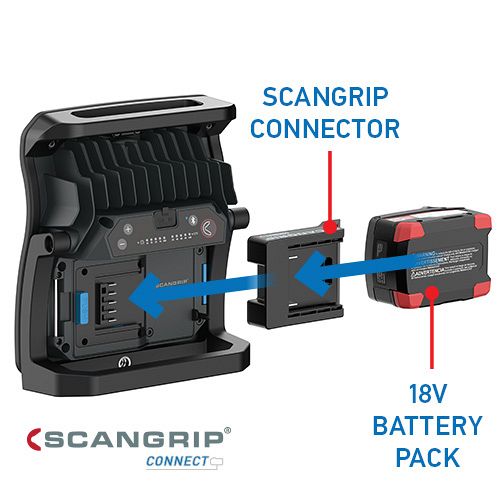

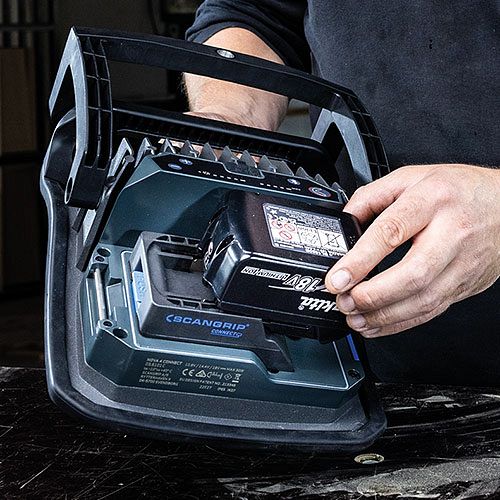

Select the SCANGRIP CONNECT work light that fits your needs, attach the CONNECTOR for your preferred battery brand, connect your battery, and you are ready to work! A built-in Battery Safety System ensures both correct operation of the battery and protects the battery pack in use.

• 18V battery pack compatible
• Up to 4000 lumen
• 5 output levels
• BLUETOOTH Remote App for up to 4 lights
• Built-in USB Powerbank
• Built-in Battery Backup

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Battery Powered

2 Year Warranty

Light intensity is controlled through the lamp’s own internal circuitry via in-built buttons, an external DC power source and a standard switch. See specific lamp instructions for further information.

Dimmable Internal Dimmer

Light intensity is controlled through the lamp’s own internal circuitry via in-built buttons, an external DC power source and a standard switch. See specific lamp instructions for further information.

Options

SCANGRIP CONNECT NOVA 4 Work Lamp

PART NO: 036101C
Legacy PN: 2XM 530 302-472

SCANGRIP CONNECTOR for DEWALT 18V battery packs

PART NO: 036142C
Legacy PN: 2XM 530 302-479

SCANGRIP CONNECTOR for MAKITA 18V battery packs

PART NO: 036148C
Legacy PN: 2XM 530 302-481

SCANGRIP CONNECTOR for MILWAUKEE 18V battery packs

PART NO: 036149C
Legacy PN: 2XM 530 302-482

Specifications

Light Output

4000 lumen @ 100%(up to 3hrs)*
3000 lumen @ 75%*
2000 lumen @ 50%*
1000 lumen @ 25%*
400 lumen @ 10% (up to 31 hours)*
*(When connected to an 18V 5.2 Ah battery)

Built-in Backup - 400 lumen for 2.5 hours

Light Performance

600 - 6000 lux @ 0.5m

Temperature Range

-10°C to +40°C

Protection

IP 65 (Dustproof and protection from low pressure water jets)
IP 54 with battery cover (Protection against most dust and low pressure water jets)

Dimensions

263 x 230 x 119mm

Weight

2.3 kg

Battery Options

Compatible with Dewalt, Makita, and Milwaukee 18V battery packs via matching CONNECT adaptor, or directly connect METABO / CAS battery

Features

Bluetooth Remote Control App, built-in battery backup, USB Powerbank, tripod mount.

Accessories

2XM 530 302-245 SCANGRIP tripod
2XM 530 302-247 Dual mount bracket
2XM 530 302-249 Magnetic mount bracket
2XM 530 302-269 Scaffolding mount bracket

Compliance

CE

Documents

Document File Name File Size
  Scangrip CONNECT Nova 2+4 Product Release 19.12.23 .pdf 2.49 MB
