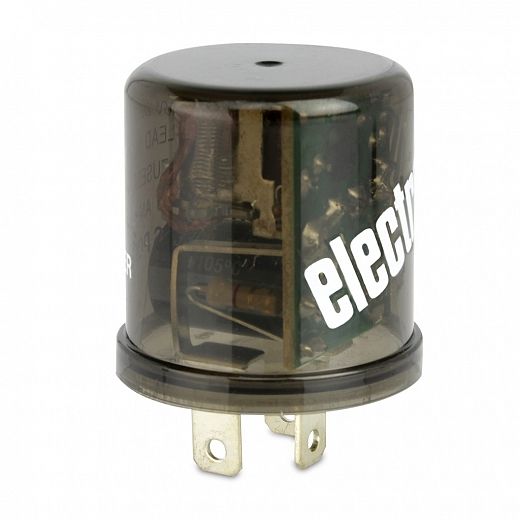

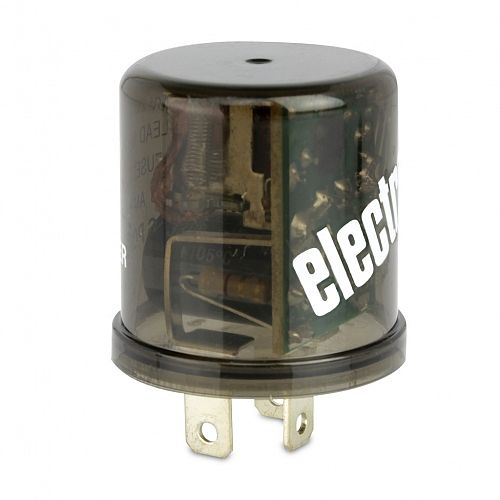

Electronic Flasher Unit - 24V - 3 Pin - High Capacity

High capacity electronic flasher unit. Complete with bracket. Designed to take up to 210W loads. Reverse polarity protection, polycarbonate cover and silver contacts. Clear audible signal.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Electronic Flasher Unit - 24V 3 Pin High Capacity

PART NO: 4LZ 961 553-234
Legacy PN: 3028

Specifications

Maximum Load

1-10 x 21W

Diameter

37mm

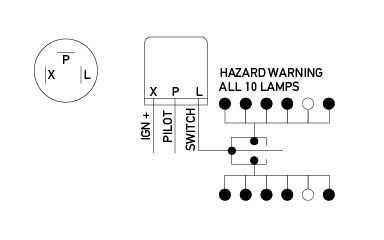

Pin Designations

Terminal Number Description
49/X Flasher input (+)
49a/L Flasher output (+) to lamps or indicator switch
C/C1/CP/P Vehicle pilot lamp output (+)

Outline

37mm diameter
37mm diameter

Top
