HELLA

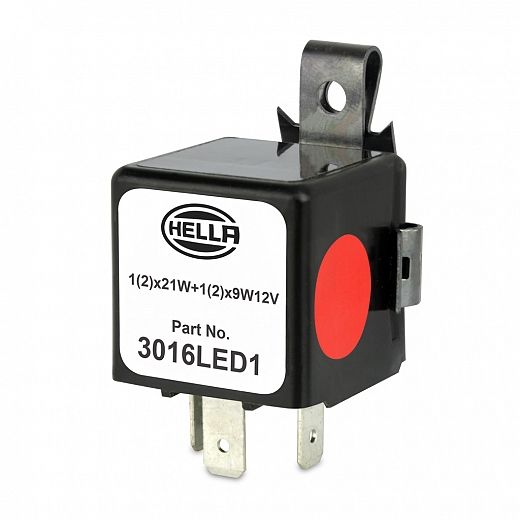

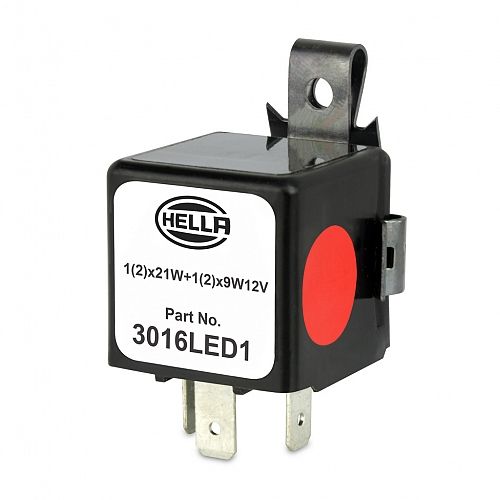

Electronic LED Flasher Unit - 12V - 3 Pin

Modified version of P/N 3016 electronic flasher unit. Specifically designed for use with DuraLED® rear direction indicator lamps on motor vehicles such as prime movers, trucks and motor homes, maintaining the mandatory bulb failure warning signal function.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Electronic LED Flasher Unit - 12V 30W 3 Pin

Electronic LED Flasher Unit - 12V 30W 3 Pin

PART NO: 4DB 003 750-742
Legacy PN: 3016LED1

Add to favourites
Electronic LED Flasher Unit - 12V 35W 3 Pin

Electronic LED Flasher Unit - 12V 35W 3 Pin

PART NO: 4DB 003 750-752
Legacy PN: 3016LED2

Add to favourites

Specifications

Maximum Load
Front direction indicator lamp 1(2) x 21W
Supplementary side direction indicator lamp 1(2) x 5W (P/N 3016LED2 only)
DuraLED® direction indicator lamp 1(2) x 9W

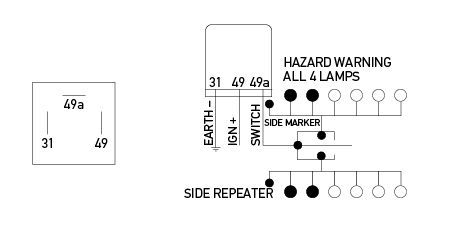

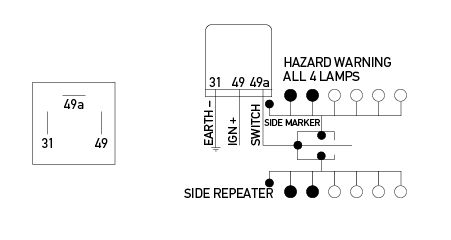

Pin Designations
Terminal Number Description
49/X Flasher input (+)
49a/L Flasher output (+) to lamps or indicator switch
31 Earth (-)

Outline

All dimensions in mm.
All dimensions in mm.
