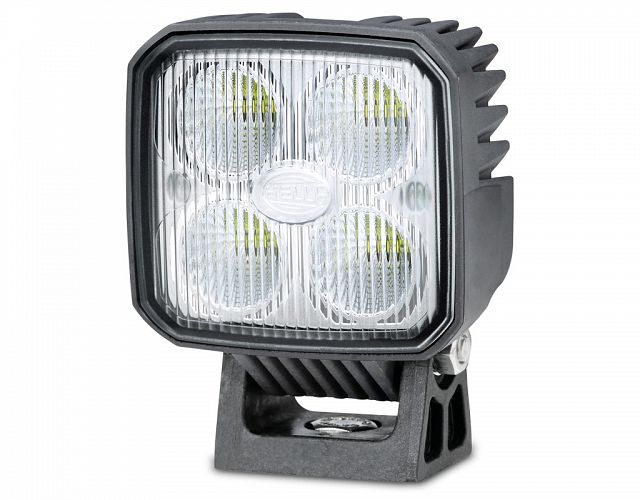

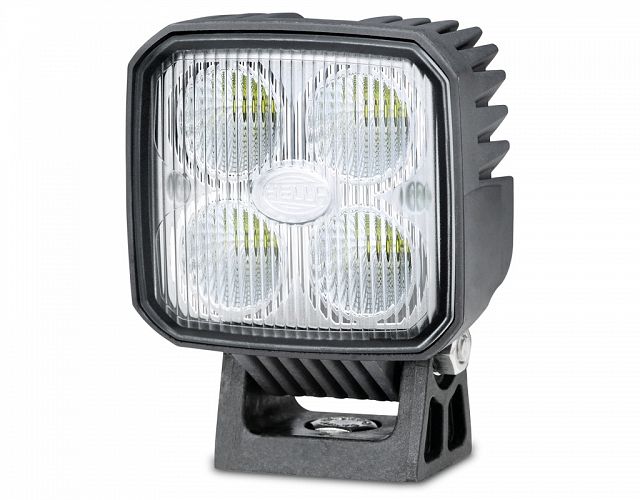

Q90 Compact LED Reversing Lamp

The ECE compliant Q90C LED reversing lamp features a new generation corrosion resistant, non-metal housing with no coatings to flake or peel, therefore providing long term durability.

With a powerful output of 1200 lumens while only consuming 15W, the Q90C is ultra-efficient. A completely sealed housing and Multivolt™ circuitry protect internal electronics and ensure a long service life.

The light weight and compact size LED light is also ideal for applications where space is restricted.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Corrosion Proof

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

Q90 Compact LED Reversing Lamp

Q90 Compact LED Reversing Lamp

PART NO: 2ZR 996 284-501
Legacy PN: 1563CRE

Add to favourites

Specifications

Mounting

Upright or pendant. Lamp inclined 25° downwards.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 32 volts.

Power Consumption

15W

Light Output

1200 lumen

Protection
Reverse polarity and voltage spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Housing

Thermally conductive plastic.

Cable Length

Supplied with 2.0m of cable.

Compliance
E12 ECE R10 E1 4576 ECE R23  CE

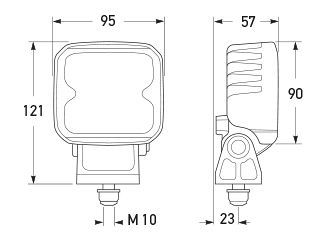

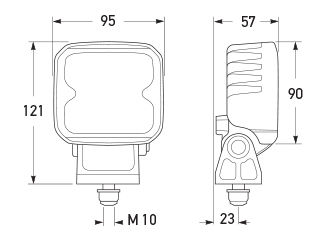

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

Beam pattern: Reversing. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam pattern: Reversing. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
