HELLA

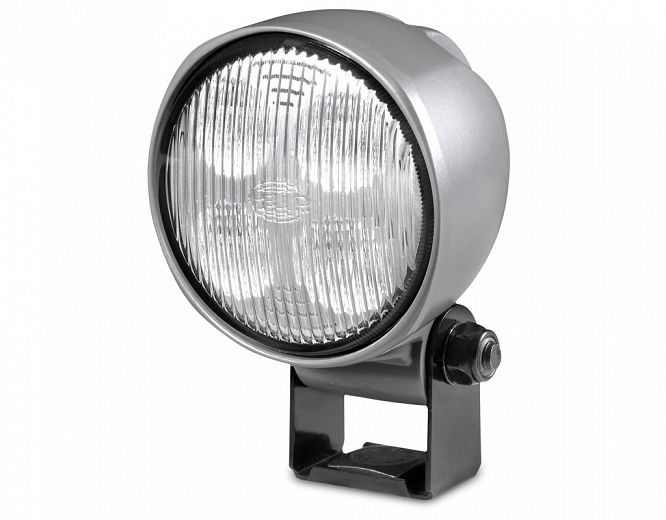

M70 LED Reversing Lamp

The ECE compliant reversing lamp features an extra wide, smooth spread light pattern, increasing safety while reversing in the dark.

HELLA’s premium Corosafe coating increases resistance to impacts, stone chips and salt, making the M70 suitable for applications in demanding conditions. The compact size and round design are also ideal for installations where space is restricted.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Corrosion Proof

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

M70 LED Reversing Lamp

M70 LED Reversing Lamp

PART NO: 2ZR 996 376-091
Legacy PN: 1547RE

Add to favourites

Specifications

Mounting

Upright or pendant. Lamp inclined 18° downwards.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

13W

Light Output

800 lumen

Protection
Reverse polarity and voltage spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Supplied with 2m of sheathed cable.

Compliance
E1  3902 ECE R10  ECE R23  CE

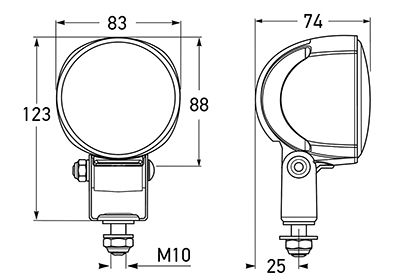

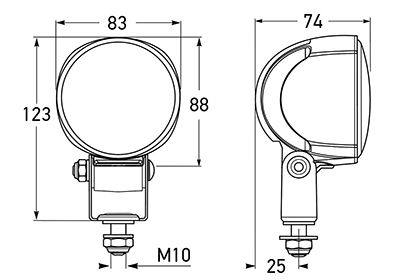

Outline

Light Output

Beam pattern: Reversing. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
Beam pattern: Reversing. One Lux represents the intensity of the light of a full moon (under clear atmospheric conditions) or just sufficient light by which to read a newspaper.
