HELLA

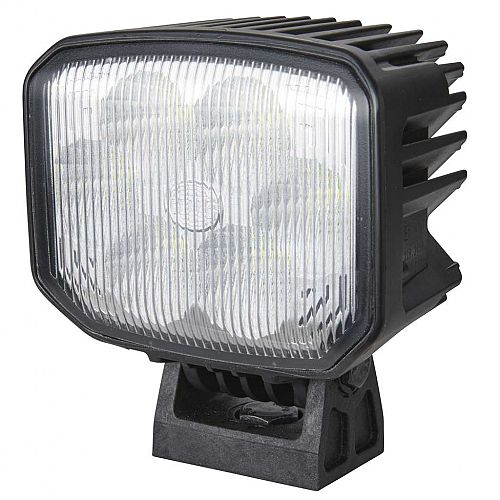

PB1000 Compact LED Reversing Lamp

The innovative PB1000 LED reversing lamp features high technology materials for reliability and safety on hard working vehicles.

Purpose designed and fully compliant for 12V or 24V trucks and light commercial applications, the PB1000 delivers impressive performance with excellent rear illumination while staying completely legal. The thermal polymer housing and high strength nylon bracket is impervious to corrosion with no coating to chip, peel or corrode. Weight is reduced by up to 50% compared to a metal body lamp for less stress on mounting points. Efficient LED technology reduces power consumption to quarter that of a traditional halogen reversing bulb, with significantly more light for safe rear illumination and enhanced reversing visibility. Unique materials, impressive illumination performance and the proven protection of HELLA’s multivolt electronics mean the PB1000 is the lamp to trust in tough working conditions.

  • Reliable and safe rear illumination with enhanced reversing visibility
  • Compliant to New Zealand regulations
  • High technology materials resist corrosion
  • Low power consumption of only 12W (0.5A@24V)
  • Light weight — only 410g
  • 5 Year Warranty

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Corrosion Proof

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

PB1000 Compact LED Reversing Lamp

PART NO: 2ZR 996 188-521
Legacy PN: 1551RE

Specifications

Mounting

Upright. Lamp inclination of 24° downwards

Voltage

Multivolt™ for optimum brightness at input voltages in 12 and 24 volt systems

Power Consumption

12W

Light Output

1000 lumen

Protection

Reverse polarity protection
IP 6K8 (Protection against dust and prolonged water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Housing

Thermally conductive plastic

Spare part

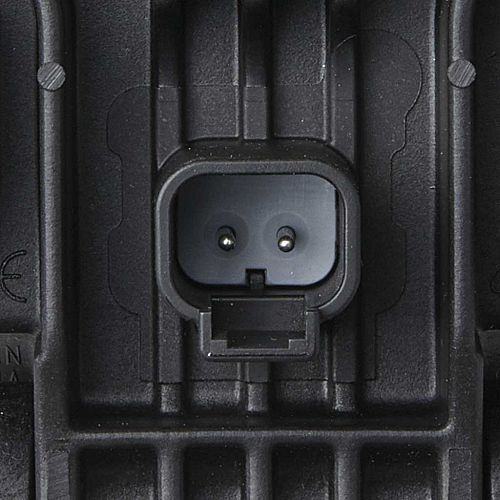

8KB 958 757-501    2.0m sheathed cable with DT plug

Compliance

E1 4767 ECE-R23 E12 0083 ECE-R10    CE

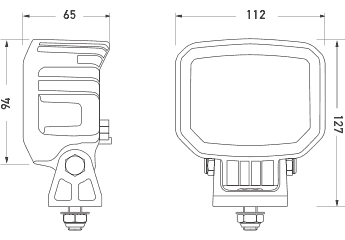

Outline


Top
