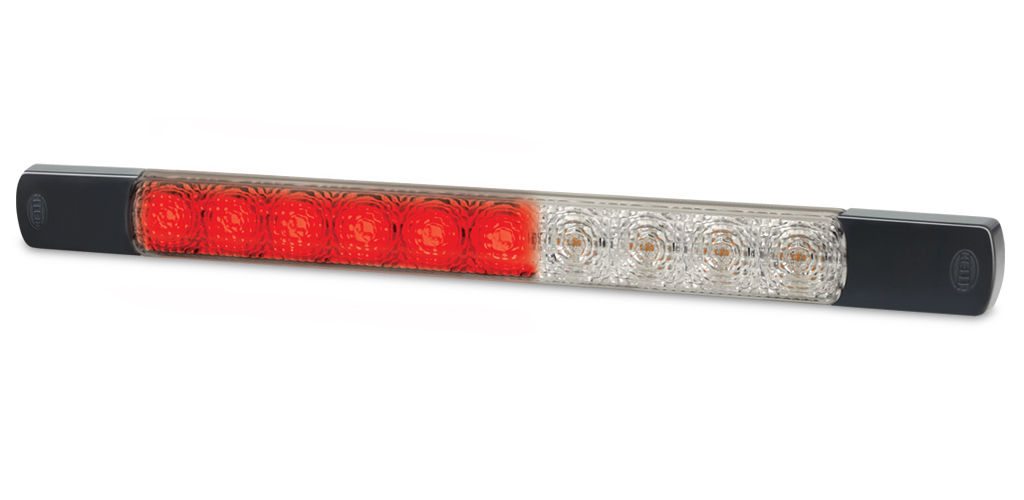

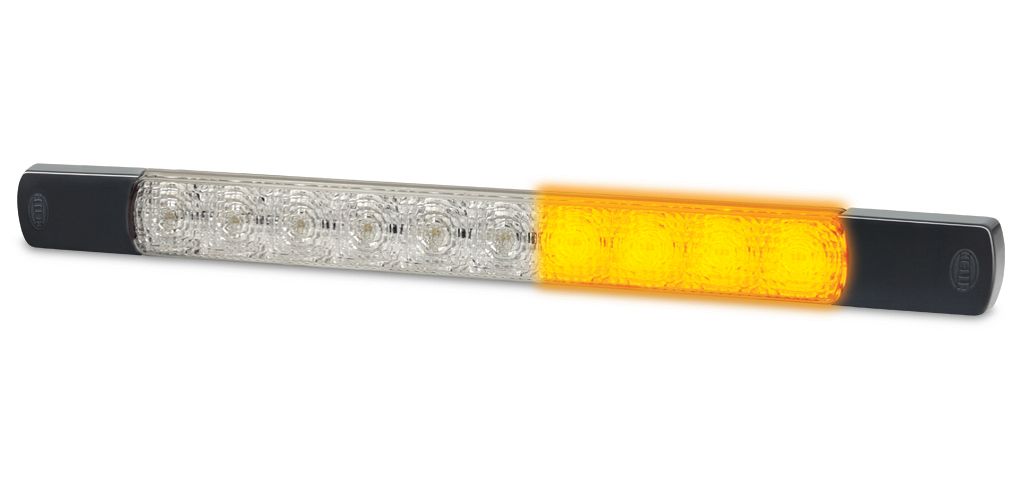

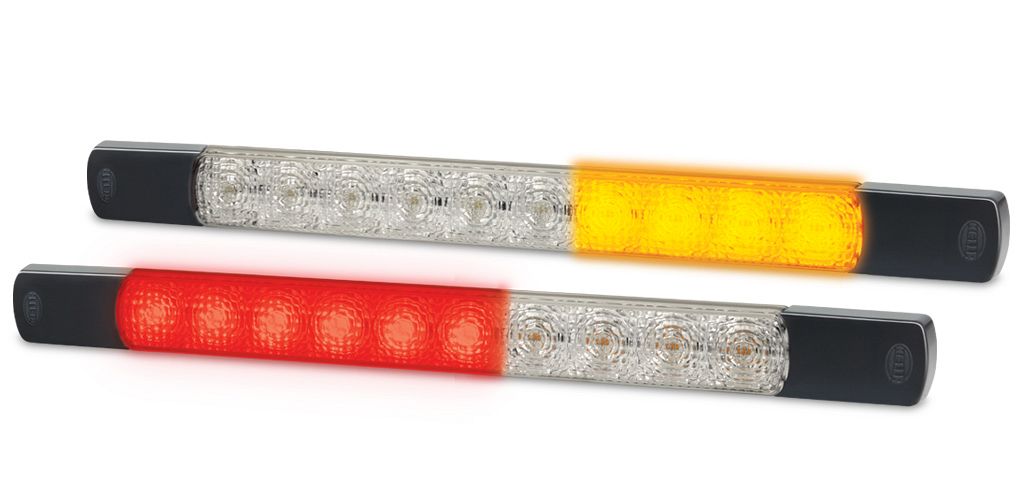

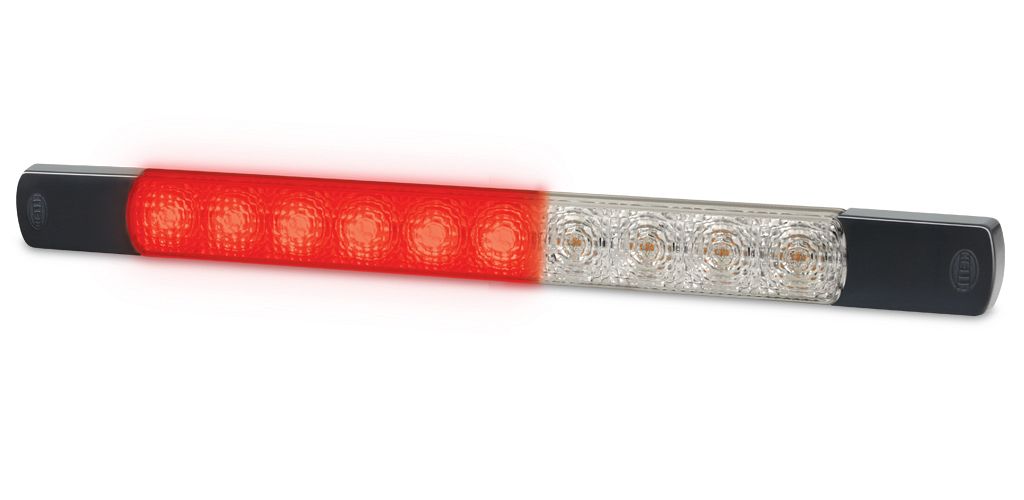

LED Stop/Rear Position/Rear Direction Indicator Lamp - Surface Mount

With an easy to install surface mount design, an ultra low profile of 11mm and narrow width of only 25mm the strip lamp is ideal for installation in space restricted applications. These lamps can also be mounted vertically or horizontally.

Featuring an ultra durable Grilamid® nylon lens for extreme impact, UV, chemical and stress resistance. The optic appears clear until illuminated.

Ultra-efficient LEDs offer increased reliability while reducing power consumption, maintenance and operational costs. Each lamp is also completely sealed for protection against dust, temporary water immersion and high-pressure/steam jet cleaning for long term reliability. Proudly designed and manufactured in New Zealand and supported with a 5 year warranty for complete peace of mind.

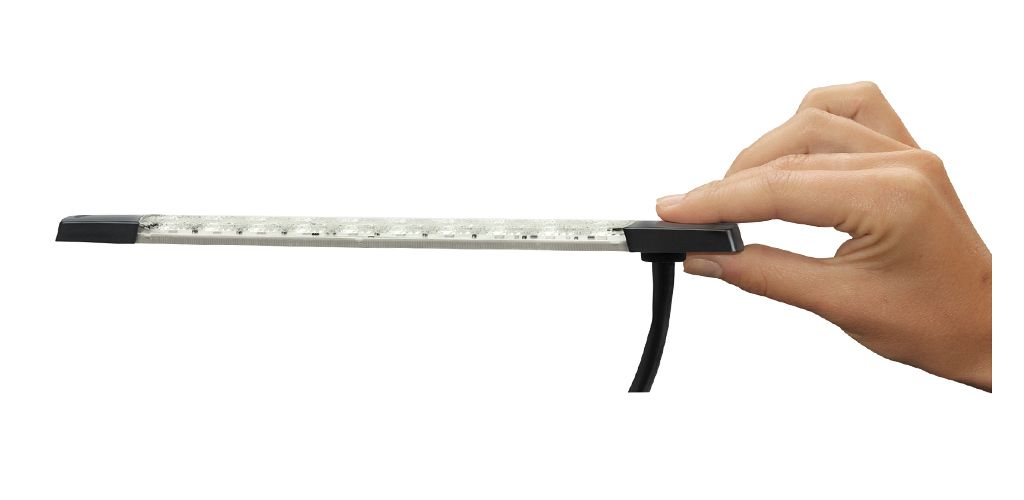

• Ultra slim with a profile height of only 11mm
• Low power consumption (2W)
• Grilamid® lens for increased durability
• Ultra long service life
• Surface mount

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Stop/Rear Position/Rear Direction Indicator Lamp - 12 Volt

LED Stop/Rear Position/Rear Direction Indicator Lamp - 12 Volt

PART NO: 2SD 980 819-001
Legacy PN: 237512V

Add to favourites
LED Stop/Rear Position/Rear Direction Indicator Lamp - 24 Volt

LED Stop/Rear Position/Rear Direction Indicator Lamp - 24 Volt

PART NO: 2SD 980 819-221
Legacy PN: 237524V

Add to favourites

Specifications

Optics

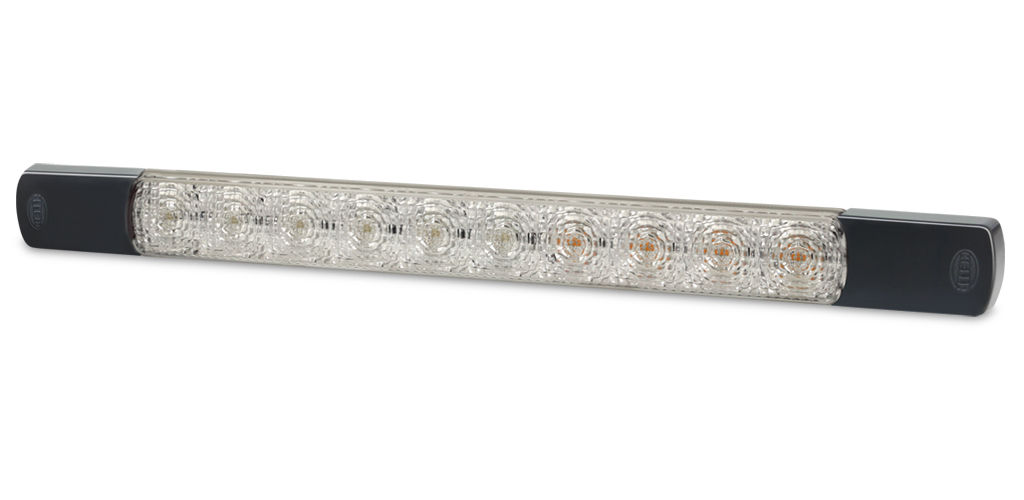

Optic appears clear until illuminated

Mounting

Suitable for horizontal and vertical mounting.

Voltage

12V DC or 24V DC

Power Consumption
Stop 2W
Rear Position <0.5W
Rear Direction Indicator 2W

Protection
Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Grilamid®

Spare Parts
9.2652.09 White screw caps (Pack of 4)
9.1009.09 Charcoal screw caps (Pack of 4)
9.1009.10 Chrome plated screw caps (Pack of 4)

Compliance
ADR 49/00 ADR 6/00: Cat 2a E24 5902 ECE 6/01 ECE 7/02  CE

Note

Includes mounting screws and charcoal screw caps.

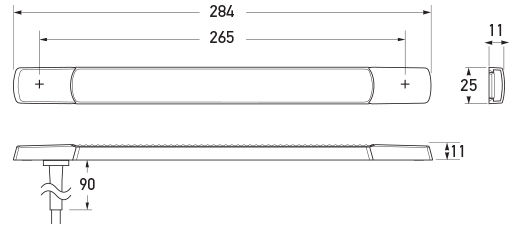

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2SD 980 819-xxx_Instructions_2375_Stop-Tail-Indicator_Strip_Lamp.pdf 797.29 KB
