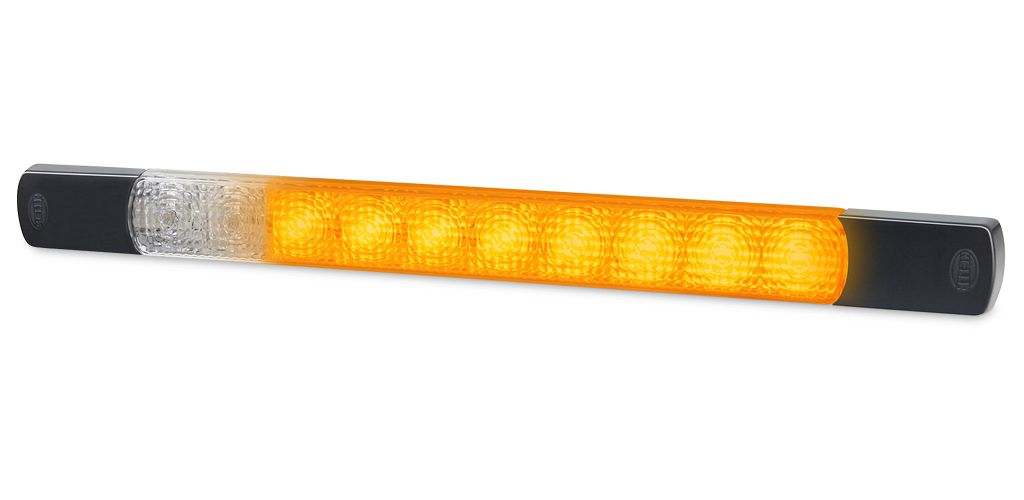

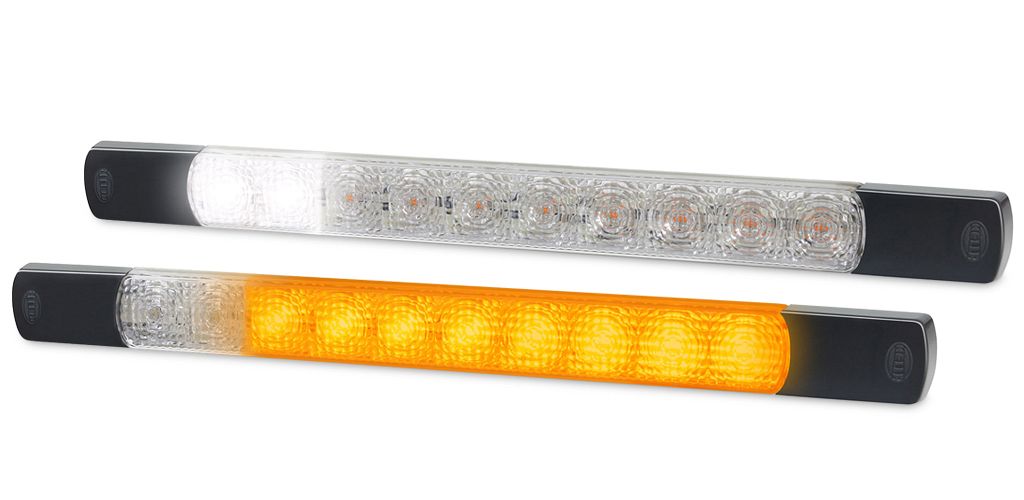

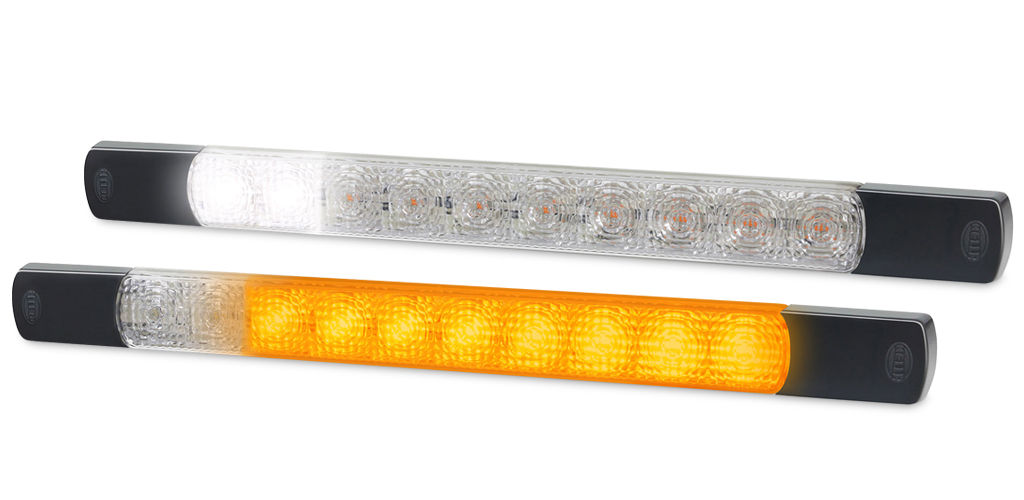

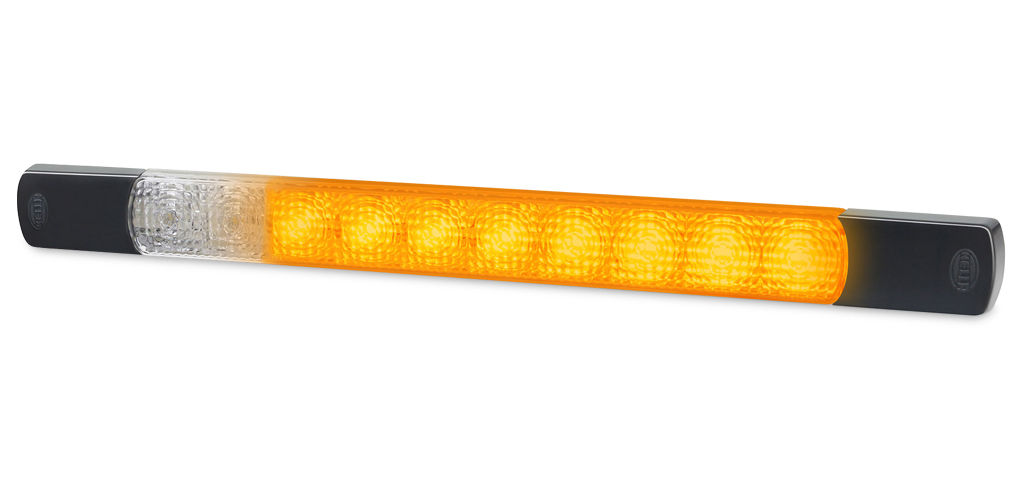

LED Front Direction Indicator/Front Position Lamp - Surface Mount
With an easy to install surface mount design, an ultra low profile of 11mm and narrow width of only 25mm the strip lamp is ideal for installation in space restricted applications. These lamps can also be mounted vertically or horizontally.
The Surface Mount Strip lamp features an extremely durable Grilamid® lens that is impact, UV and chemical resistant. Ultra-efficient LEDs offer increased reliability while reducing power consumption, maintenance and operational costs.
Each lamp is also completely sealed for protection against dust, temporary water immersion and high-pressure/steam jet cleaning for long term reliability.
Proudly designed and manufactured in New Zealand and supported with a 5 year warranty for complete peace of mind.
• Compact and low profile design
• Low power consumption
• Grilamid® lens for increased durability
• Ultra long service life
• Easy installation surface mount
RFCommSafe™ - To view and download more information please click here
To find a HELLA reseller near you, click here.
Rollover/tap the icons below for further details:
Fit and Forget
Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.
LED Technology
RFCommSafe™
RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.
ADR (Australian Design Rules) Compliance
Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.
12 Volt
Suitable only for 12VDC applications.
24 Volt
Suitable only for 24VDC applications.
Grilamid® Lens
Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.
UV Resistant
HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.
5 Year Warranty
This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.
Made in New Zealand
Options
LED Front Direction Indicator/Front Position Lamp - 12 Volt
PART NO: 2BE 980 819-301
Legacy PN: 211012V
LED Front Direction Indicator/Front Position Lamp - 24 Volt
PART NO: 2BE 980 819-401
Legacy PN: 211024V
Specifications
Optics |
Optic appears clear until illuminated |
||||||
Mounting |
Suitable for horizontal and vertical mounting. |
||||||
Power Consumption |
|
||||||
Protection |
|
||||||
Cable Length |
Pre-wired with 3m of sheathed multi-core cable. |
||||||
Lens Material |
High impact and chemical resistant Grilamid® lens |
||||||
Spare Parts |
|
||||||
Compliance |
|
||||||
Note |
Includes mounting screws and charcoal screw caps. |

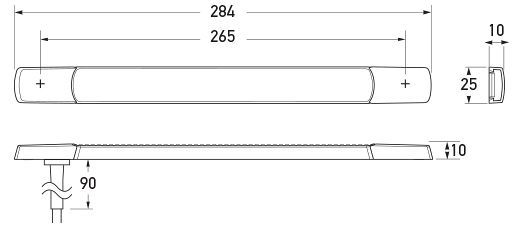

Outline
Documents
| Document | File Name | File Size |
|---|---|---|
| 958-315-80 Instruction Sheet.pdf | 786.69 KB |
