HELLA

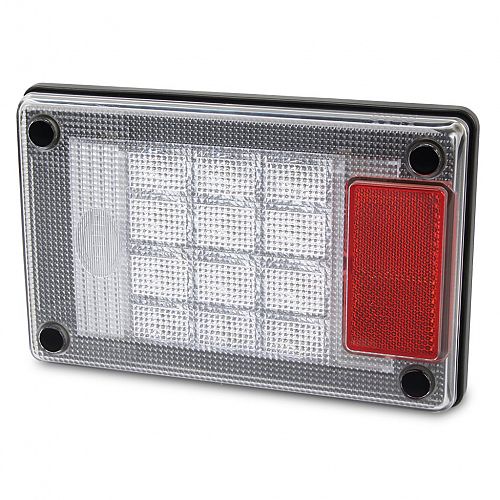

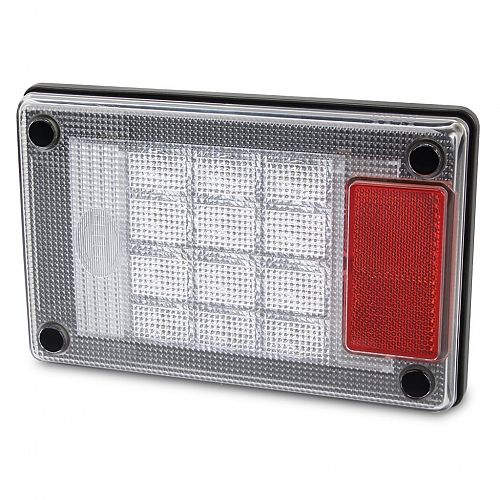

Jumbo-S LED Reversing Lamp

Jumbo-S LED reversing lamp with inbuilt 23cm² red retro reflector. Low profile design allows surface mounting with no additional housing.

Shockproof and fully sealed to withstand temporary water submersion and high-pressure washing.

NOTE: the lamp no longer includes the optional rear mounting gasket.
This is available, if required, as a spare part: 9HD 980 768-801
(Jumbo-S Mounting Gasket Base, Spacers and 1¼" Screws).

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

Jumbo-S LED Reversing Lamp

PART NO: 2ZR 980 762-031
Legacy PN: 1461

Specifications

Mounting

Surface mount.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

4W

Protection

Reverse polarity and transient spike circuit protection.
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

200mm of cable.

Compliance

ADR 1/00 ADR 47/00

Note

Reversing lamps are not designed for continuous operation.

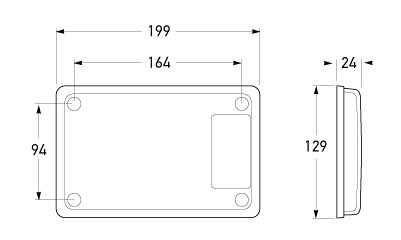

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2ZR 980 762-0xx_Instructions-1461 Jumbo-S Reverse Lamp.pdf 327.26 KB
