Jumbo LED Module Rear Direction Indicator Lamp with Red Retro Reflector

Jumbo LED Multivolt™ module designed to update existing Jumbo or Designline bulb lamps. Reflector area 33cm2.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

Jumbo LED Rear Direction Indicator Module

PART NO: 2BR 959 031-011
Legacy PN: 2138

Specifications

Mounting

Four point recess mount.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

6W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)

Cable Length

Pre-wired with 200mm of cable.

Housings

Single Module Housing 9BG 958 568-027 (9204109BULK)
Double Module Housing 9BG 958 559-011 (9242209)
Triple Module Housing 9BG 958 615-011 (9242309)

Compliance

ADR 6/00: Cat 2a ADR 47/00

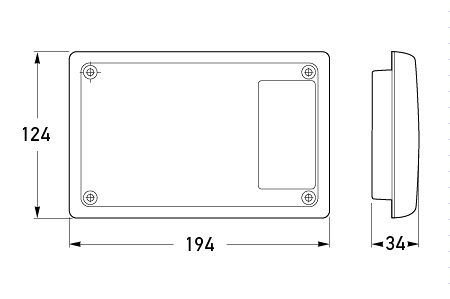

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  IS_959_031-0xx_(2138)_Jumbo_Module_Rear_Indicator_Lamp_(958_780-39_07-21).pdf 276.03 KB
