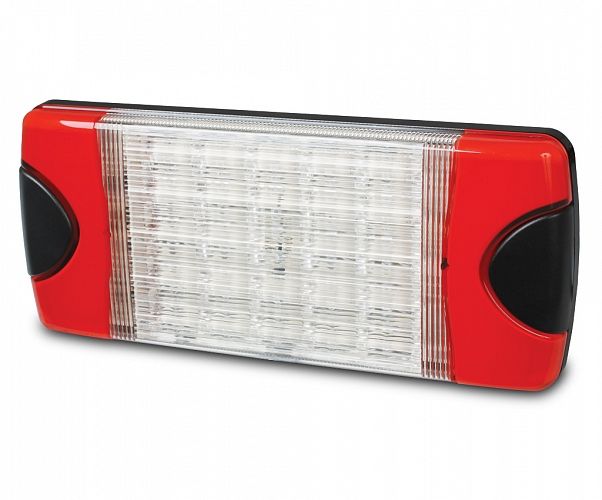

DuraLED® Combi-S Stop/Rear Position/Rear Direction Indicator Lamp - Heavy Duty

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.
‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle.
Whilst keeping its design heritage and appearance the DuraLED® range has been continuously upgraded to the latest material and electronic component technology.

Suitable for commercial and boat trailers

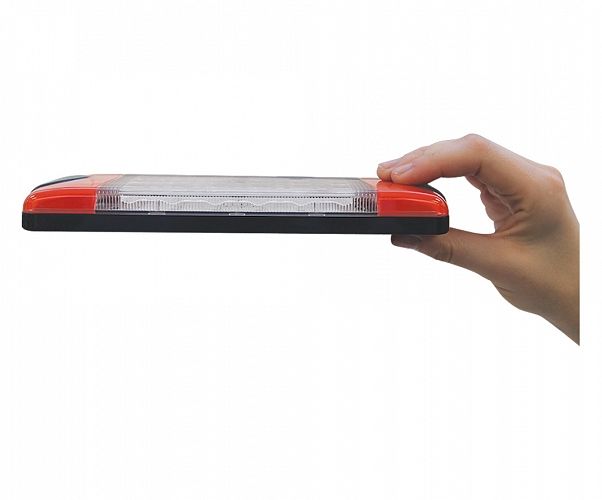

Super slim profile – Iconic Design
The new evolution of the DuraLED® Combi features a depth of just 25mm.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Grilamid® Lens
Please click on Grilamid above for further information.

Optic appears clear until illuminated

Hella Compatibility Solution HCS
Hella P/N 2378-CS features HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA 24V HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard.
Note: Lamp is not compatible with 12V HCS units.

HCS Icon For more information on HELLA Compatibility Solution (HCS) click here.



RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

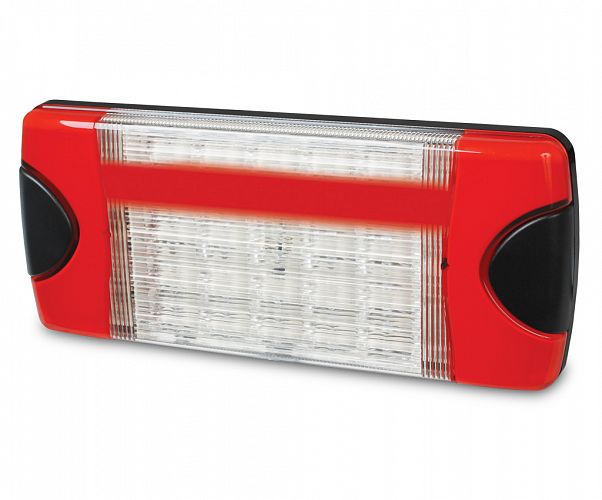

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED® Combi-S - Heavy Duty

PART NO: 2SD 980 613-001
Legacy PN: 2378

DuraLED® Combi-S - Heavy Duty - Bulk Pack 12

PART NO: 2SD 980 613-007
Legacy PN: 2378BULK

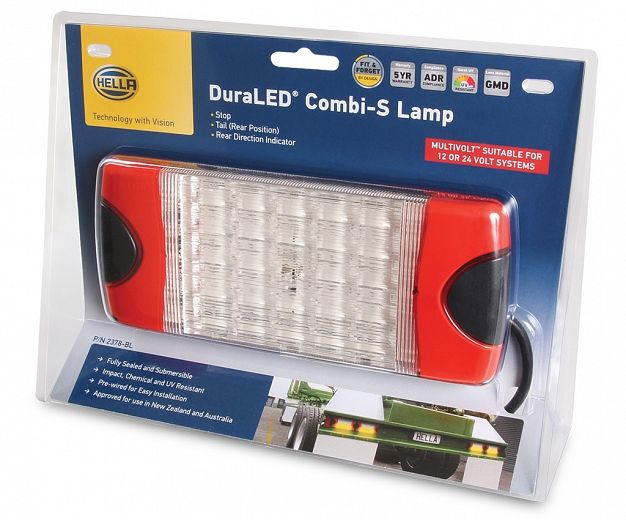

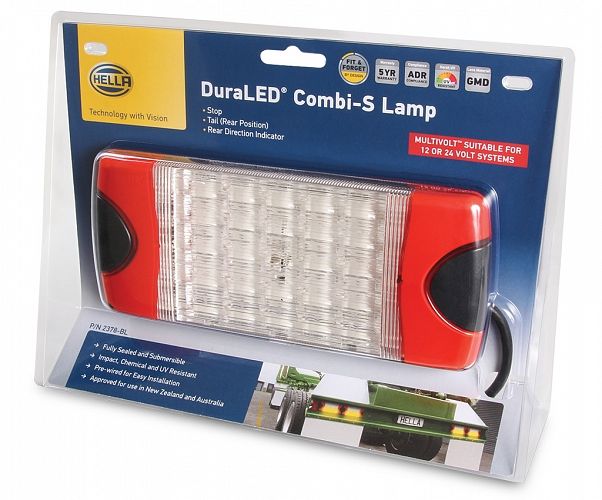

DuraLED® Combi-S - Heavy Duty - Blister Pack

PART NO: 2SD 980 613-002
Legacy PN: 2378BL

DuraLED® Combi-S - Heavy Duty - HCS Technology

PART NO: 2SD 980 613-201
Legacy PN: 2378CS

DuraLED® Combi-S - Heavy Duty - 6 Metre Cable

PART NO: 2SD 980 613-031
Legacy PN: 23786M

DuraLED® Combi-S - Heavy Duty - 6 Metre Cable - Bulk Pack 12

PART NO: 2SD 980 613-037
Legacy PN: 23786MBULK

Specifications

Optics

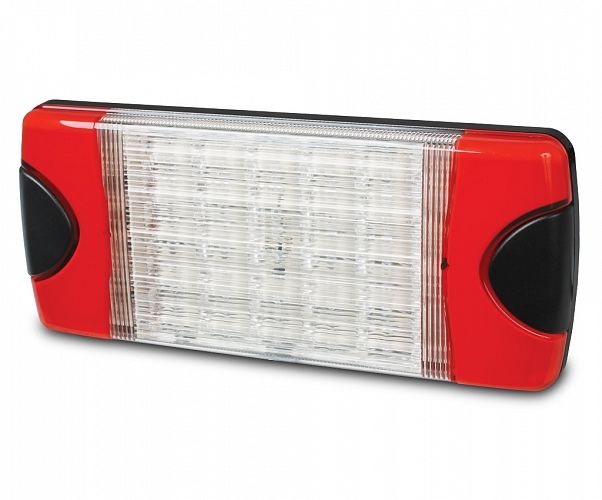

Optic appears clear until illuminated

Mounting

Two hole surface mount with mounting bushes supplied.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

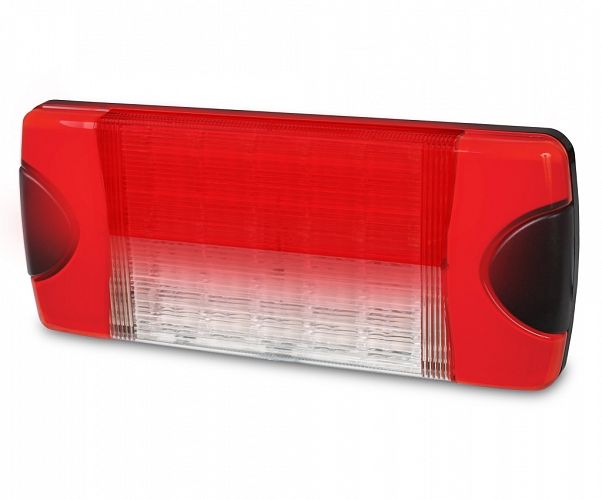

Stop: 5W
Rear position: 1W

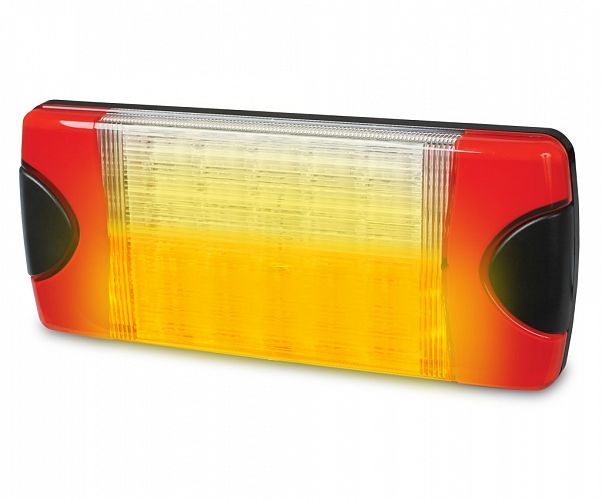

Rear direction indicator: 5W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor(TVS)
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

P/Ns 2378/...-BL/...-BULK/...-CS Pre-wired with 2.5m of sheathed multi-core cable.
P/Ns 2378-6M/...6MBULK Pre-wired with 6m of sheathed multi-core cable.

Lens Material

Grilamid®

Compliance

ADR 6/00: Cat 2a ADR 49/00 ISO 13207-1 (2378-CS only) CE
E24 5883 ECE R6/01 ECE R7/02

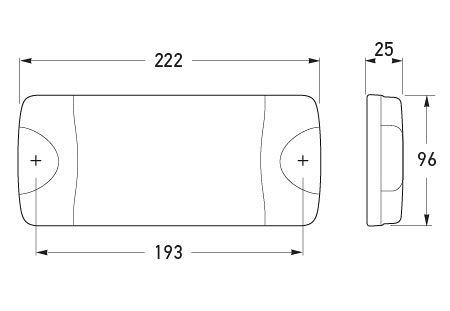

Outline

All dimensions in mm.
All dimensions in mm.
