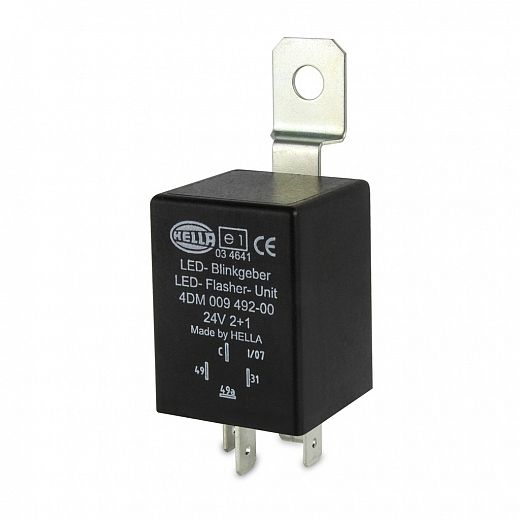

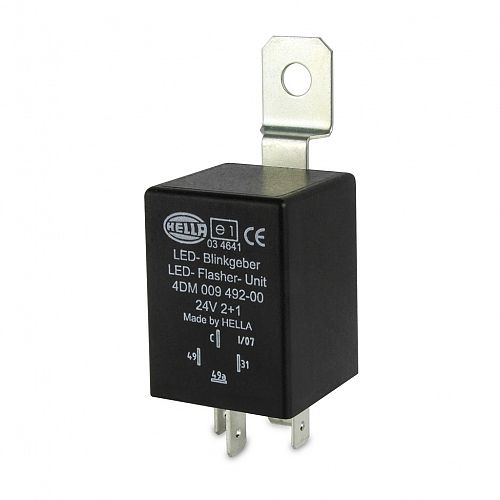

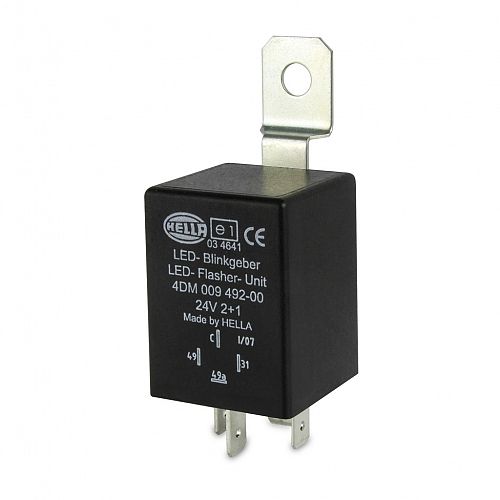

HCS Electronic Flasher Unit - 24V - 2+1

LED compatible flasher unit specifically designed for use with HCS (HELLA Compatibility Solution) LED indicator lamps.

Provides stable flash rate and reliable bulb/LED lamp failure indication, for towing vehicles and trailers. Suitable to operate combinations of HCS LED and conventional 21W bulb-type lamps.

To view HELLA lamps featuring HCS technology, please filter for HCS under the Marker & Signal Lamp section.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

Options

HCS Electronic Flasher Unit - 24V - 2+1

HCS Electronic Flasher Unit - 24V - 2+1

PART NO: 4DM 009 492-001
Legacy PN: 3037

Add to favourites

Specifications

Maximum Load

2+1 (6) x HCS or 21W + 0-5W

Frequency

90 +/- 30 flash signals per minute for direction indication and hazard warning.

Protection
IP 53 (Protection against dust and water spray)

Pin Designations
Terminal Number Description
49/X Flasher input (+)
49a/L Flasher output (+) to lamps or indicator switch
31 Earth (-)
C/C2 1st trailer pilot lamp output (+)

Note

With trailer pilot lamp output.
Will not replace flasher units with a vehicle pilot terminal (P or C).

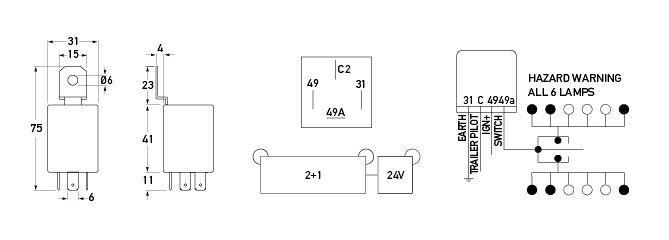

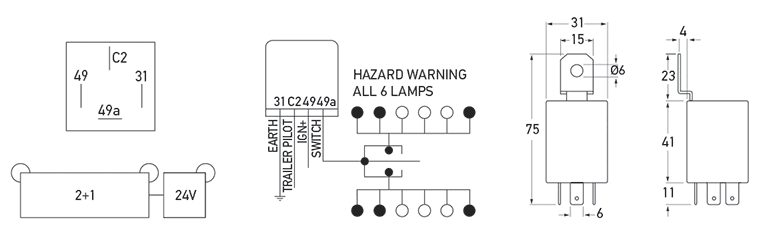

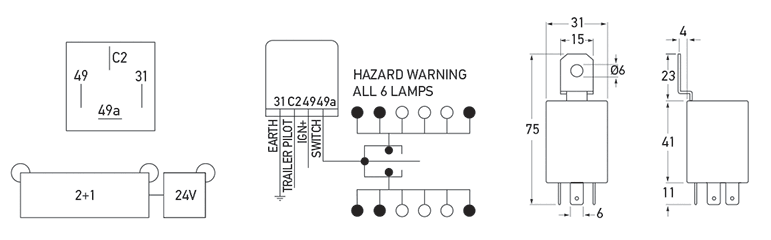

Outline

All dimensions in mm.
All dimensions in mm.
