LED Micro Light Bar 100

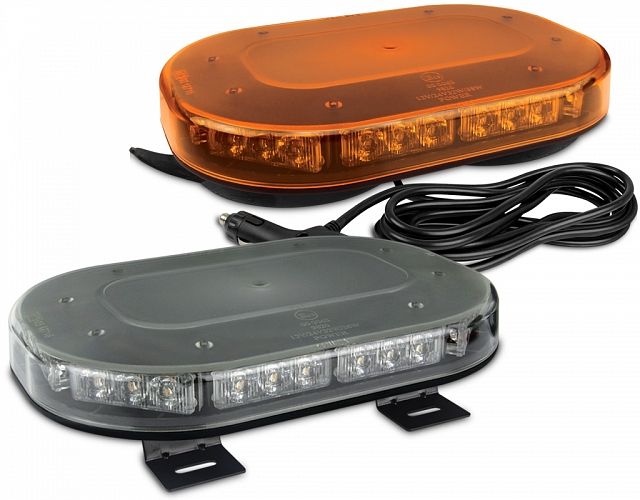

Optilux LED Micro Light Bar - 100 (MLB100) clear/amber is a compact, versatile lamp suitable for numerous applications. This LED lamp is characterised by its low profile, and wide variety of flash patterns. 30 high intensity Amber LEDs create a 360 degree light spread while consuming only 2 amps at 12V DC.

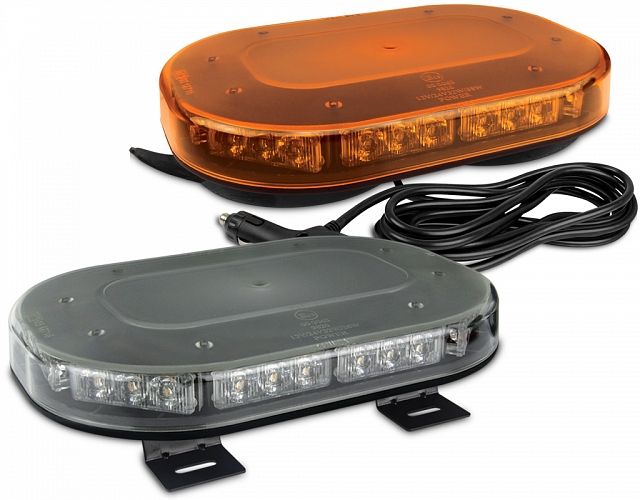

The MLB100 is available in fixed mount and magnetic mount in a clear or amber lens, and operates with both 12 and 24 volt systems.

• Multi-Voltage Input 12-24V DC
• 23 user selectable flash patterns
• Non-volatile memory recalls last flash pattern used at power up
• Amber light output flash in both Clear and Amber lenses

• Multiple units can be synchronised
• Reverse polarity protection
• Weatherproof and vibration resistant
• 3 year warranty

To find a HELLA reseller near you, click here

Rollover/tap the icons below for further details:

LED Technology

3 Year Warranty

Options

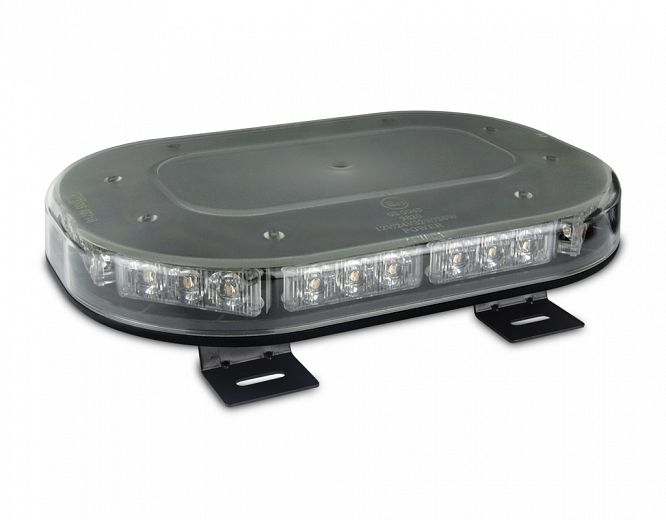

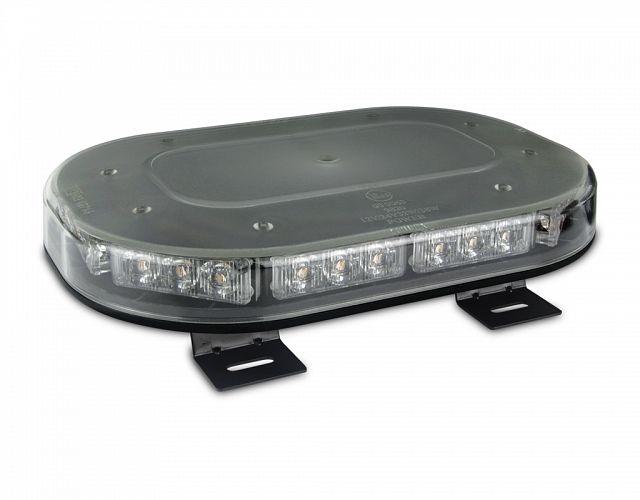

LED Micro Light Bar 100 - Clear Lens Fixed Mount

PART NO: 2RL 958 308-021
Legacy PN: MLB100

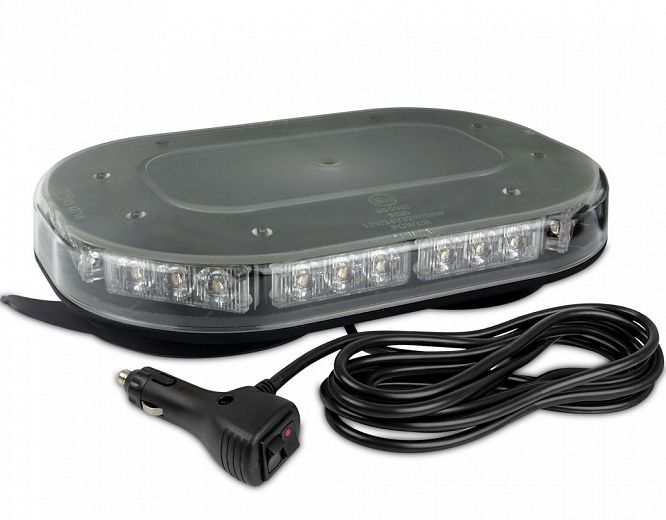

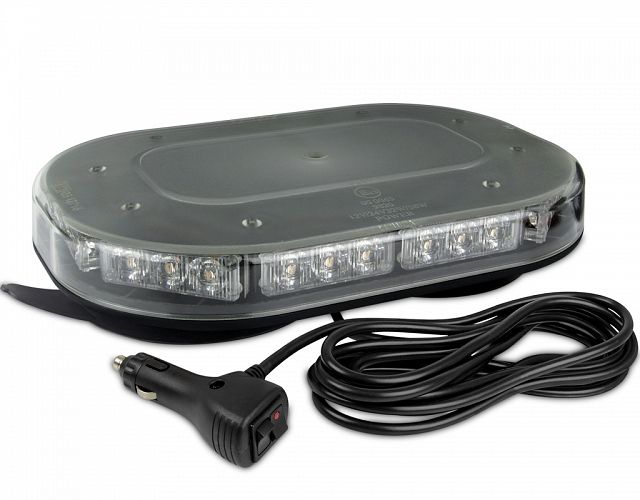

LED Micro Light Bar 100 - Clear Lens Magnetic Mount

PART NO: 2RL 958 308-031
Legacy PN: MLB100MAG

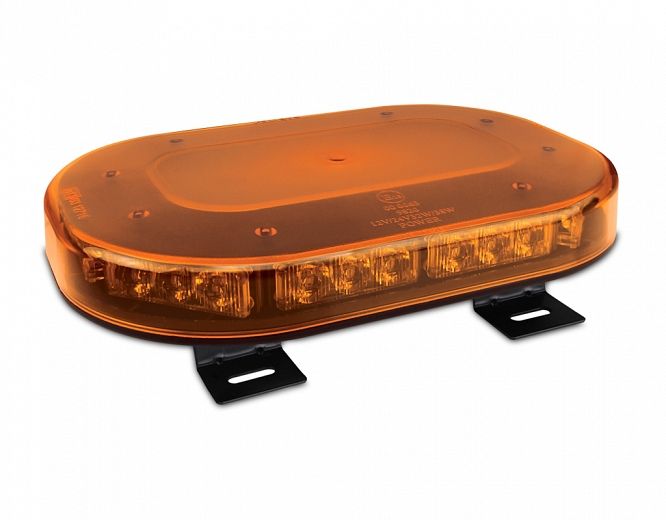

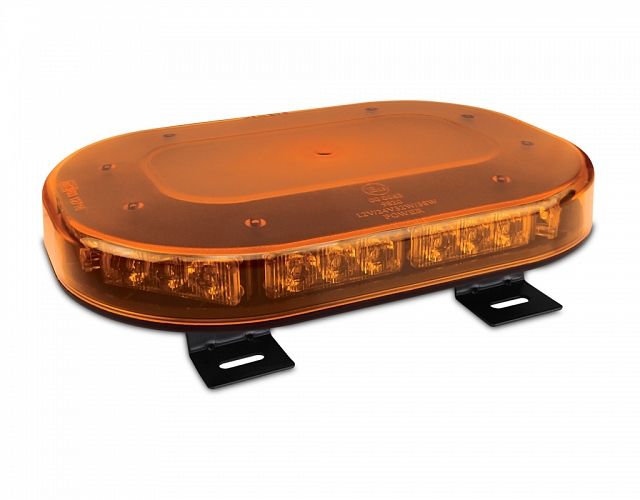

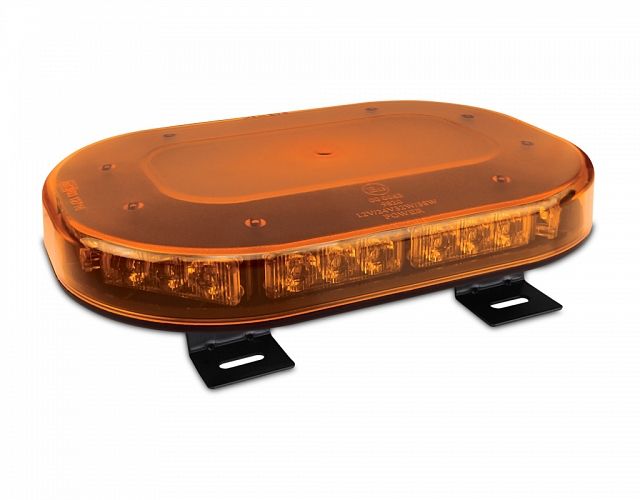

LED Micro Light Bar 100 - Amber Lens Fixed Mount

PART NO: 2RL 958 308-001
Legacy PN: MLB100A

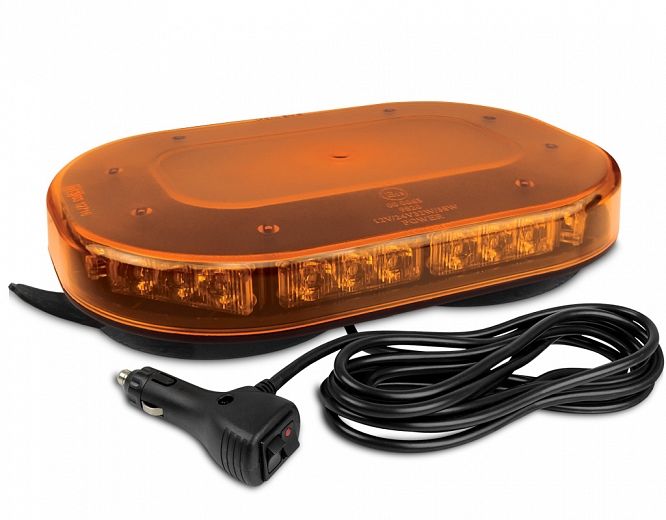

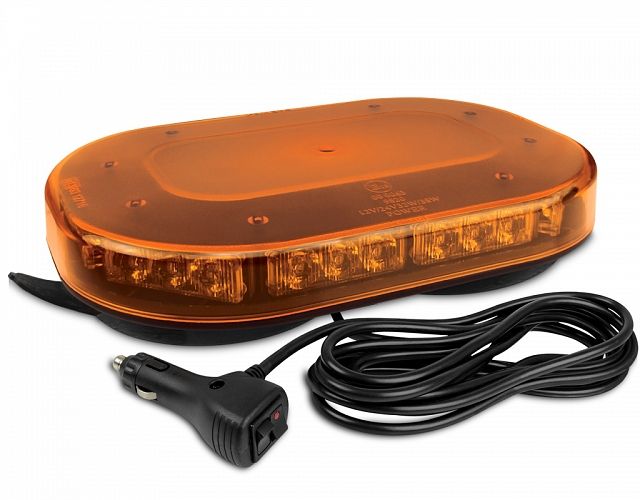

LED Micro Light Bar 100 - Amber Lens Magnetic Mount

PART NO: 2RL 958 308-011
Legacy PN: MLB100AMAG

Specifications

Warning Patterns

23 flash patterns. Amber light output flash in both Clear and Amber lenses.

Voltage

Multi-voltage suitable for 12 or 24 volt systems.

Power Consumption

25W (Varies with flash pattern)

Max Current

2 A @ 12V DC / 1 A @ 24V DC

Protection

IP 65 (Protected against dust and water jets from all directions)

Cable Length

Fixed: 300mm of sheathed multi-core cable.
Magnetic: 3000mm with dual button plug.

Multi-Unit Sync

Over 15 lamps.

Compliance

SAE Class 1 ECE R65 (Pattern21)

Caution

Mounting of Magnetic Base Micro Light Bar. Due to HELLA being unable to control the condition of the mounting surface or the potential forces that may occur during deceleration, fitment of warning lamps with a magnetic base cannot be recommended for use on moving vehicles.

Outline

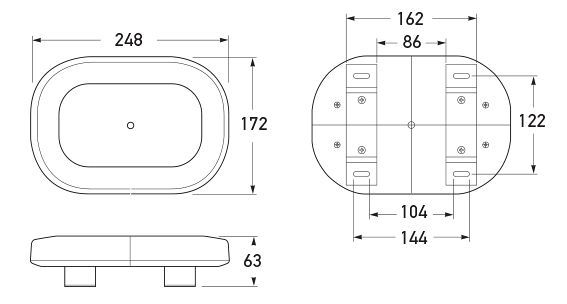

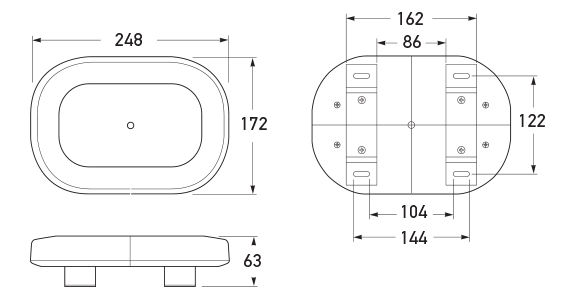

Fixed Mount Diagram - All dimensions in mm.
Fixed Mount Diagram - All dimensions in mm.

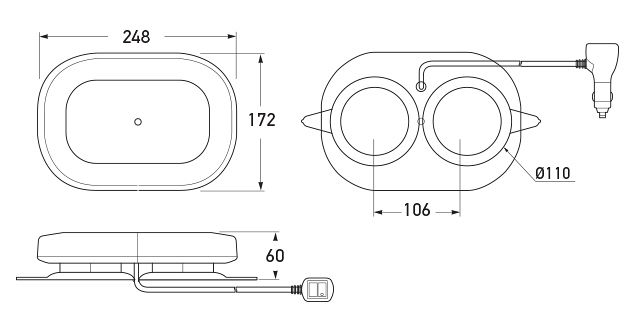

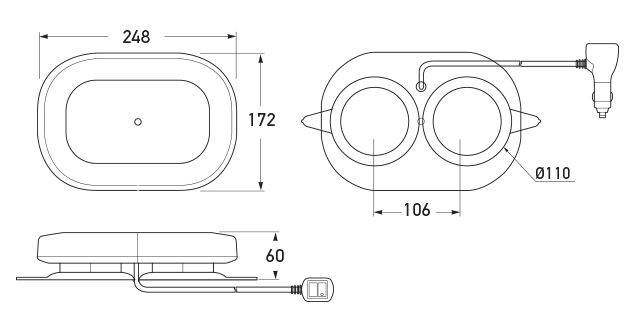

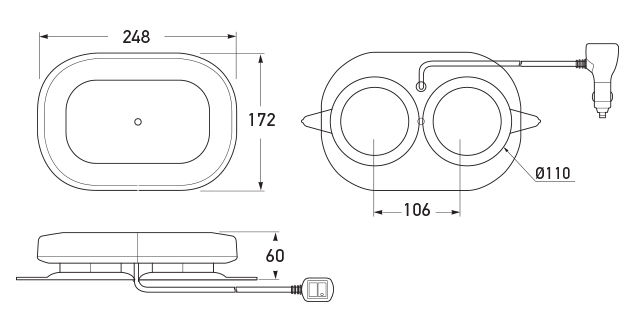

Magnetic Mount Diagram - All dimensions in mm.
Magnetic Mount Diagram - All dimensions in mm.

Light Output

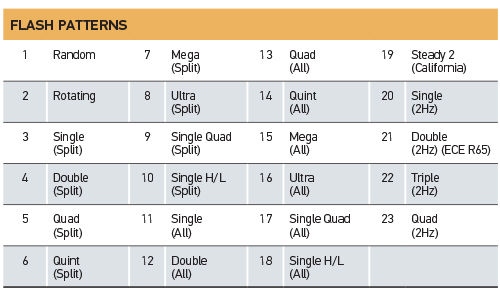

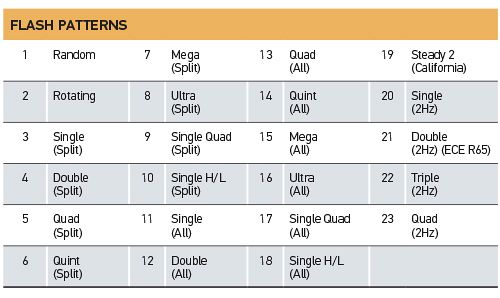

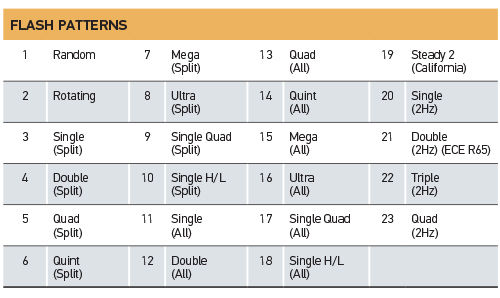

LED Micro Light Bar 100 - Flash Patterns (Amber light output flash in both Clear and Amber lenses.)
LED Micro Light Bar 100 - Flash Patterns (Amber light output flash in both Clear and Amber lenses.)
