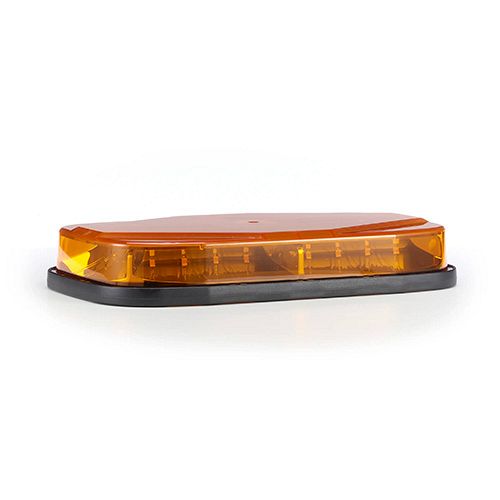

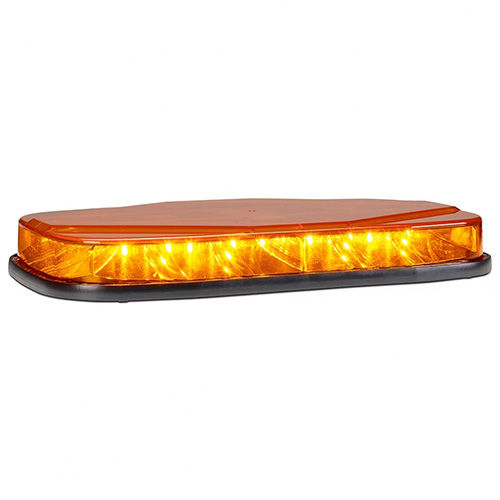

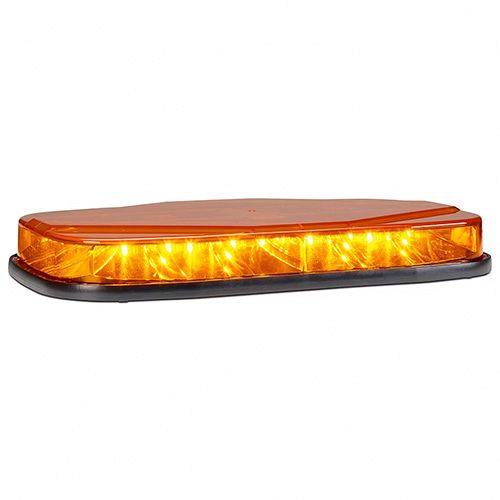

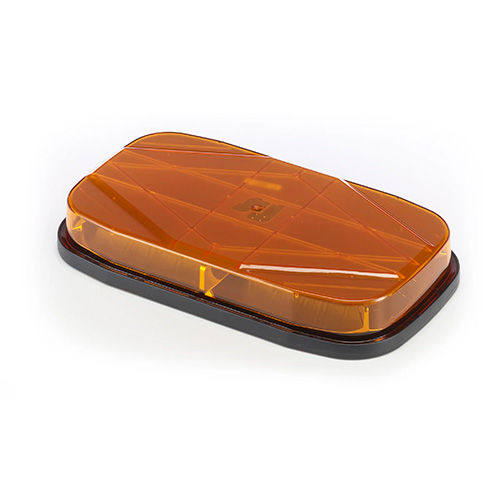

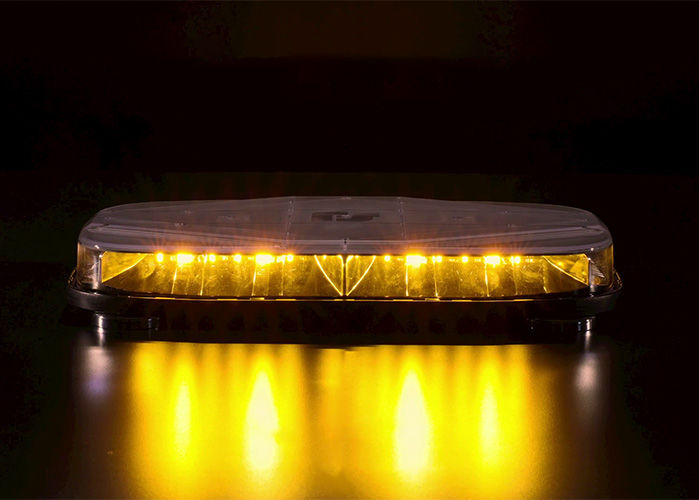

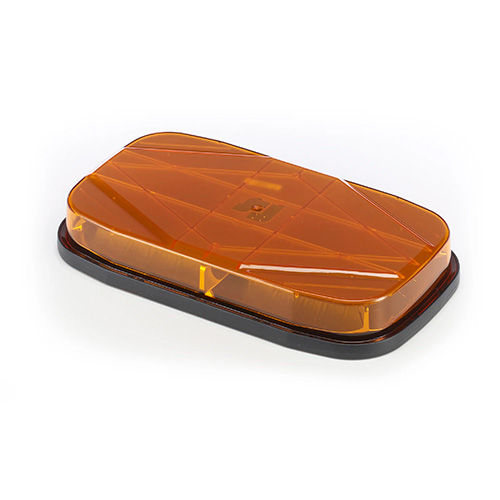

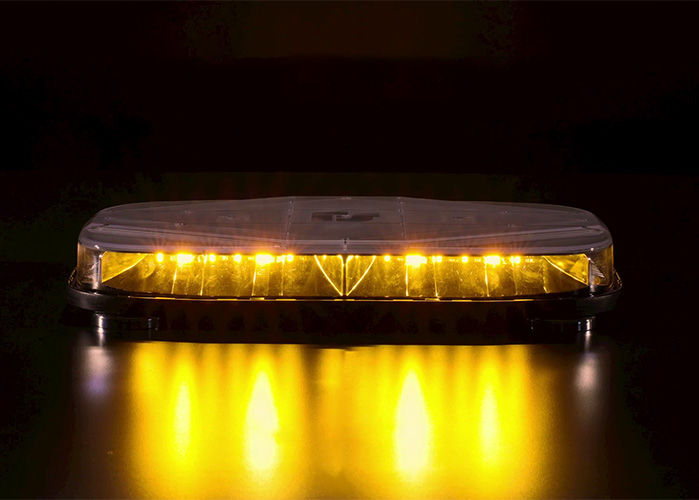

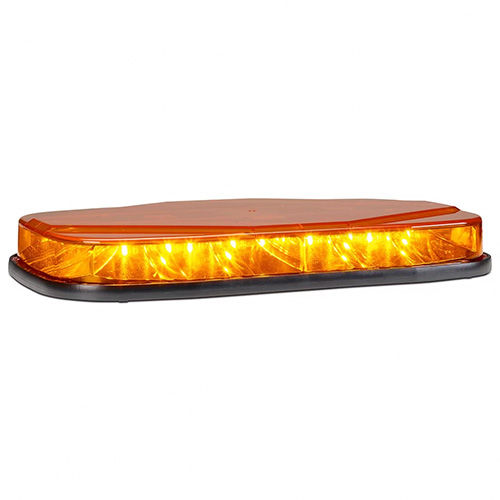

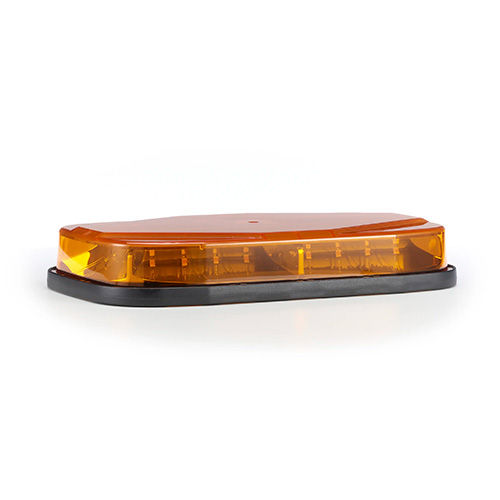

LED HighLighter® Elite Mini Light Bar

The HighLighter® Elite mini-light bar boasts SAE J845 Class 1 approval, enhancing on-site visibility and ensuring compliance with regulatory standards.

Using the latest Solaris® reflector technology allows this lamp to provide the highest levels of visibility through 360 degrees, while being only 51mm in height.

Additional features include 25 different flash patterns, ensuring there is a mode for every application. A wide input voltage range allows this unit to be used across multiple vehicle types.

IP69K rated against dust and water intrusion, and built utilising patented ROC (Reliable Onboard Circuitry™) technology, minimizing potential failure points and ensuring this mini‑light bar can withstand the trials faced on and off the road.

NOTE: This new multivolt HighLighter® Elite Mini Light bar model 2RL 980 310‑021 replaces both the previous HighLighter Mini Light Bar 2RL 980 310‑001 (454201A) 12 volt model, and 2RL 980 310‑021 (454201A24V) 24 volt model, which are no longer available.

Highlighter Elite Low Profile Mini Light bar text over light bar image

Highlighter Elite 25 High performing Flash Patterns text over light bar image

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

Multi-flash

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

HighLighter® Elite Multi-flash Mini Light Bar - Amber Dome

HighLighter® Elite Multi-flash Mini Light Bar - Amber Dome

PART NO: 2RL 980 310-021

Add to favourites
Mount Riser 52mm - Suit LED Highlighter Elite Mini Light Bar

Mount Riser 52mm - Suit LED Highlighter Elite Mini Light Bar

PART NO: 8HG 980 311-001

Add to favourites

Specifications

Mounting

Surface Mount

Voltage

12V/24V DC

Power Consumption

24W (2.0A @ 12 V DC/ 1.0A @ 24 V DC)

Temperature

Operating range -40° to +65°C

Flash Patterns

25 selectable flash patterns.

Protection

Reverse polarity protection
IP 69K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Supplied with 305mm wire harness

Compliance

SAE J845 Class 1

Note

Replaces 2RL 980 310-021 (24V) / -001 (12V)

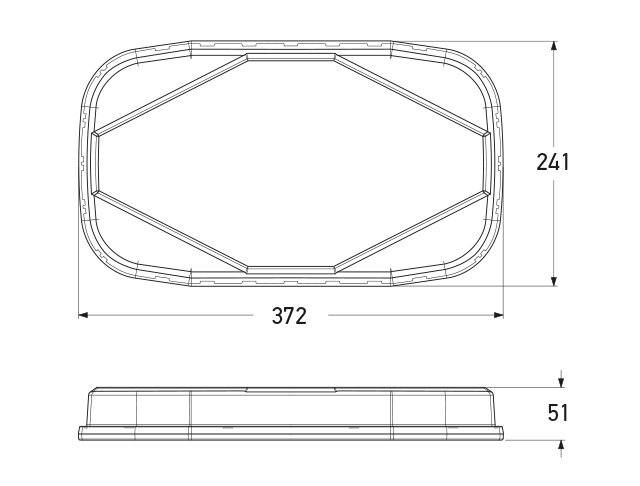

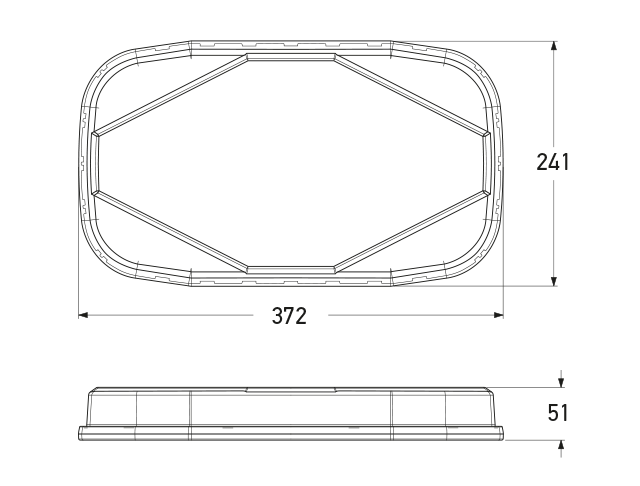

Outline

All dimensions in mm
All dimensions in mm

Documents

Document File Name File Size
  HighLighter® Elite Manual 25500775.pdf 1.72 MB
