HELLA

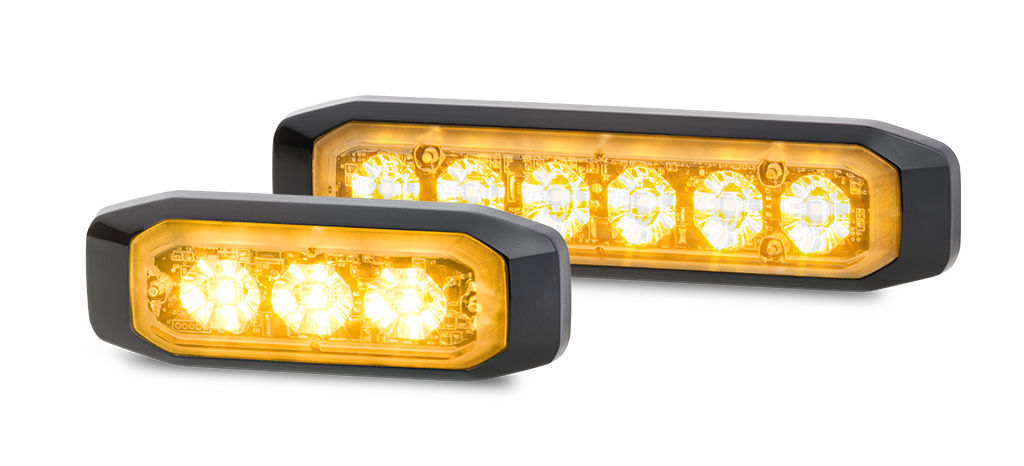

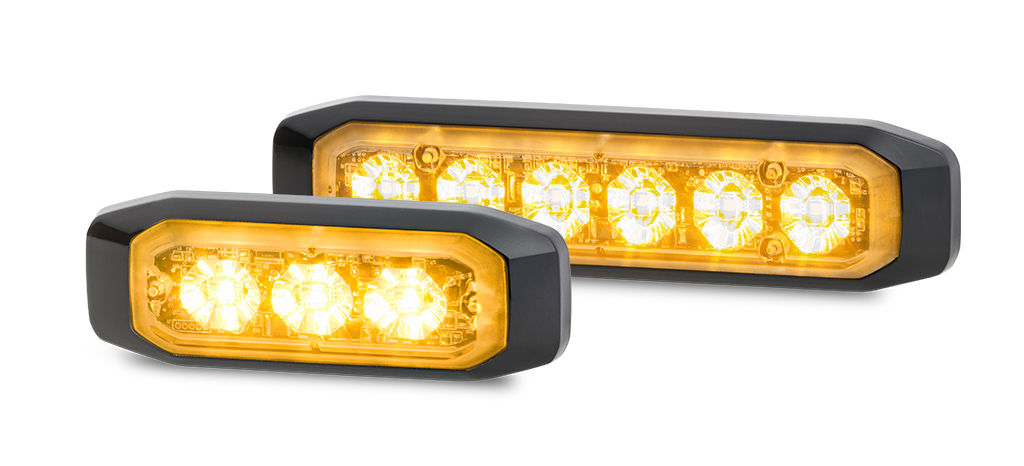

Multi-flash Slim LED Amber Warning Lamp

The Multi-flash Slim Signal Warning Lamp offers up to 18 different flash patterns (10 base patterns available on all 3 and 6 LED models, with 8 additional patterns available on 6 LED models), compliant to SAE J595 Class 1 – being the brightest class, and is suitable for on road use. The lamps are Multivolt™ so may be used on 12V or 24V vehicles.

The high power LEDs produce an optimum signalling effect via the high-quality precision lens. The tough lens combined with a strong alloy base allows the lamp to come with a 5 year warranty for extra peace of mind.

An additional feature on the 6 LED version is night mode, wired into the headlamp circuit, which dims the lamp to ½ output so not to dazzle or create blinding glare. The lamps are supplied in pairs and come complete with gasket and mounting screws.

➔ High performance LEDs
➔ Up to 18 different flash patterns
    (10 on 3 LED, 18 on 6 LED models)

➔ Multiple lamps may be synchronised
➔ Slim surface mount design
➔ Supplied in pairs

➔ Dimmable option (6 LED version)
➔ 5 Year warranty

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

Multi-flash

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

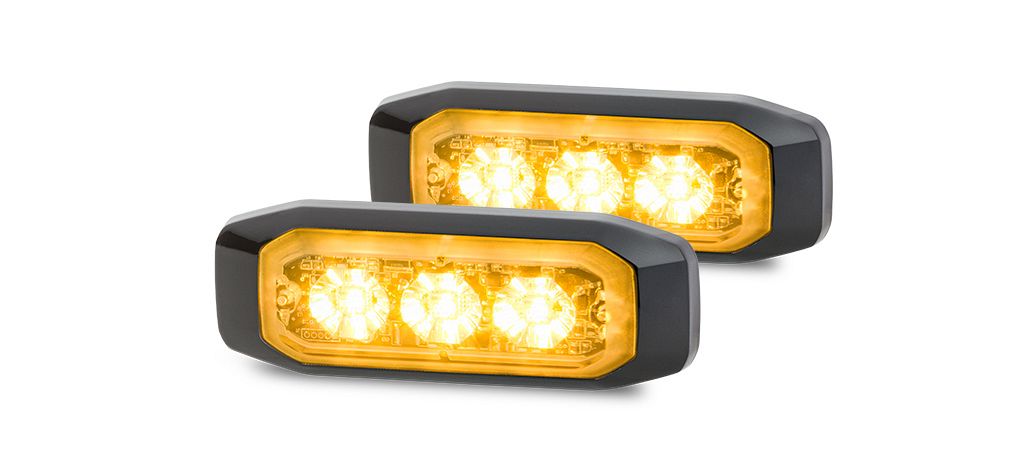

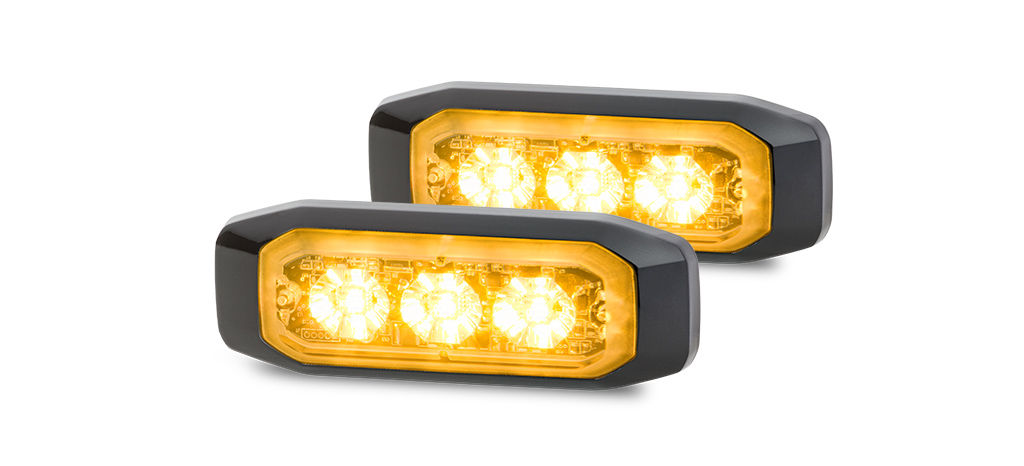

Multi-flash Slim 3 LED Amber Warning Lamp (Pair)

PART NO: 2XD 014 563-401

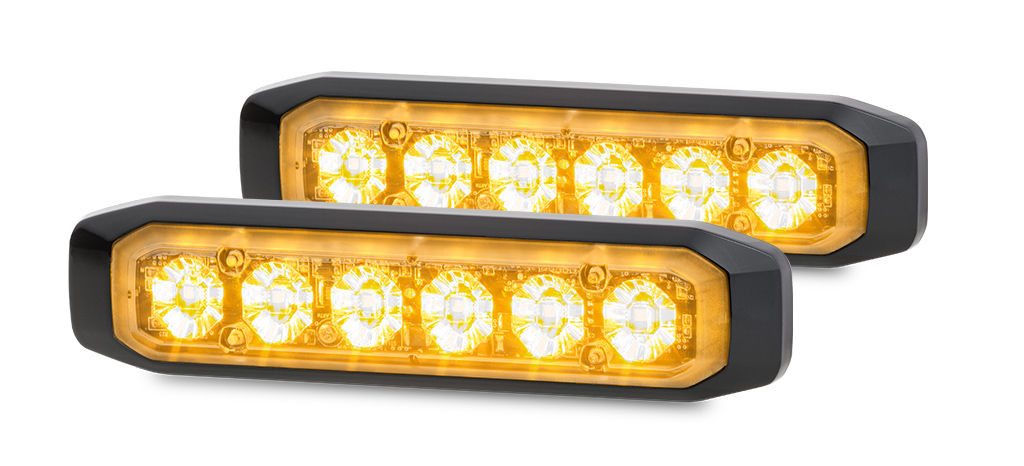

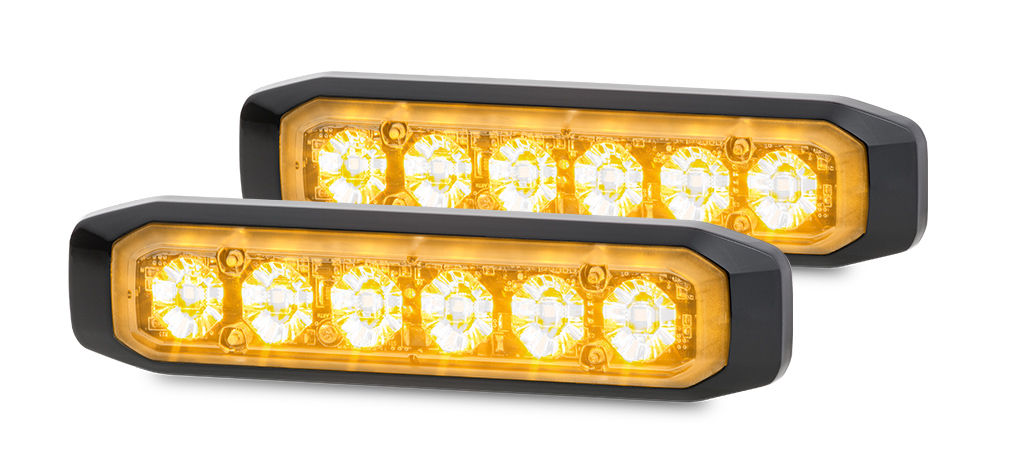

Multi-flash Slim 6 LED Amber Warning Lamp (Pair)

PART NO: 2XD 014 562-401

Specifications

Mounting

Surface mount

Voltage

Multivolt™ for optimum brightness at input voltages from 11-30V DC

Power Consumption

3 LED 8.5W Max.
6 LED 17W Max.

Protection

IP X7
IP X9K

Cable Length

250mm

Compliance

ECE-R10 CISPR 25 Class 5 SAE J595 Class 1 Amber

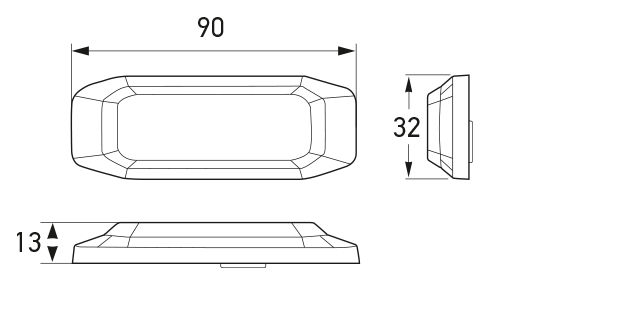

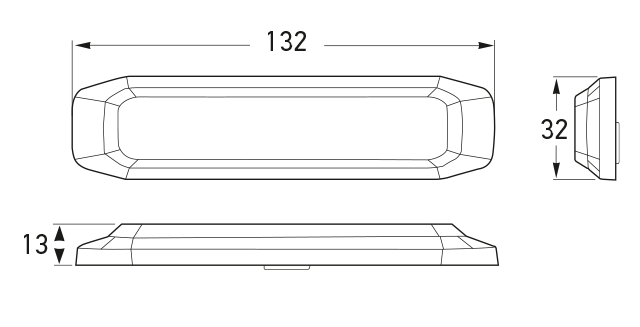

Outline

All dimensions in mm
All dimensions in mm
All dimensions in mm
All dimensions in mm

Light Output

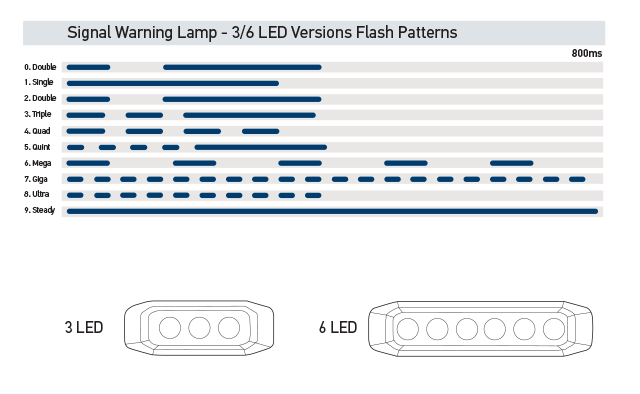

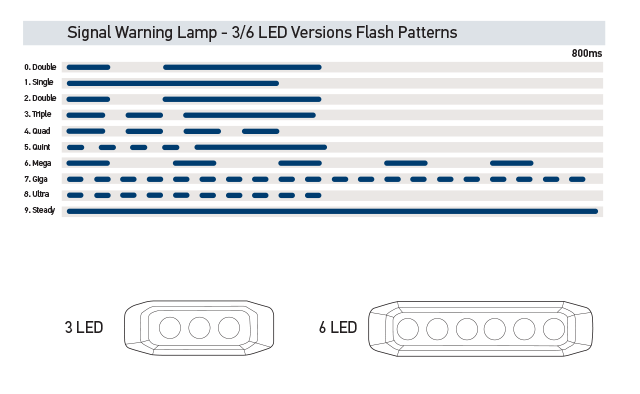

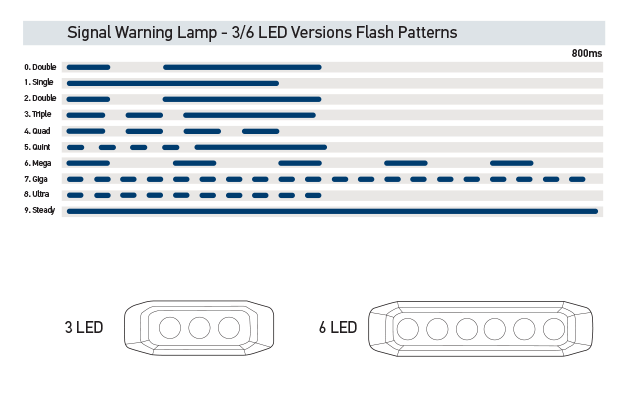

10 Flash patterns available on all 3 and 6 LED models.
10 Flash patterns available on all 3 and 6 LED models.

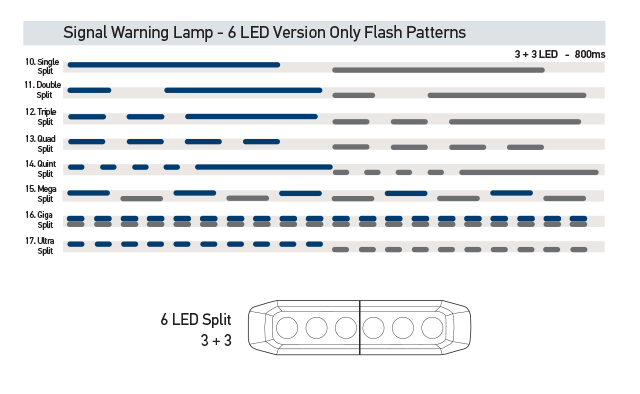

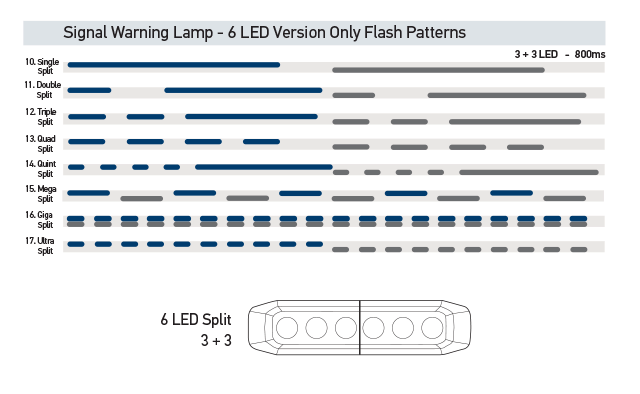

Additional 8 Flash patterns available exclusively on 6 LED versions.
Additional 8 Flash patterns available exclusively on 6 LED versions.
