HELLA

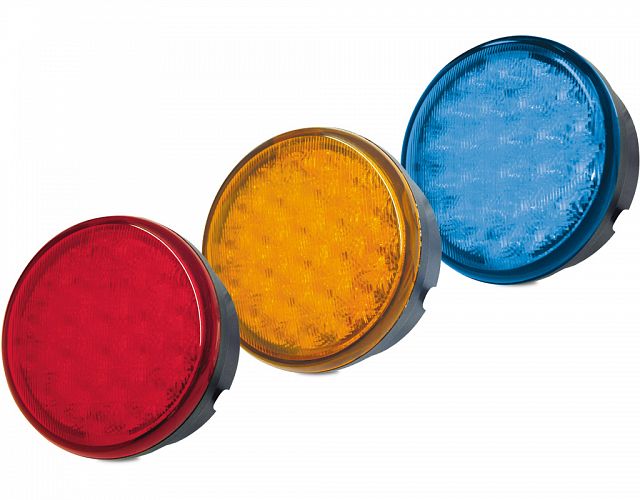

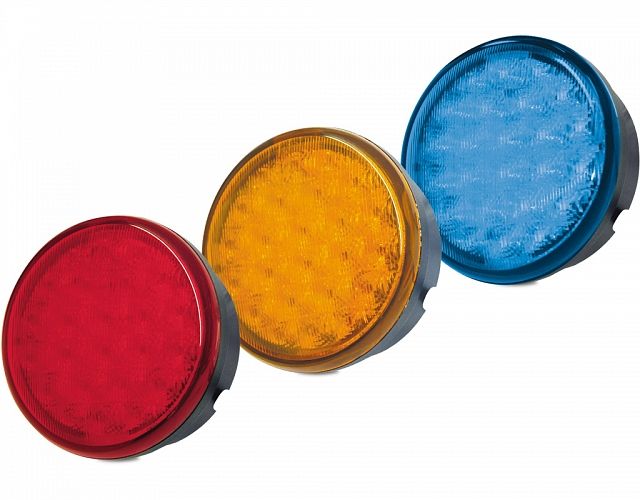

83mm Round LED Multi-flash Signal Lamp

83mm diameter round LED signal lamps with single bolt mount for emergency vehicles. The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

Multi-flash

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

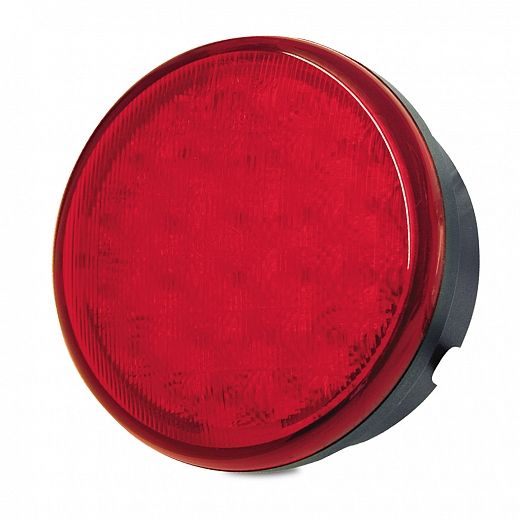

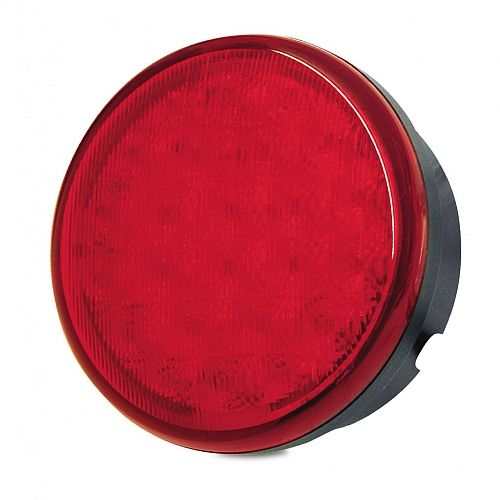

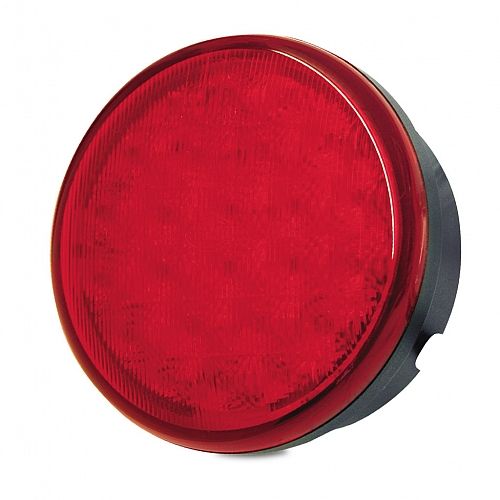

83mm Round LED Multi-flash Signal Lamp - Red

83mm Round LED Multi-flash Signal Lamp - Red

PART NO: 2XD 959 011-402
Legacy PN: 95901140

Add to favourites

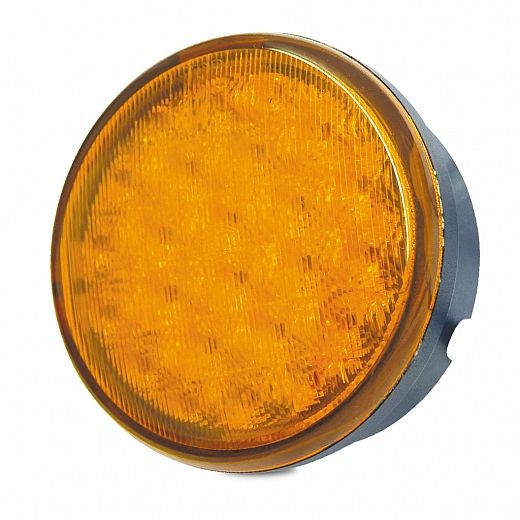

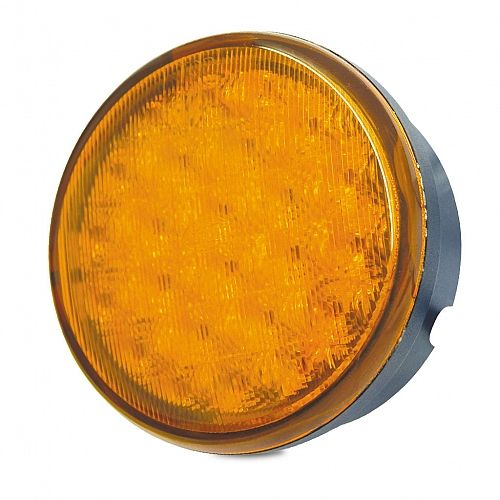

83mm Round LED Multi-flash Signal Lamp - Amber

83mm Round LED Multi-flash Signal Lamp - Amber

PART NO: 2XD 959 011-452
Legacy PN: 95901145

Add to favourites

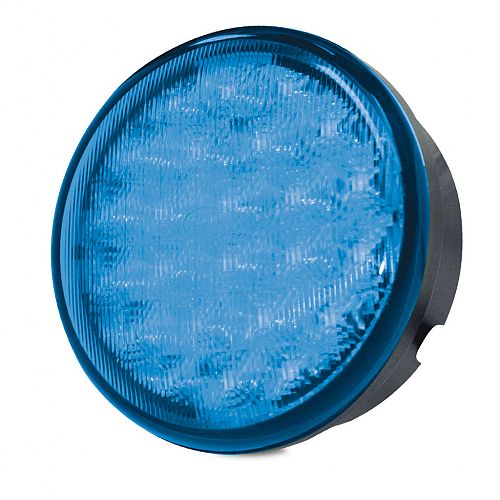

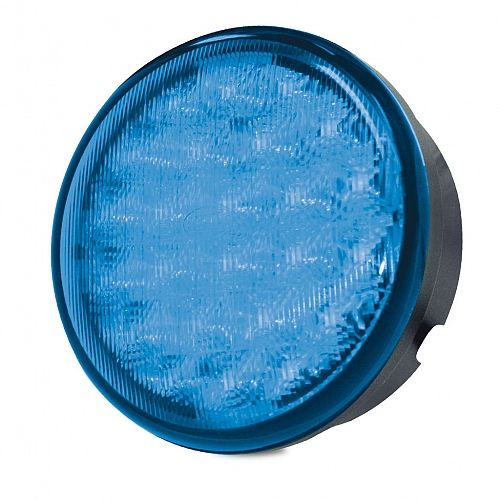

83mm Round LED Multi-flash Signal Lamp - Blue

83mm Round LED Multi-flash Signal Lamp - Blue

PART NO: 2XD 959 011-602
Legacy PN: 95901160

Add to favourites

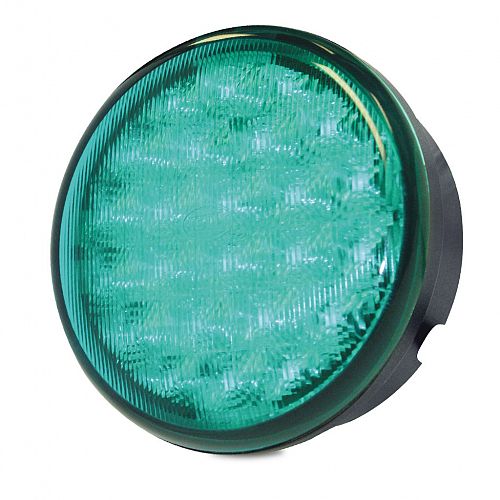

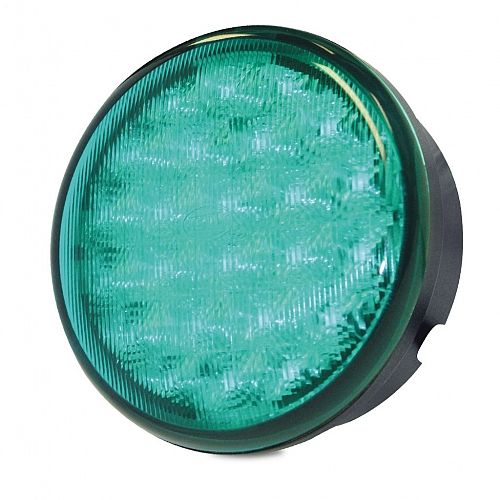

83mm Round LED Multi-flash Signal Lamp - Green

83mm Round LED Multi-flash Signal Lamp - Green

PART NO: 2XD 959 011-652
Legacy PN: 95901165

Add to favourites

Specifications

Mounting

Single bolt 1/4" stainless UNC thread. Nut and washer supplied.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

6W continuous (less in flashing modes).

Protection
Reverse polarity and voltage spike protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Compliance
EMC e4 03 1681

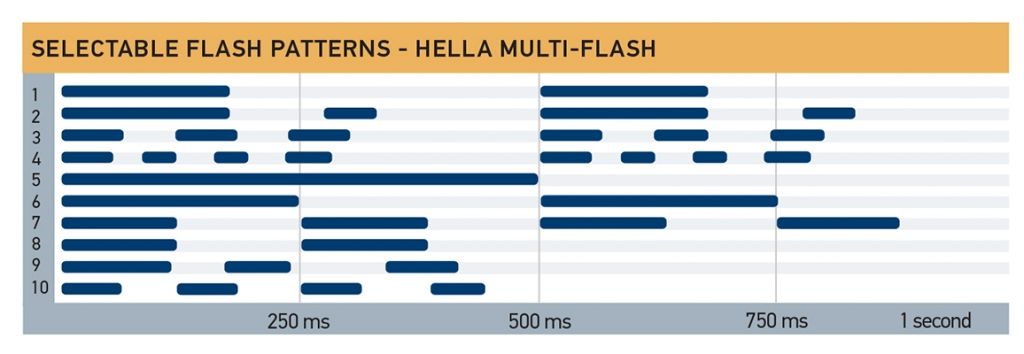

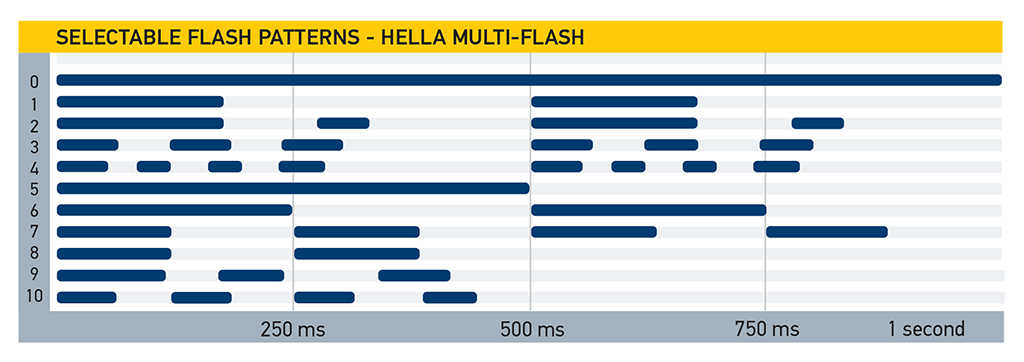

Flashing Options
Steady state Lamp operates as a continuous ON signal
Independent flash Lamp operates from an external flashing system
Flash state Lamp operates in the flash mode preselected by the user
Blitz state Lamp operates in a burst of quad flashes (pattern 4)
The blitz mode overrides the other operating modes and is triggered by switching the blue cable to negative (-).

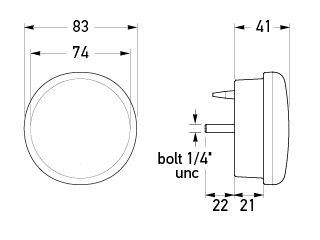

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  959011XX Instruction Sheet.pdf 361.19 KB
