HELLA

LED 360° Multi-flash Signal Warning Lamp

Multi-purpose LED 360º warning lamp with clear Grilamid® lens, available in four signal colours and white. This range of warning lamps has 10 programmable flash modes, and can be synchronised to flash alternately or in unison.

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

Multi-flash

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

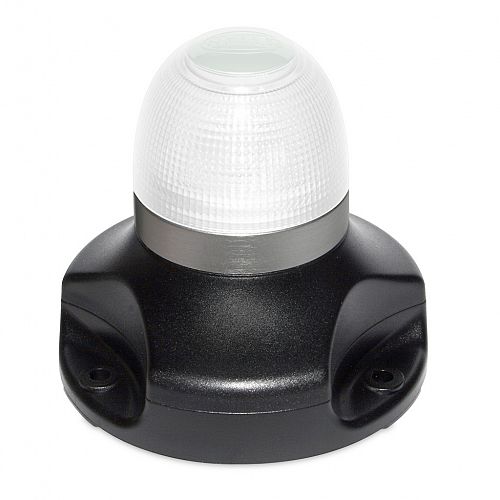

LED 360° Multi-flash Warning Lamp - White with Black Housing

PART NO: 2XD 980 911-001

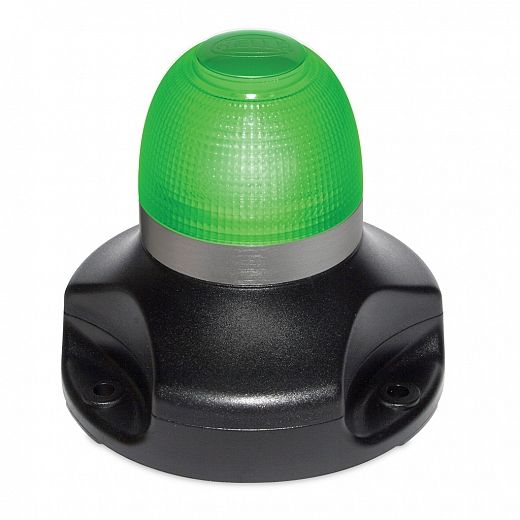

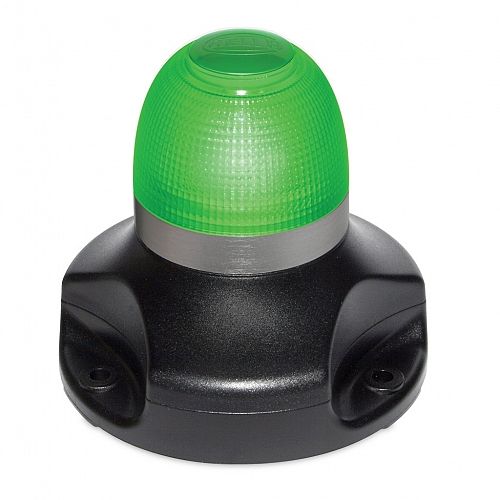

LED 360° Multi-flash Warning Lamp - Green with Black Housing

PART NO: 2XD 980 911-202

LED 360° Multi-flash Warning Lamp - Red with Black Housing

PART NO: 2XD 980 911-401

LED 360° Multi-flash Warning Lamp - Amber with Black Housing

PART NO: 2XD 980 911-601

LED 360° Multi-flash Warning Lamp - Blue with Black Housing

PART NO: 2XD 980 911-701

Specifications

Mounting

Suitable for upright mounting with three point mount.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

5W continuous (less in flashing modes)

Protection

Reverse polarity, spike and over voltage protection.
IP 67 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Grilamid®

Approval Markings

E4 10R 04-2914

Note

These lamps are not ECE compliant.

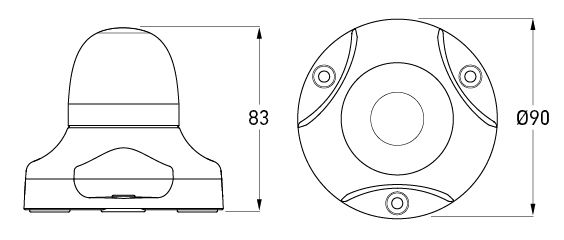

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2XD 980 911-xx Instruction Sheet.pdf 310.36 KB
