HELLA

90mm H7 Headlamp

Compact H7 headlamps with glass lens for buses, coaches and mobile homes. Rear cap and headlamp adjusters included. Two pole plugs and mounting frames if required are sold separately. Supplied with 24V bulbs, for 12V applications please replace bulbs with 12V

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

24 Volt Bulb Included

Options

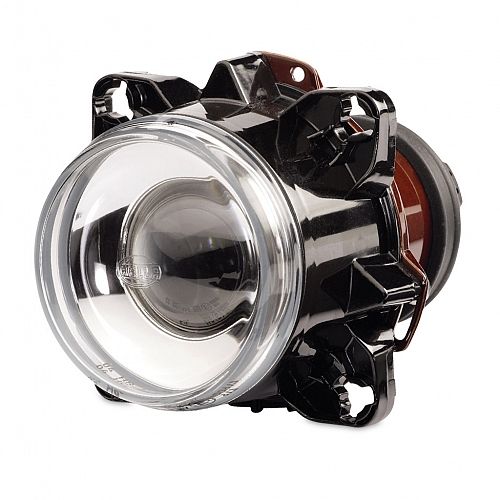

90mm H7 Headlamp - Dipped Beam

PART NO: 1BL 008 193-041
Legacy PN: 102924V

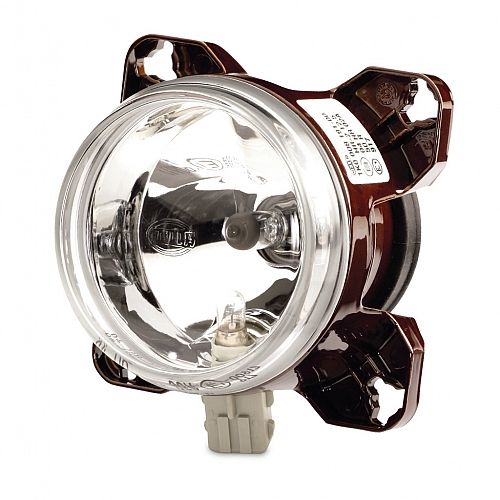

90mm H7 Headlamp - Main Beam

PART NO: 1K0 008 191-141
Legacy PN: 103024V

Specifications

Bulbs to Suit

  12V 24V
Dipped/Main beam: CA1255 CA2470
Position (1030-24V only): HL124 HL244

Spare Parts

9GH 152 654-007 Rear cap
8JD 156 150-807 Two pole plug with terminals and seals
9.1029.09 Mounting frame

Compliance

E1 917

Outline

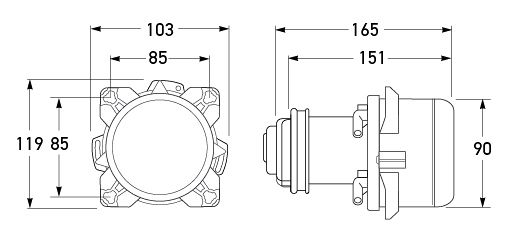

P/N 1029-24V - All dimensions in mm.

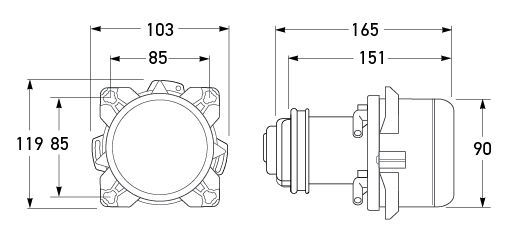

P/N 1029-24V - All dimensions in mm.

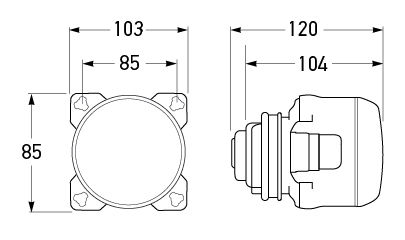

P/N 1030-24V - All dimensions in mm.

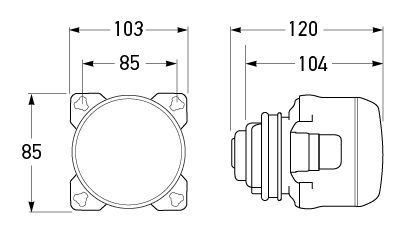

P/N 1030-24V - All dimensions in mm.
