90mm H1 Headlamp

H1 headlamps with die cast aluminium reflector and hardened glass lens.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

24 Volt Bulb Included

Options

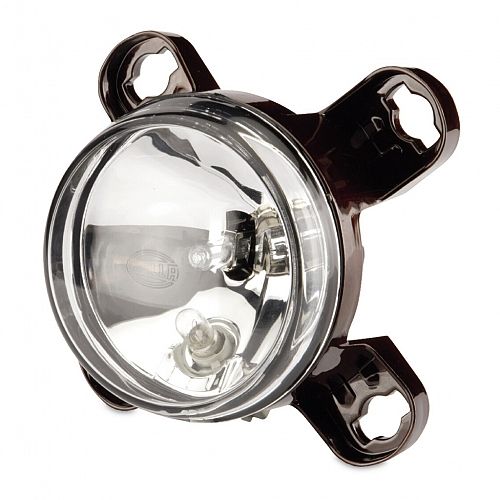

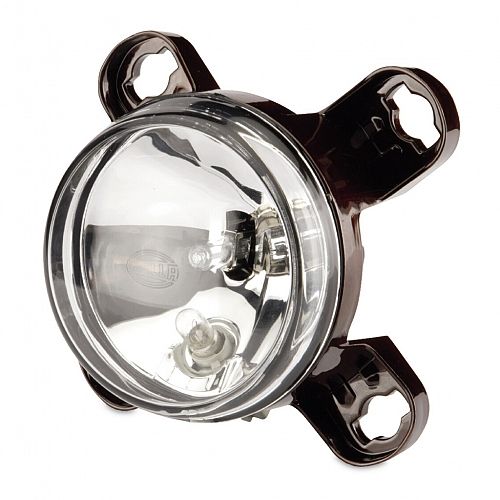

90mm H1 Headlamp - Dipped Beam

90mm H1 Headlamp - Dipped Beam

PART NO: 1ML 247 042-041
Legacy PN: 1029H124V

Add to favourites

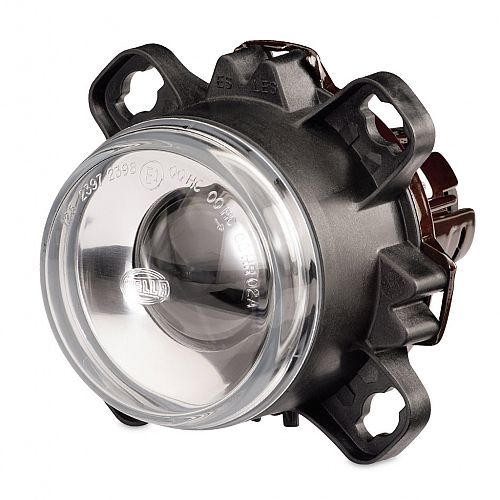

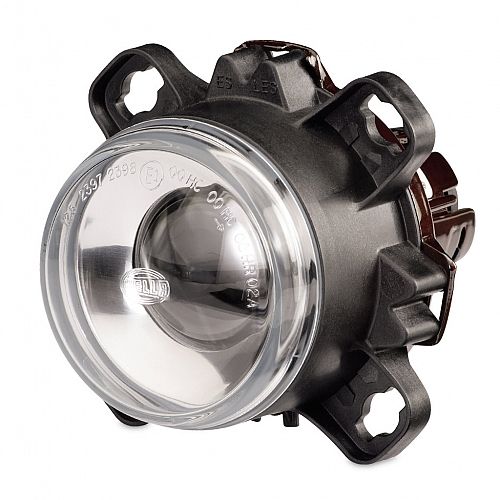

90mm H1 Headlamp - Main Beam

90mm H1 Headlamp - Main Beam

PART NO: 1K0 247 043-041
Legacy PN: 1030H124V

Add to favourites

Specifications

Bulbs to Suit
  12V 24V
Dipped/Main beam: C1255 C2470
Position (1030H1-24V only): HL124 HL244

Spare Parts
9GH 152 654-007 Rear cap
8JD 156 150-807 Two pole plug with terminals and seals
9.1029.10 Mounting frame

Compliance
Dipped Beam E1 2398   Main Beam E1 2397

Outline

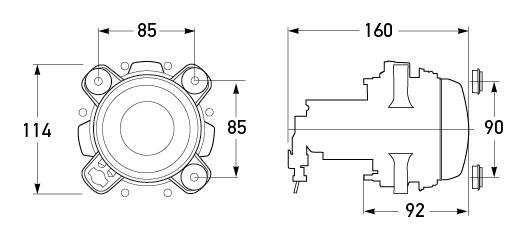

P/N 1029H1-24V (Dipped Beam) - All dimensions in mm.
P/N 1029H1-24V (Dipped Beam) - All dimensions in mm.

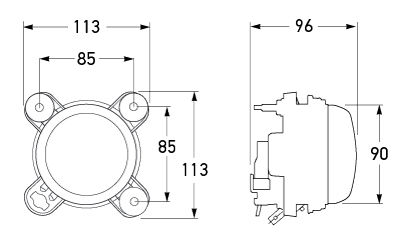

P/N 1030H1-24V (Main Beam) - All dimensions in mm.
P/N 1030H1-24V (Main Beam) - All dimensions in mm.
