HypaLUME 110/230V AC LED Flood Light

The 110-230V AC HypaLUME has been designed for applications where high output lighting in extreme environments is required. The lamp produces a net output of 28,000 lumens at a voltage input range of 110-230V AC whilst only consuming 300W.

Comprehensive sealing and anti-corrosion measures have been taken to ensure this lamp with stands the toughest conditions. The premium aluminium housing is corrosion resistant with a non-stick and easy to clean surface coating. Heavy duty Grilamid^® lens offers unbeatable toughness against impacts and vibration while providing long term UV stability and resistance to commonly used chemicals for the life of the product. The LEDs have a colour temperature of 5700K to provide a near daylight work environment that is optimal for fatigue avoidance and high alertness.

The LED driver electronics ensure light output remains stable over a wide range of voltage variations. The HypaLUME is also protected from over voltage and short circuit faults. The HypaLUME is designed to operate over a temperature range from -40°C to +50°C.

To view and download more information please click here

To find a HELLA reseller near you, click here.

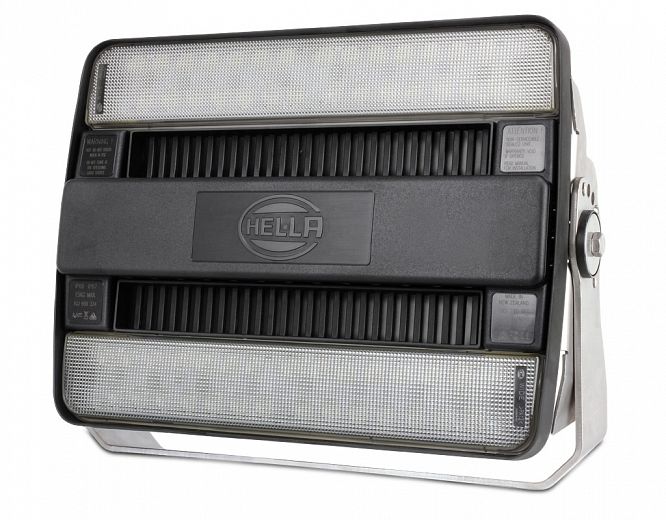

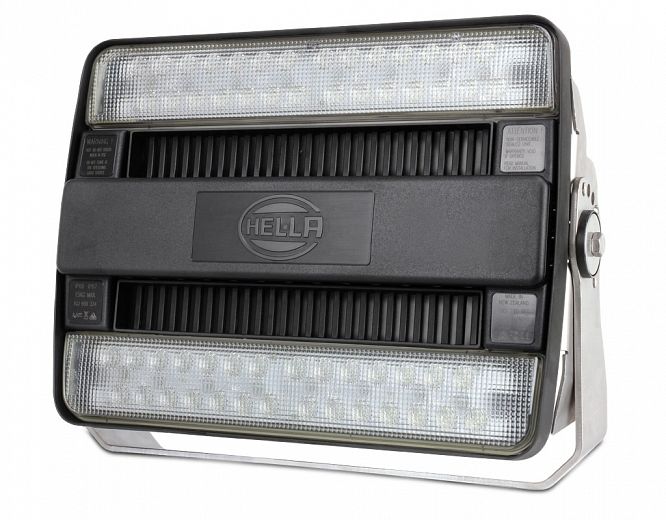

P/N 1GJ 958 334-011 (Close range)

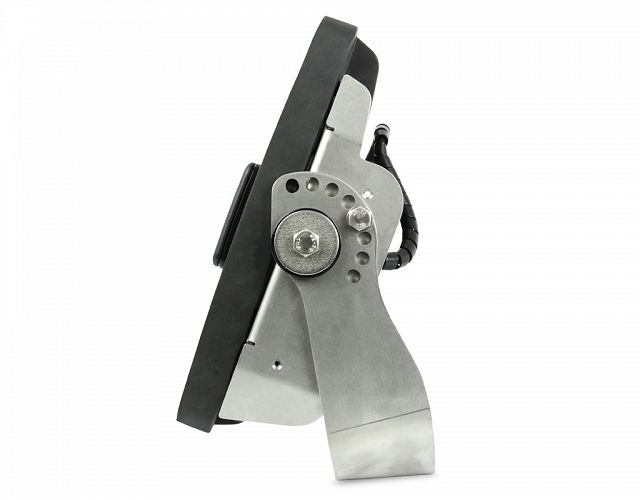

Side view

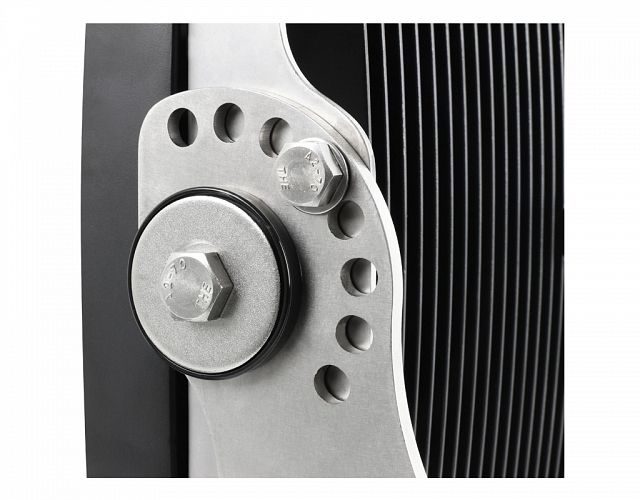

Secure locking mechanism

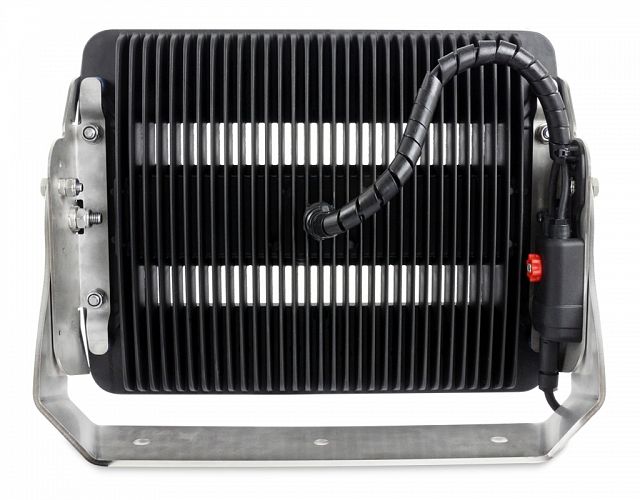

Rear view

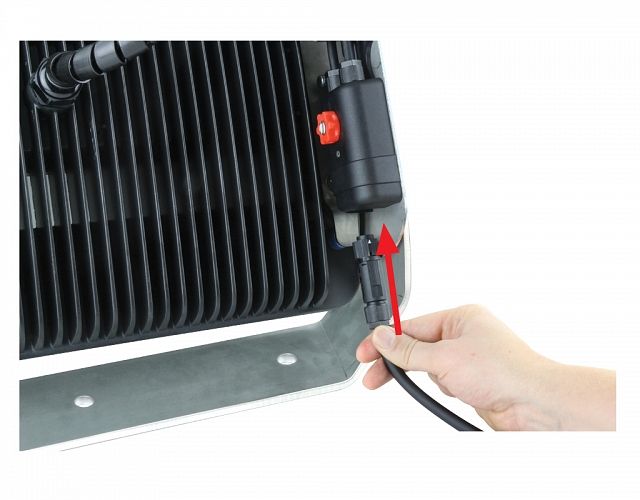

Supplied with 2.0m of easy plug-in sheathed cable

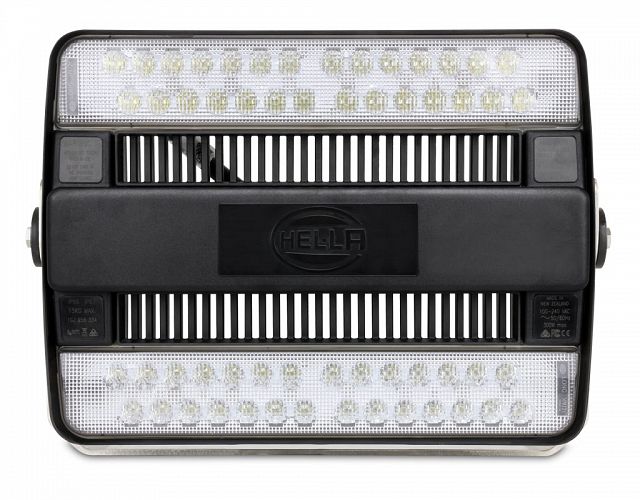

Front view

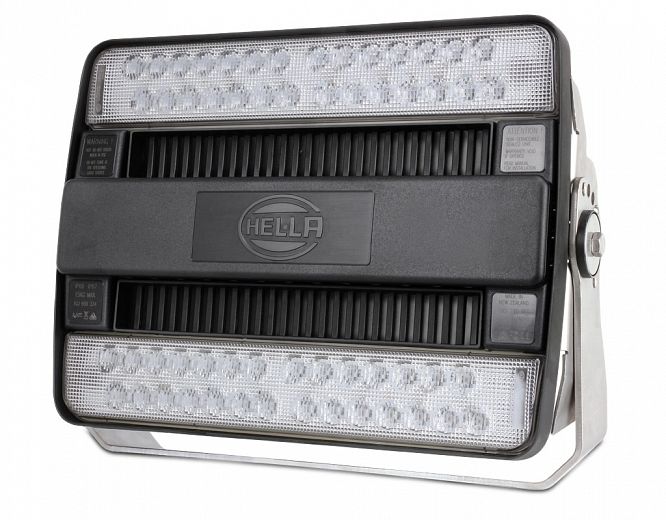

P/N 1GJ 958 334-021 (Long Range)

P/N 1GJ 958 334-031 (Extra Wide)

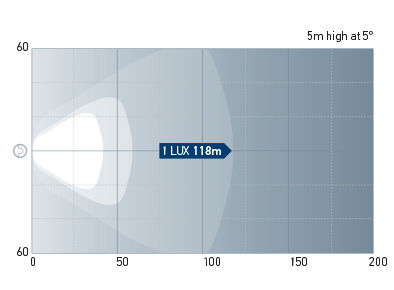

Beam pattern: 1GJ 958 334-011 - Close Range

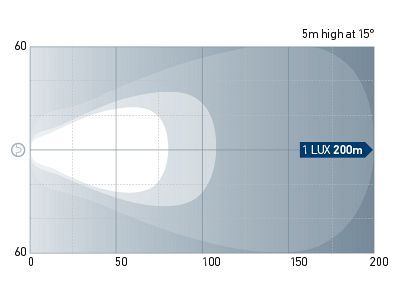

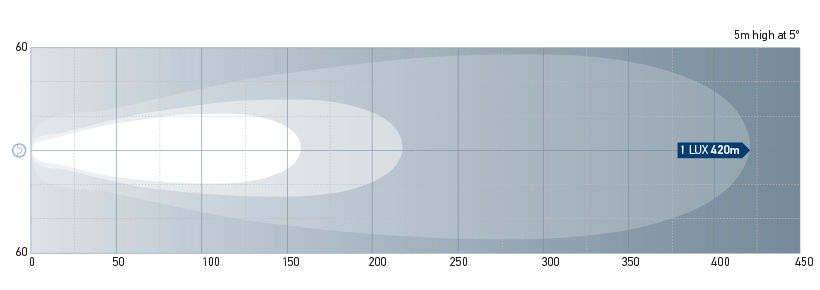

Beam pattern: 1GJ 958 334-021 - Long Range

Beam pattern: 1GJ 958 334-031 - Extra Wide

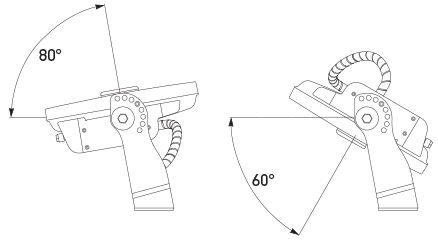

Lamp can be rotated 140°

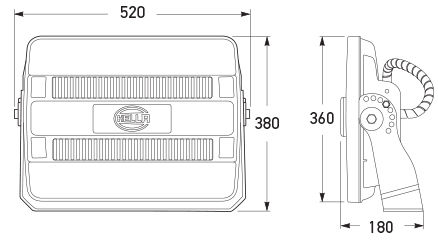

All dimensions in mm

Rollover/tap the icons below for further details:

LED Technology

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid^® Lens

Grilamid^® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Heavy Duty Mount

Sturdy housing design for use under heavy duty conditions.

Stainless Steel Bracket

Benefits include strength and corrosion resistance.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

HypaLUME 110/230V AC LED Flood Light - Heavy Duty - Close Range

PART NO: 1GJ 958 334-011

Add to favourites

HypaLUME 110/230V AC LED Flood Light - Heavy Duty - Long Range

PART NO: 1GJ 958 334-021

Add to favourites

HypaLUME 110/230V AC LED Flood Light - Heavy Duty - Extra Wide

PART NO: 1GJ 958 334-031

Add to favourites

Specifications

Mounting

Upright or pendant.

Voltage

Optimum brightness at input voltages from 100 to 240V AC

Power Consumption

300W max.

Actual Light Output

28,000 lumen

Operating Temperature

-40^oC to +50^oC

LED Colour Temperature

5700 K

Protection

IP 66 (Protection against dust and high pressure water jets)
IP 67 (Protection against dust and temporary water immersion)
Over voltage (Up to 305V for 30 sec), short circuit and over temperature protection
