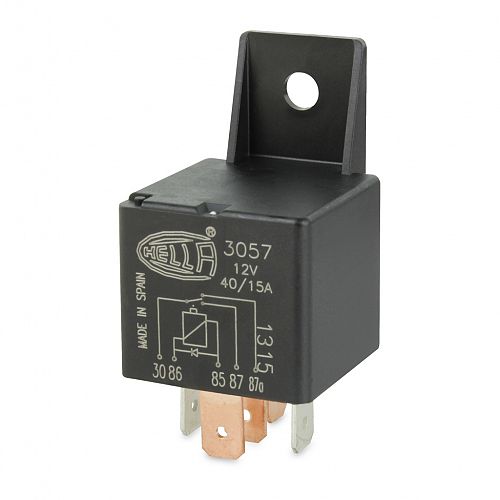

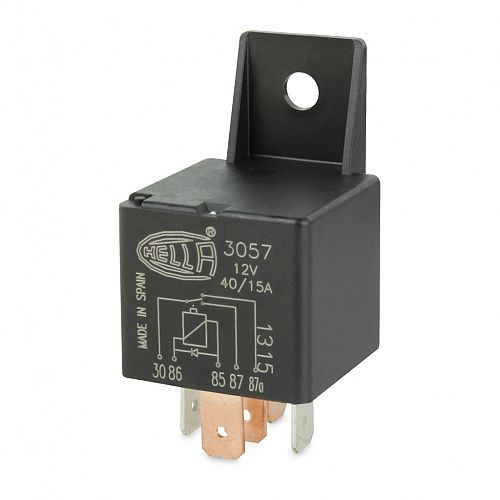

12V 5 Pin Change-over Mini Relay - 40/15A - Diode

PART NO: 4RD 905 330-023
Legacy PN: 3057

Specifications

Voltage

12V

Pins

5 Pin

Function

Change-over

Protection

Diode

Pin Designations

Terminal Number Connect to
85/2 Earth (end of winding to ground or negative).
86/1 Positive.
87/5 Output (to consumer e.g. driving lamp).
87a/4 Alternative output (1st output, break side).
30/3 Positive supply (Input from + battery terminal, direct).

Maximum Load

Terminals Amperage
30-87 40A
30-87a 15A

Current Draw

170mA

Bracket

Yes

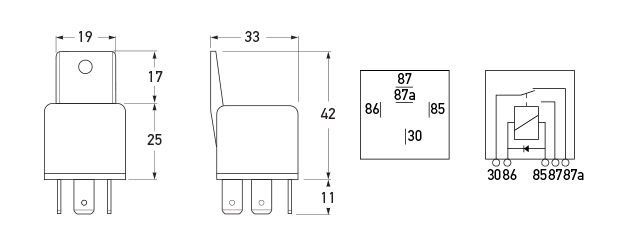

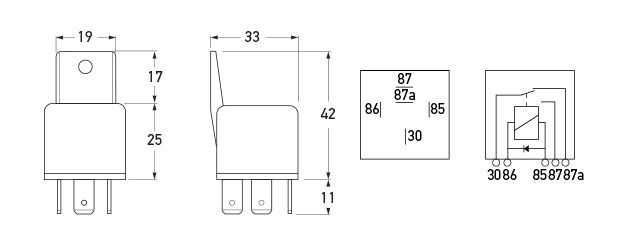

Outline

All dimensions in mm.
All dimensions in mm.
