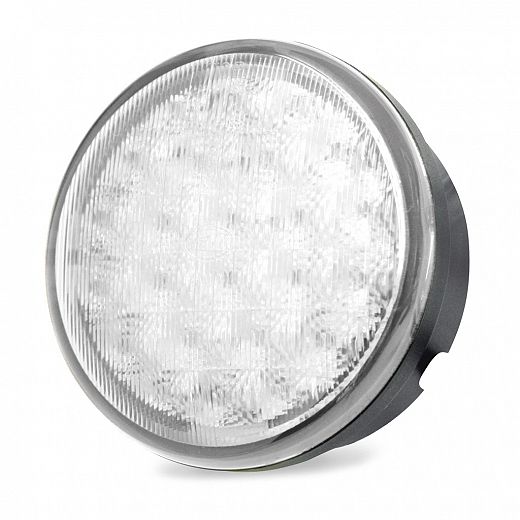

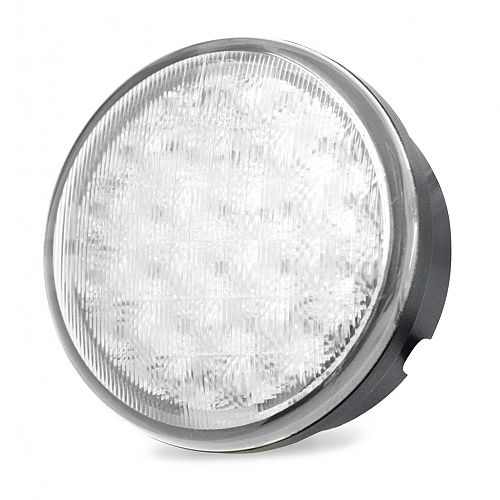

83mm Round LED Reversing Lamp

Compact, low profile LED reversing lamp with polycarbonate lens.

Low power consumption – Long service life
Economical running costs

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

To find a HELLA reseller near you, click here.

P/N 1490 (83mm Round LED Reversing Lamp)

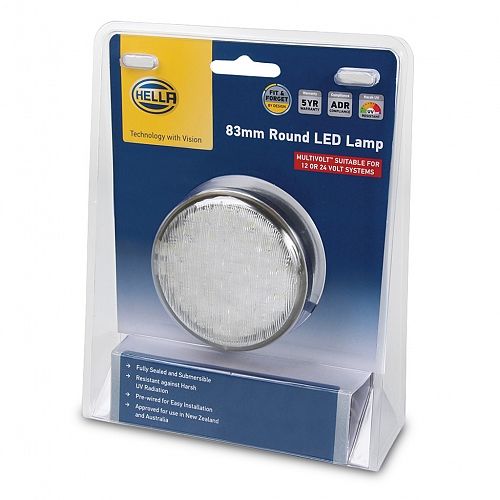

P/N 1430-BL (Blister Pack)

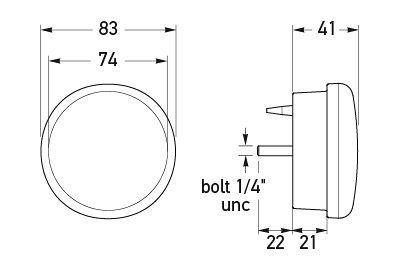

All dimensions in mm.

Rollover/tap the icons below for further details:

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

83mm Round LED Reversing Lamp

PART NO: 2ZR 959 010-512
Legacy PN: 1490

Add to favourites

83mm Round LED Reversing Lamp - Blister Pack

PART NO: 2ZR 959 010-521
Legacy PN: 1490BL

Add to favourites

83mm Round LED Reversing Lamp - Bulk Pack 10

PART NO: 2ZR 959 010-517
Legacy PN: 1490BULK

Add to favourites

Specifications

Mounting

Flush Mount. Single bolt 1/4" stainless UNC thread. Nut and washer supplied.

Voltage

Multivolt^™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)
