HELLA

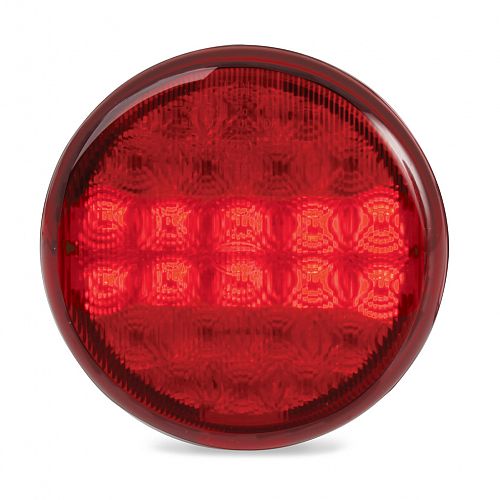

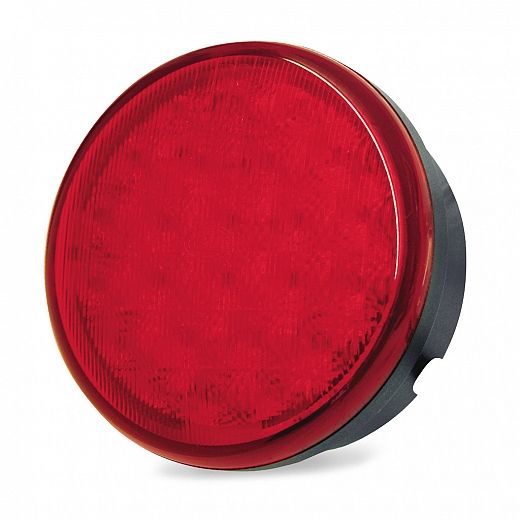

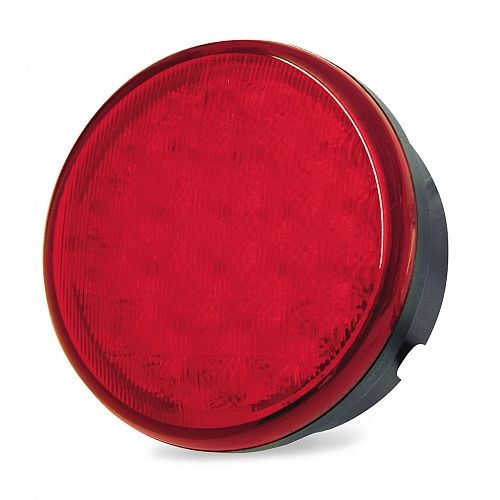

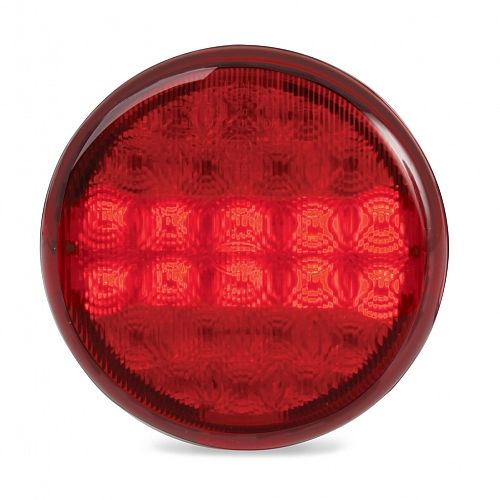

83mm Round LED Stop/Rear Position Lamp

LED stop, rear position lamp with red high impact acrylic lens feturing Enhanced Definition Technology (EDT) and HELLA Ultra Wide Visibility Optics for significantly improved side visibility.

Low power consumption – Long service life
Economical running costs

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

83mm Round LED Stop/Rear Position Lamp

PART NO: 2SB 959 010-032
Legacy PN: 2390

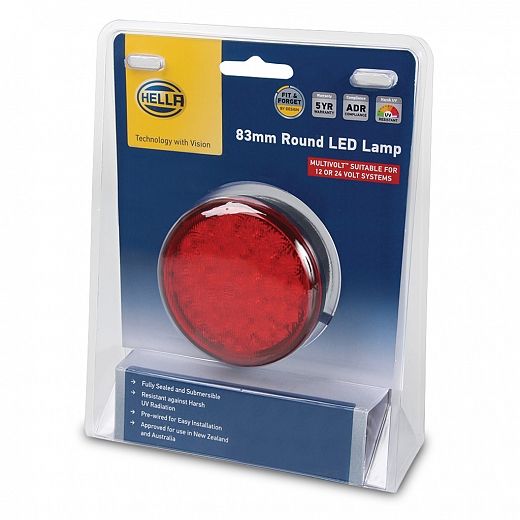

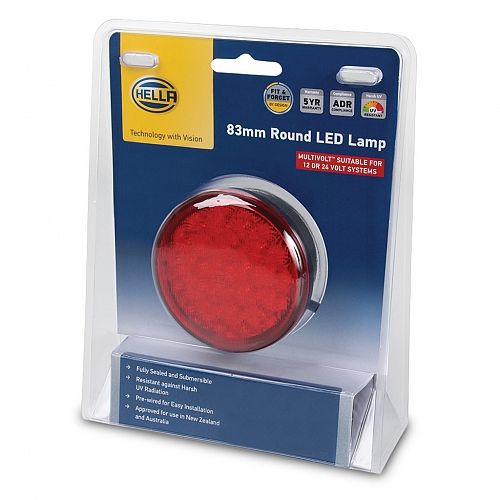

83mm Round LED Stop/Rear Position Lamp - Blister Pack

PART NO: 2SB 959 010-041
Legacy PN: 2390BL

83mm Round LED Stop/Rear Position Lamp - Bulk Pack 10

PART NO: 2SB 959 010-037
Legacy PN: 2390BULK

Specifications

Mounting

Flush mount. Single bolt 1/4" stainless UNC thread. Nut and washer supplied.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

Stop: 3W
Rear position: 1W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Compliance

ADR 49/00 E4 11391 ECE R7/02

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2SB 959 010-0xx_Instructions_2390_2390-BULK_83mm_Round_Stop-Tail.pdf 290.33 KB
