HELLA

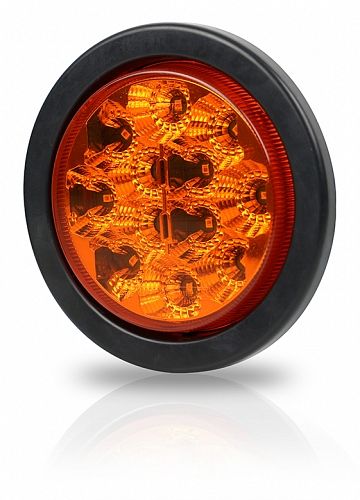

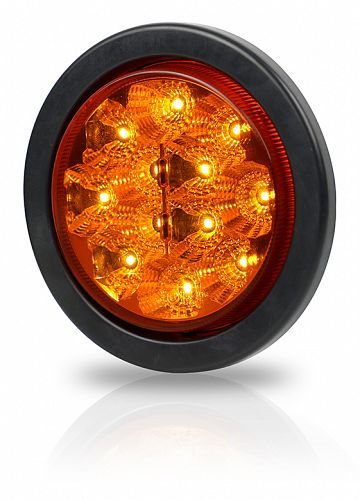

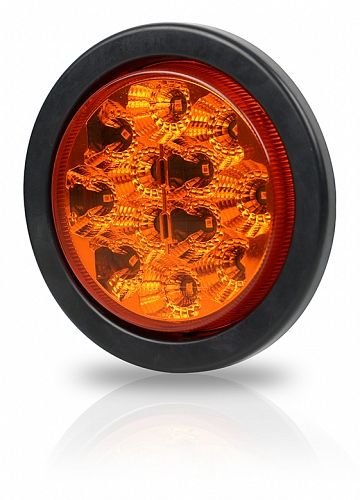

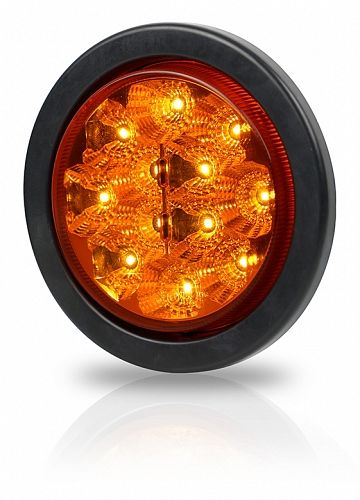

Optilux 4" Round Series LED Rear Indicator Lamp

The Optilux 4 inch round series signal lamps are ideal for Trucks, Trailers and RVs, offering a cost-effective option in a fashionable round housing. These lamps operate on both 12V and 24V voltage inputs and are supported with a 2 year warranty.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

2 Year Warranty

Options

Optilux 4" Round Series LED Rear Indicator Lamp

PART NO: 2BA 328 870-051

Optilux 4" Round Series LED Rear Indicator Lamp (Bulk x56)

PART NO: 2BA 328 870-057

Specifications

Mounting

ø115 mm ± 1mm opening, 2mm ± 0.5mm panel thickness

Voltage

Dual-voltage suitable for 12 or 24 volt systems.

Power Consumption

Indicator: 6.5W

Protection

IP 67 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet)

Cable Length

300mm cable, stripped and tinned

Compliance

ECE R10/05 EMC
ECE R6/01 E9 16240

Note

Lamp is supplied with a mounting grommet

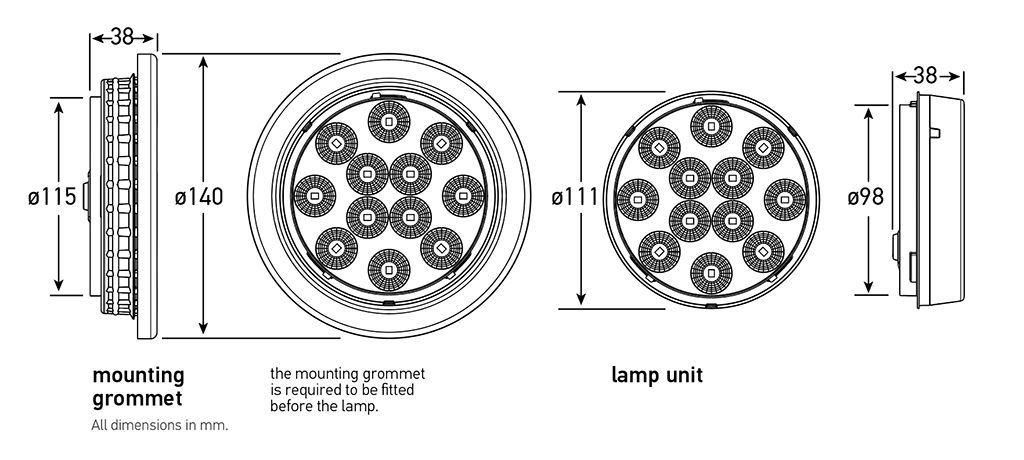

Outline


Top
