HELLA

Flexible Map Reading Lamp

Flexible black arm. Lamp head has an integral rocker on/off switch and is fitted with a clear diffuser lens for glare-free illumination. Pillar or dash mounting.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

12 Volt Bulb Included

Options

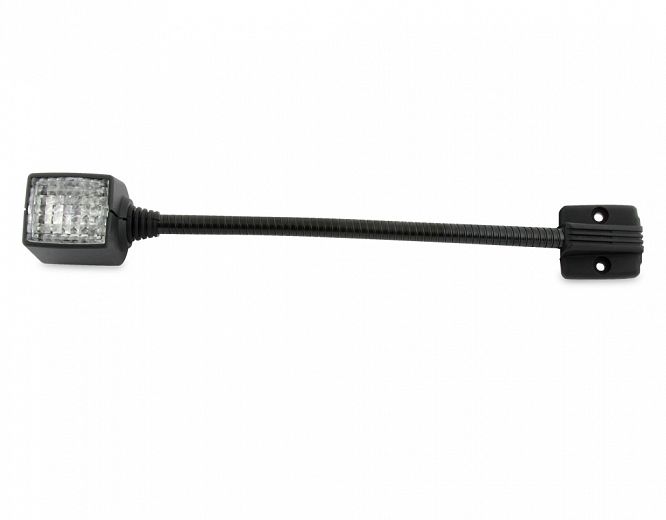

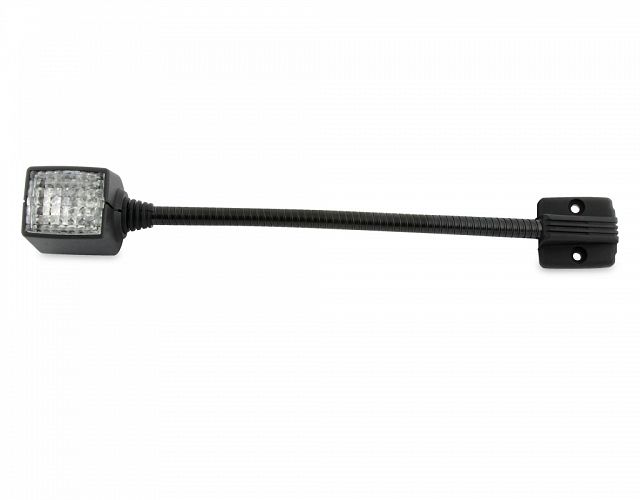

Flexible Map Reading Lamp - 195mm Arm

PART NO: 2AB 004 532-171
Legacy PN: 2633

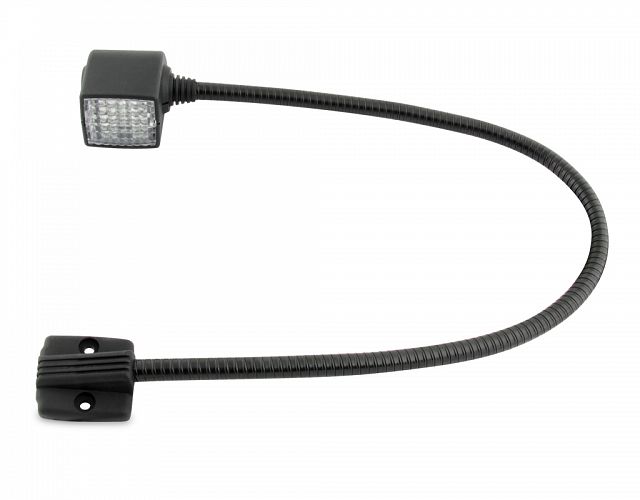

Flexible Map Reading Lamp - 500mm Arm

PART NO: 2AB 004 532-161
Legacy PN: 2636

Specifications

Mounting

Screw mount.

Power Consumption

5W

Bulbs to Suit

12V HL126X
24V HL247

Spare Parts

128 922 02 Clear lens

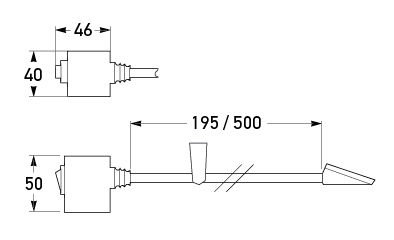

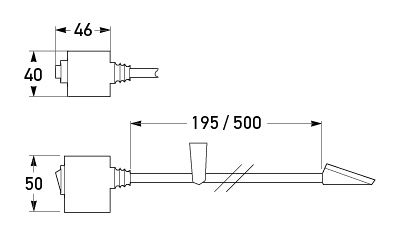

Outline

All dimensions in mm.
All dimensions in mm.

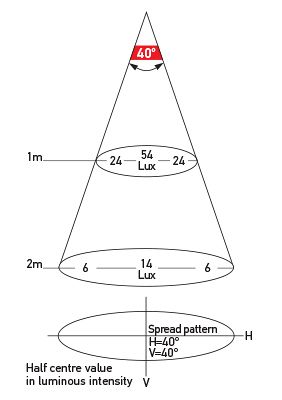

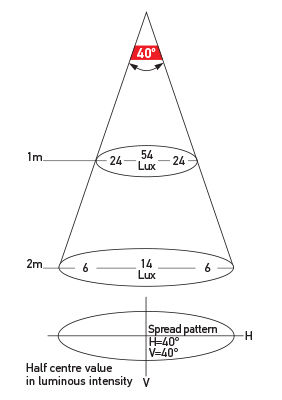

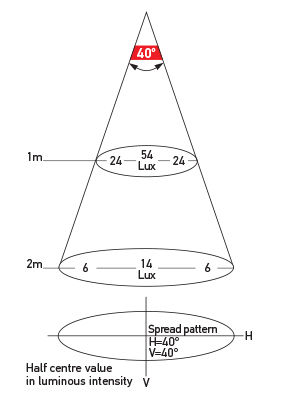

Light Output

Illumination Chart
Illumination Chart
