EuroLED® 75 Square LED Down Lights

Enhance interior and exterior spaces with a European inspired square design. The EuroLED® 75 Square down lights are reliable, highly energy efficient and provide long lasting illumination.

The latest LED technology delivers exceptional colour rendering, reproducing colours in their natural richness. The EuroLED® 75 Square replicates the pleasing appearance of a traditional lamp but contains all the advantages of a high efficacy, durable solid state light - giving you the best of both worlds.

Available in warm white or white, which will beautifully enhance the materials of your caravan or camper. Screw mounted, pre-wired and sized for a standard cut out make new or refit installation a breeze.

Suitable for both interior and exterior applications, wet or dry, the EuroLED® 75 Square lamps are also completely sealed - IP67 rated. Manufactured using high-grade materials these lamps will not corrode, fade or embrittle even in a harsh marine environment.

Have complete peace of mind knowing the EuroLED® 75 Square lamps are tested and proven in the toughest conditions and supported with a leading 5 year warranty.

Rollover/tap the icons below for further details:

LED Technology

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

Corrosion Proof

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

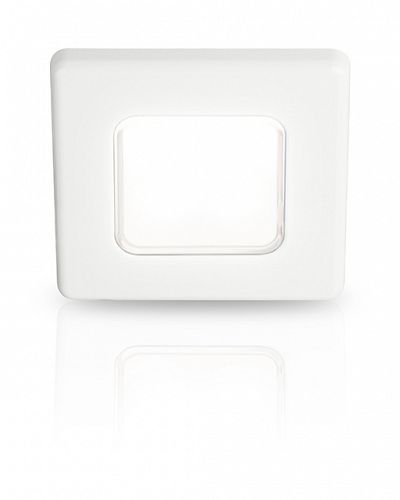

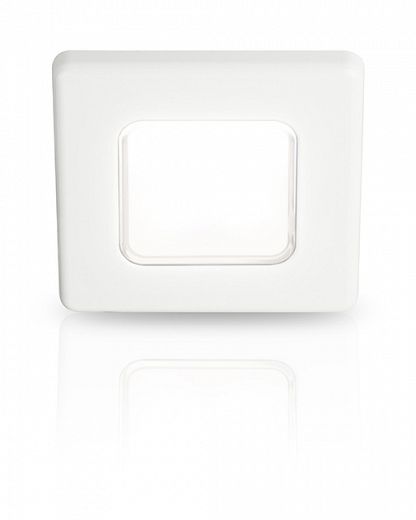

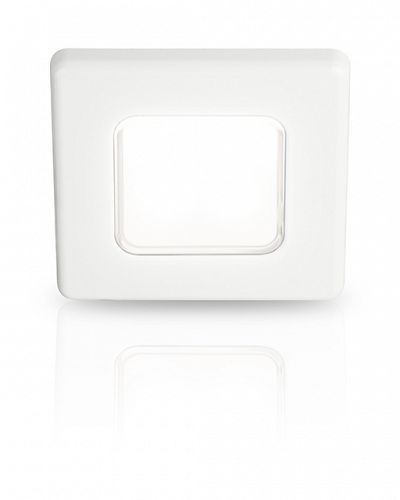

EuroLED® 75 Square- White Lamp, 12V DC, White Plastic Rim

PART NO: 2JA 015 014-011

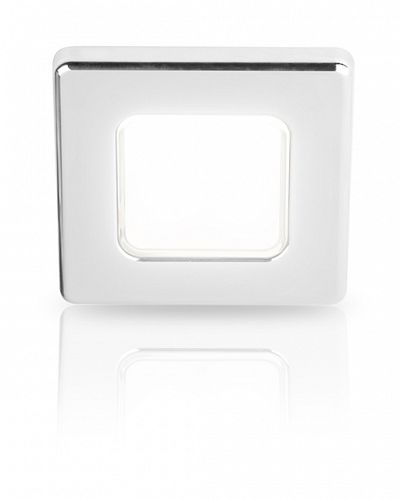

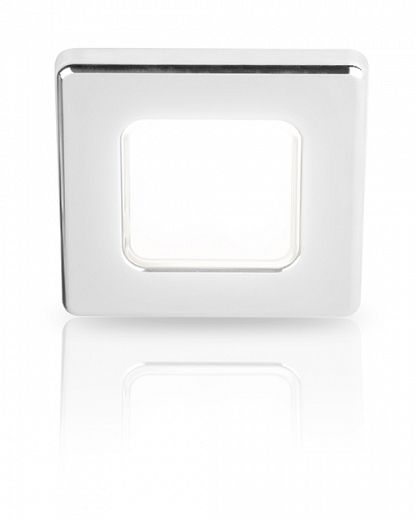

EuroLED® 75 Square - White lamp, 12V DC, Chrome-Plated Plastic Rim

PART NO: 2JA 015 014-021

EuroLED® 75 Square - White Lamp, 24V DC, White Plastic Rim

PART NO: 2JA 015 014-111

EuroLED® 75 Square - White Lamp, 24V DC, Chrome-Plated Plastic Rim

PART NO: 2JA 015 014-121

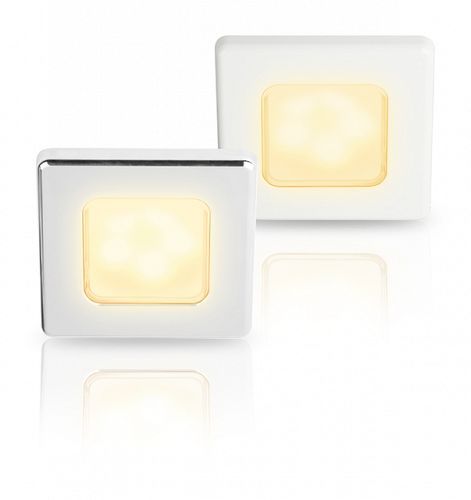

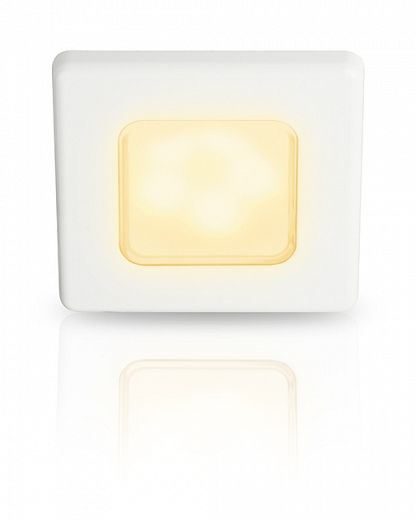

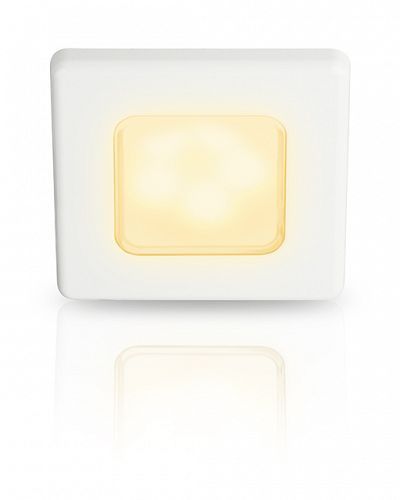

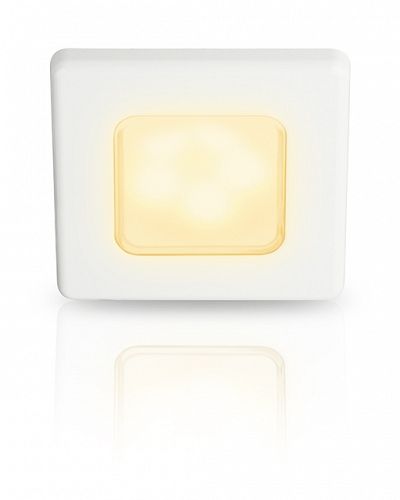

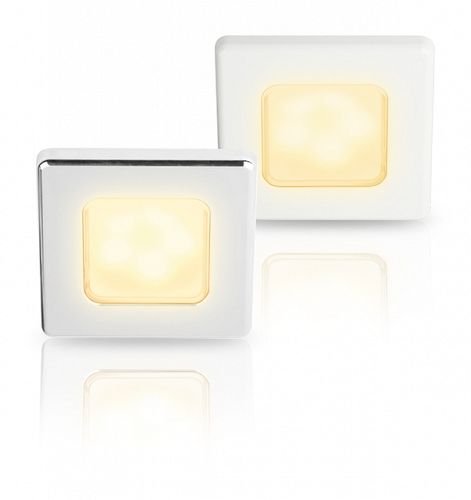

EuroLED® 75 Square - Warm White, 12V DC, White Plastic Rim

PART NO: 2JA 015 014-211

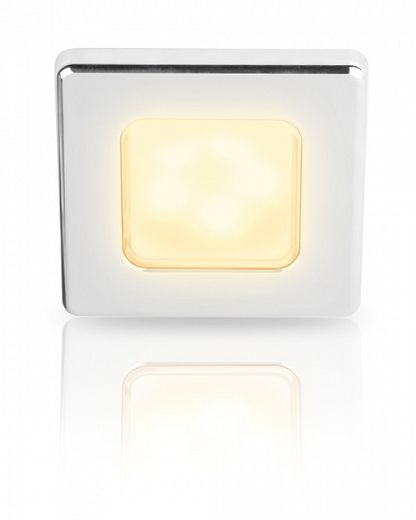

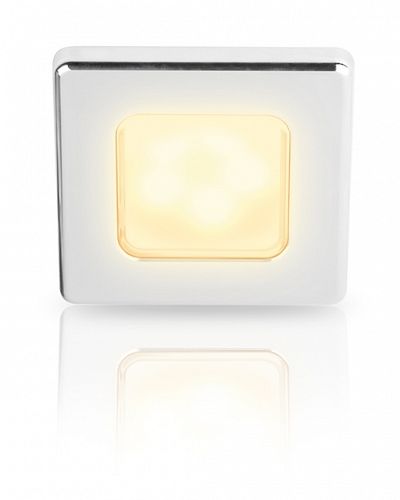

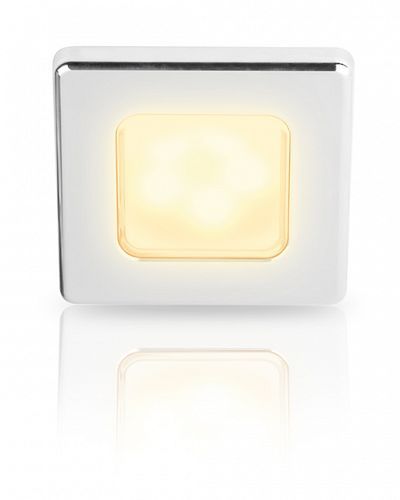

EuroLED® 75 Square - Warm White, 12V DC, Chrome-Plated Plastic Rim

PART NO: 2JA 015 014-221

EuroLED® 75 Square - Warm White, 24V DC, White Plastic Rim

PART NO: 2JA 015 014-311

EuroLED® 75 Square - Warm White, 24V DC, Chrome-Plated Plastic Rim

PART NO: 2JA 015 014-321

Specifications

Mounting

Recess mount, 50mm diameter hole. Screw mount.

Rim material

UV resistant white or chrome plated plastic

Colour Temperature

5000K (White), 2700 (Warm White)

Dimming

Via PWM or Voltage Resistive dimmer

Cable

Pre-wired with 120mm tinned marine cable

Operating Voltage

12V DC (9-16VDC) or 24V DC (18-33VDC)

Power Consumption

3W ( <0.19A @ 12V DC), 3W ( <0.09A @ 24V DC)

Degree of Protection

IP6K7 & IP6K9K (Completely sealed)

Installation

Screw mount

Approvals

CE, RCM

Manufactured In

New Zealand

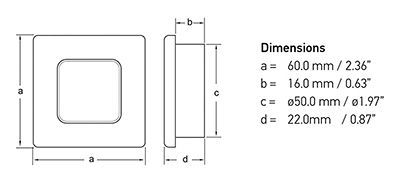

Outline
