HELLA

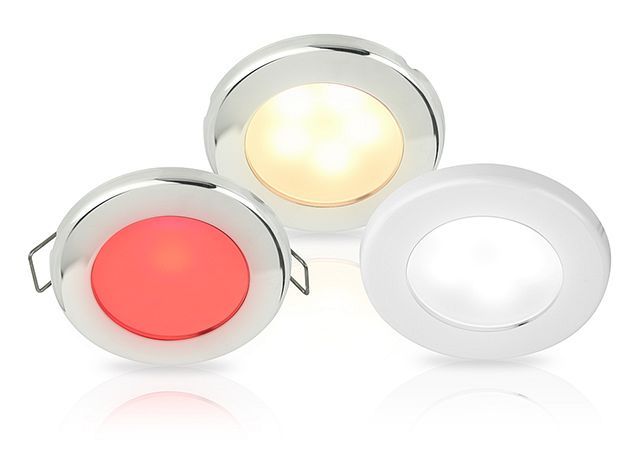

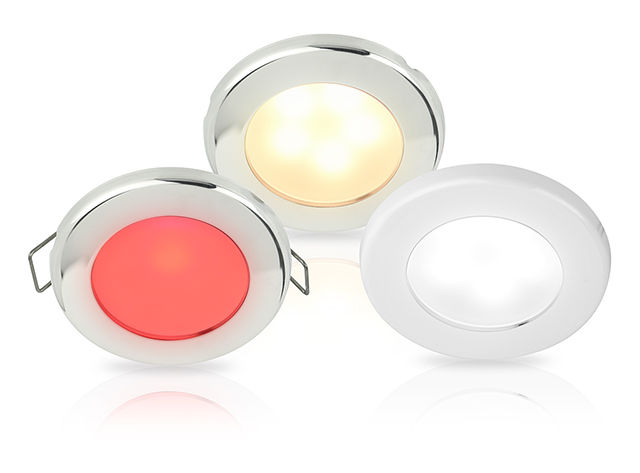

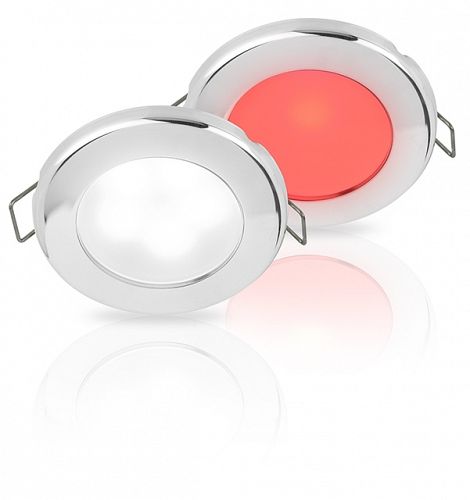

EuroLED® 75 Dual Colour LED Down Lights

Offering the latest in style, functionality, performance, energy efficiency and long-lasting illumination, the EuroLED® 75 Dual Colour down lights are a great addition.

Leading LED technology delivers exceptional colour rendering, reproducing colours in their natural richness. Producing an impressive output of 190 actual lumens, with a diffused lens, creates a bright, broad and even illumination, replicating the pleasing appearance of a traditional round lamp - giving you the best of both worlds.

Available in warm white/red or white/red, which will beautifully enhance the materials of your caravan or camper, the secondary red LED colour also adds increased functionality by enhancing nighttime visibility. Screw or spring mount options, pre-wired lamps and sized for a standard cut out make new or refit installation a breeze.

Suitable for both interior and exterior applications, wet or dry, the EuroLED® 75 lamps are also completely sealed - IP67 rated. Manufactured using high-grade materials these lamps will not corrode, fade or embrittle even in a harsh marine environment.

Have complete peace of mind knowing the EuroLED® 75 Dual Colour lamps are tested and proven in the toughest conditions and supported with a leading 5-year warranty.



Rollover/tap the icons below for further details:

LED Technology

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

Corrosion Proof

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

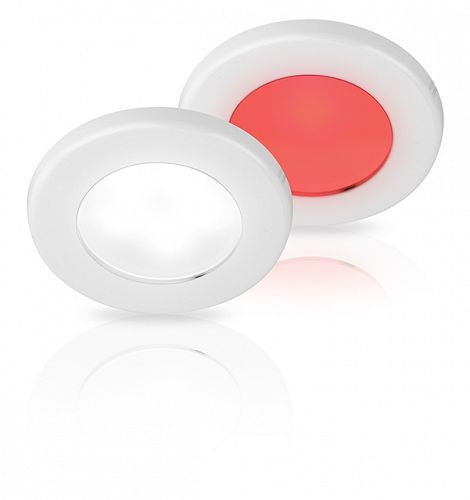

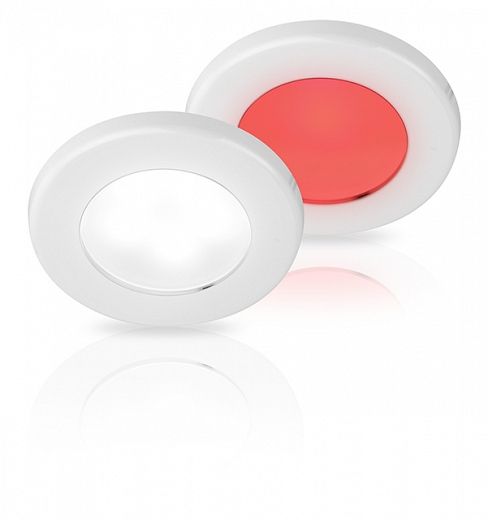

EuroLED® 75 Dual Colour - White/Red, 12V DC, White Plastic Rim, Screw Mount

PART NO: 2JA 015 247-011

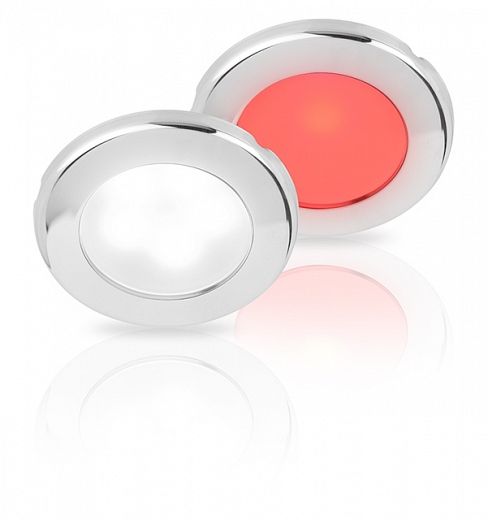

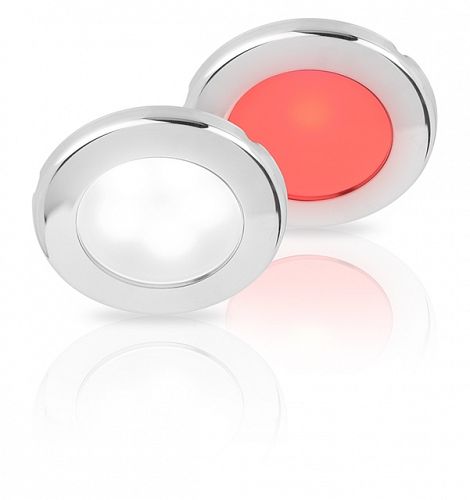

EuroLED® 75 Dual Colour - White/Red, 12V DC, 316 Stainless Steel Rim, Screw Mount

PART NO: 2JA 015 247-021

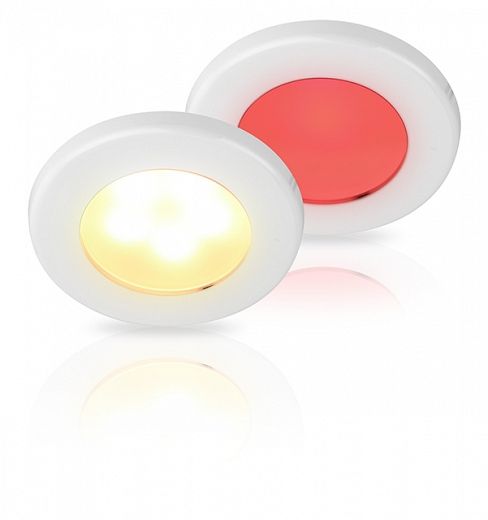

EuroLED® 75 Dual Colour - Warm White/Red, 12V DC, White Plastic Rim, Screw Mount

PART NO: 2JA 015 247-111

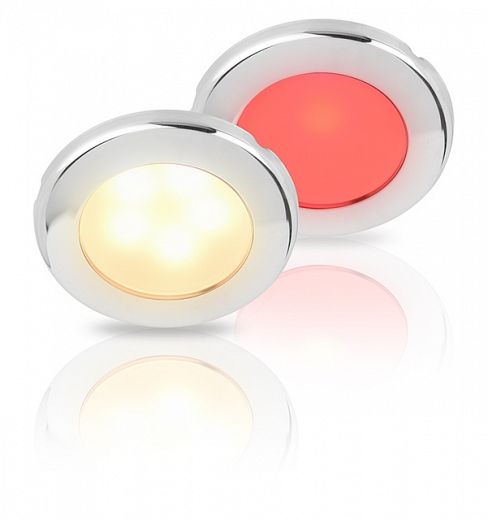

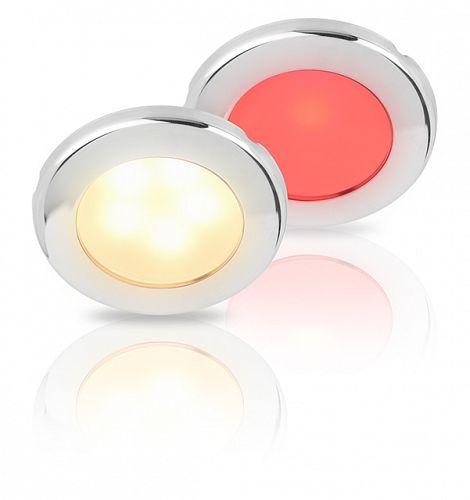

EuroLED® 75 Dual Colour - Warm White/Red, 12V DC, 316 Stainless Steel Rim, Screw Mount

PART NO: 2JA 015 247-121

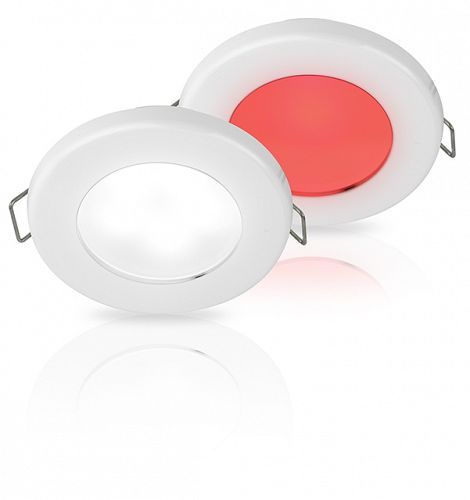

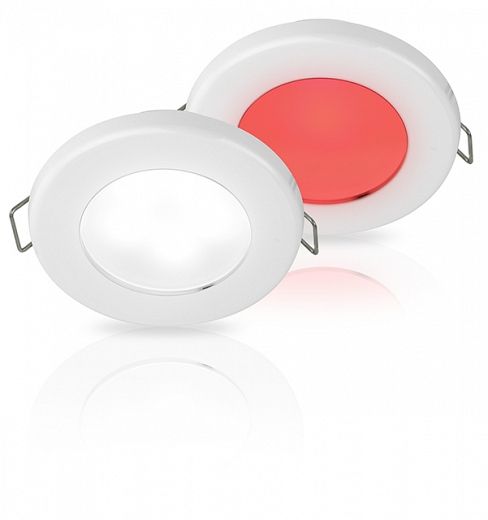

EuroLED® 75 Dual Colour - White/Red, 12V DC, White Plastic Rim, Spring Mount

PART NO: 2JA 015 247-511

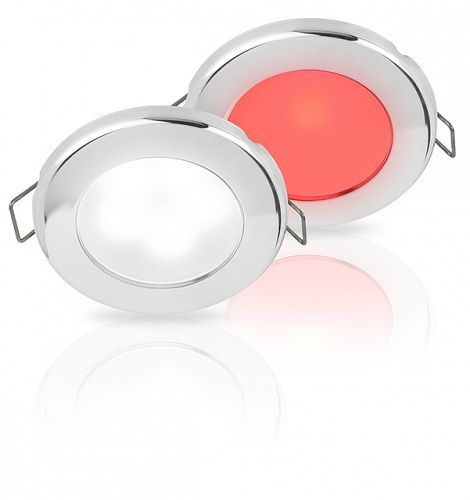

EuroLED® 75 Dual Colour - White/Red, 12V DC, 316 Stainless Steel Rim, Spring Mount

PART NO: 2JA 015 247-521

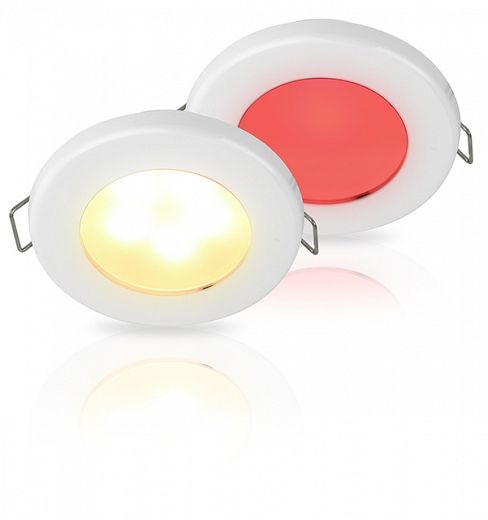

EuroLED® 75 Dual Colour - Warm White/Red, 12V DC, White Plastic Rim, Spring Mount

PART NO: 2JA 015 247-611

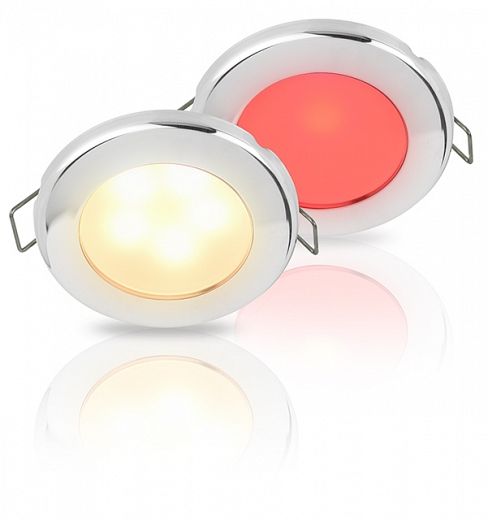

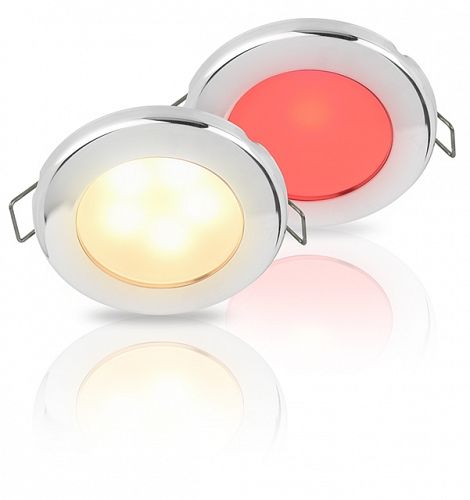

EuroLED® 75 Dual Colour - Warm White/Red, 12V DC, 316 Stainless Steel Rim, Spring Mount

PART NO: 2JA 015 247-621

Specifications

Mounting

Recess mount, 50mm diameter hole screw mount, 58mm hole spring mount.

Rim material

UV resistant plastic or 316 stainless steel options

Colour Temperature

5000K (White) , 2700K (Warm White)

Dimming

Via PWM or Voltage Resistive dimmer

Lumen

190 lumen actual output

Operating Voltage

12V DC (9-16V DC)

Power Consumption

3W ( <0.19A @ 12V DC)

Degree of Protection

IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high pressure/steam jet cleaning)

Cable

Pre-wired with 120mm tinned marine cable

Manufactured In

New Zealand

Compliance

CE CE

Outline

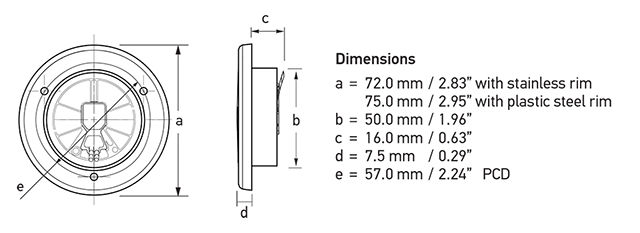

Screw mount lamp dimensions.
Screw mount lamp dimensions.

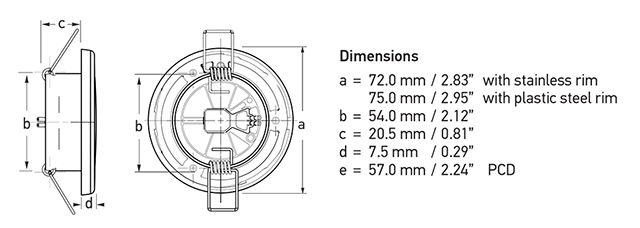

Spring mount lamp dimensions.
Spring mount lamp dimensions.
