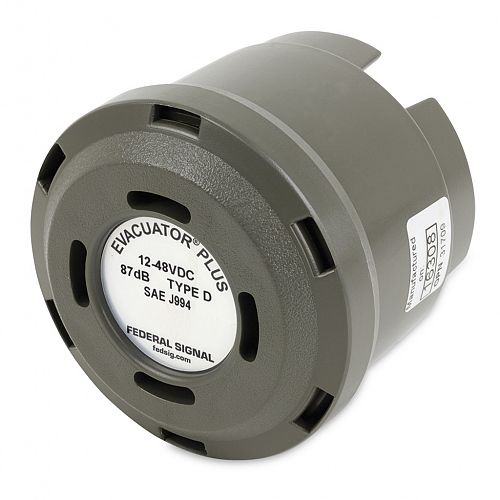

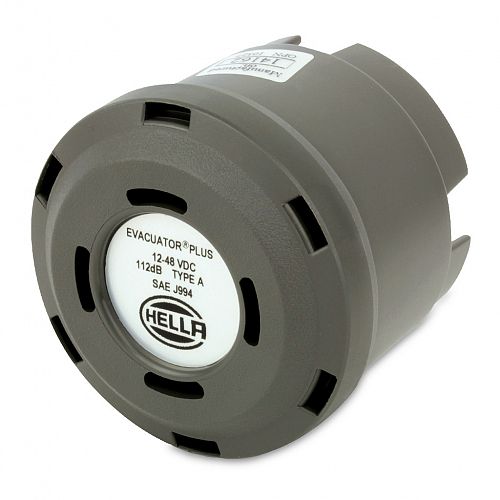

Reversing Alarm 87-112dB Heavy Duty - Evacuator Plus

The Evacuator Plus heavy duty reversing and warning alarm features a lightweight piezoelectric output circuit. The reduced weight of just 129 grams makes the Evacuator Plus virtually immune to vibration damage.

Unique nickel plated conductive terminal inserts, which provide power to the alarm, are hermetically sealed, giving superior water resistant performance. The housing is constructed of high impact ABS plastic resin and is environmentally sealed against moisture, dust and corrosion.

Evacuator Plus reversing and warning alarms are steam cleanable.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Options

Reversing Alarm 87dB 12-24 Volts

PART NO: 3SL 980 316-001
Legacy PN: 6042

Reversing Alarm 97dB 12-48 Volts

PART NO: 3SL 905 415-001
Legacy PN: 6043

Reversing Alarm 112dB 12-48 Volts

PART NO: 3SL 905 415-011
Legacy PN: 6044

Specifications

Mounting

Universal mounting comes complete with heavy-gauge plated steel mounting bracket.
Can be installed on positive and negative ground vehicles.

Voltage

12-48V

Current draw

Less than 0.20A

Frequency

80 signals per minute (± 20%).

Sound Level

6042 87dB @ 1.2m
6043 97dB @ 1.2m
6044 112dB @ 1.2m

Temperature

Operating range -40ºC to 74ºC.

Protection

Protection against dust and high pressure washing

Compliance

SAE J994

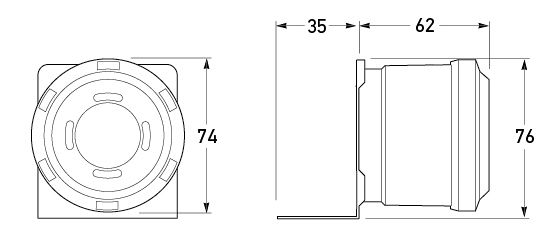

Outline

All dimensions in mm.
All dimensions in mm.
