HELLA

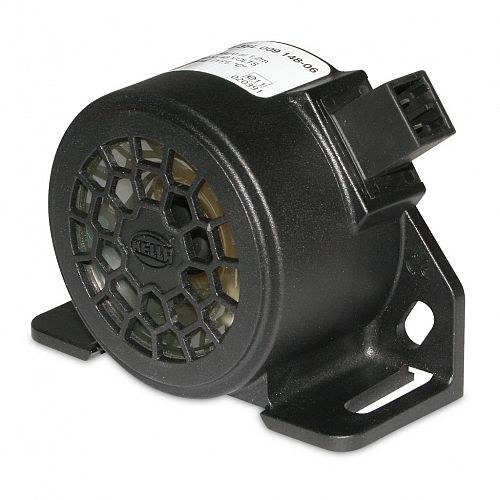

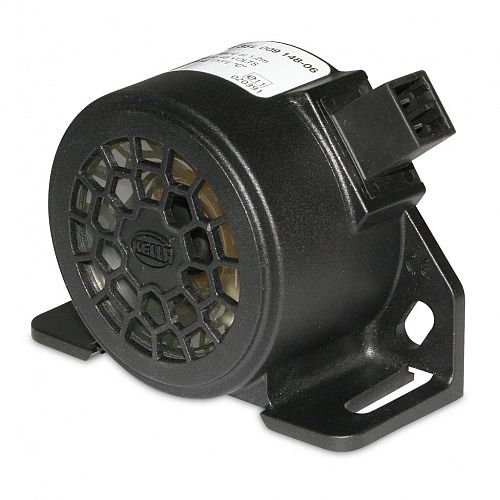

Reversing Alarm 90-107dB Heavy Duty

Heavy duty reversing alarm with integral AMP connection and fixed sound pressure levels between 90 and 107dB @ 1.2 metres. Epoxy encapsulated circuit boards offer protection against humidity, dirt and vibration.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Options

Reversing Alarm 90dB 12-24 Volts

Reversing Alarm 90dB 12-24 Volts

PART NO: 3SL 009 148-001
Legacy PN: 6008

Add to favourites
Reversing Alarm 97dB 12-24 Volts

Reversing Alarm 97dB 12-24 Volts

PART NO: 3SL 009 148-011
Legacy PN: 6009

Add to favourites
Reversing Alarm 107dB 12-24 Volts

Reversing Alarm 107dB 12-24 Volts

PART NO: 3SL 009 148-021
Legacy PN: 6010

Add to favourites

Specifications

Mounting

Integrated universal mounting bracket for upright, pendant or surface mounting.

Voltage
3SL 009 148-001,
3SL 009 148-011,
3SL 009 148-021		 12-24V

Current draw
3SL 009 148-001,
3SL 009 148-011		 0.2A
3SL 009 148-021 0.3A

Frequency

60 signals per minute (± 20%).

Sound Level
3SL 009 148-001 90 ± 4dB @ 1.2m
3SL 009 148-011 97 ± 4dB @ 1.2m
3SL 009 148-021 107 ± 4dB @ 1.2m

Temperature

Operating range -40ºC to 85ºC.

Protection
IP 66 (Protection against high pressure washing)

Spare part
8KA 990 258-011 Plug and lead

Compliance

SAE J994

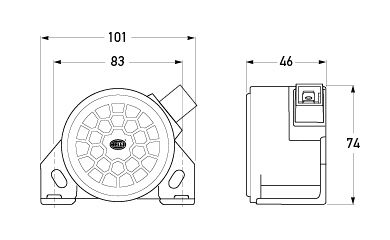

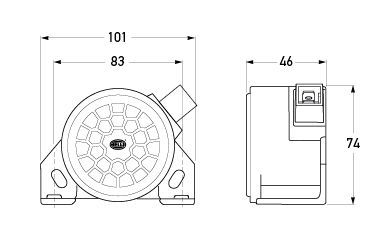

Outline

All dimensions in mm.
All dimensions in mm.
