HELLA

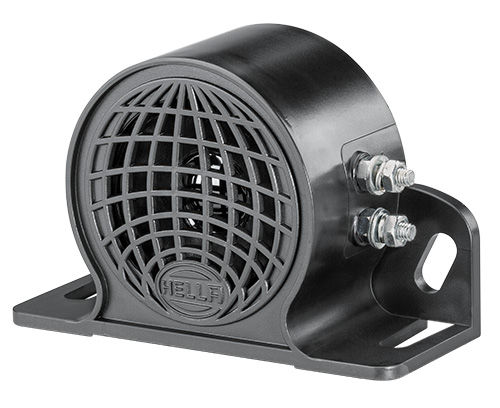

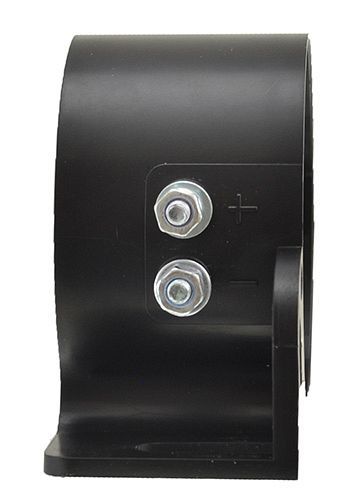

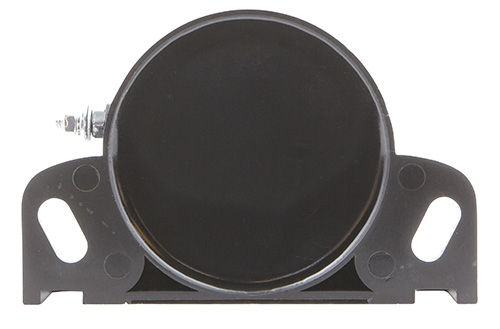

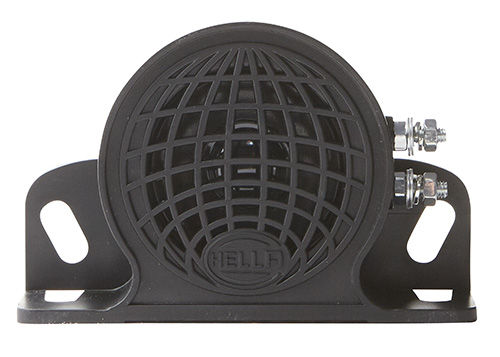

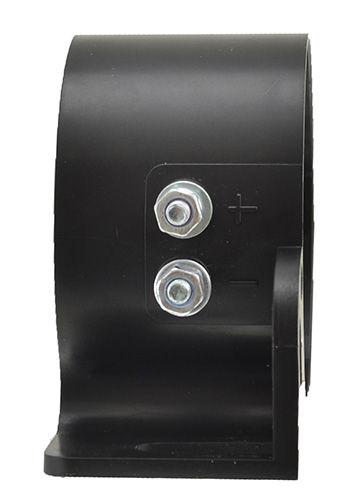

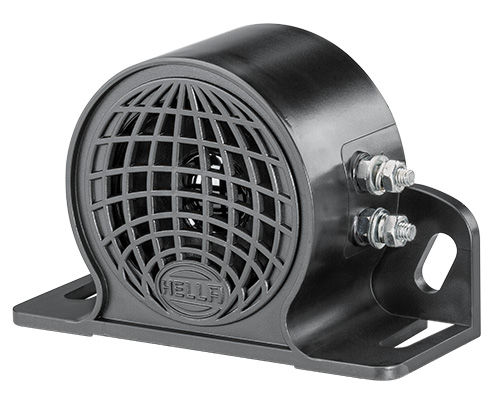

BM10 Backup and Warning Alarm

The BM10 Backup and Warning alarm is an indispensable element in high-risk work environments and can actively prevent accidents with its high frequency alarm. The B10 is an excellent base level alarm with a characterisitc Beeping warning tone. As soon as reverse gear is engaged, the warning tone is emitted to indicate the vehicle is reversing.

  • Clear, long range alarm sound
  • Electronics sealed from dust and moisture
  • Low power consumption

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Corrosion Proof

Options

BM10 Warning Alarm - Beep 97 dB(A)

PART NO: 3SL 009 148-171

Specifications

Mounting

Universal mounting bracket for upright, pendant or surface mounting.

Voltage

12V-48V

Power Consumption

Max 12W

Sound Level

Part Number Description Sound level @ 1.2m
3SL 009 148-171 BM10 Warning Alarm - Beep 97 dB(A)

Temperature

Operating range -40ºC to 85ºC.

Protection

Reverse polarity protection
IP 67 (Protection against dust and water immersion)

Compliance

ECE-R10, SAE J994   CE

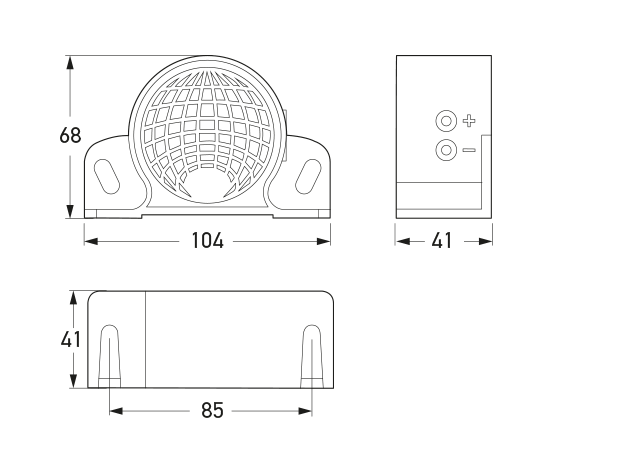

Outline

All dimensions in mm
All dimensions in mm

Top
