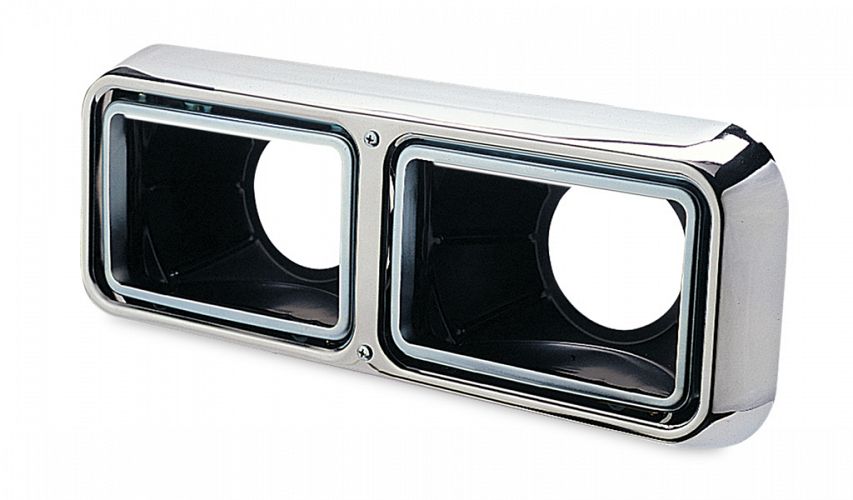

165 x 100mm Twin Rectangular Headlamp Housing
For most 165 x 100mm rectangular headlamp units. Chrome plated outer rim. Complete with adjusting mechanisms for vertical/horizontal alignment and wiring loom. Ideal for truck, bus or body builders.
To find a HELLA reseller near you, click here.
Rollover/tap the icons below for further details:
Options
165 x 100mm Twin Rectangular Headlamp Housing
PART NO: 1VB 950 951-001
Legacy PN: 1025
Specifications
Spare Part |
|

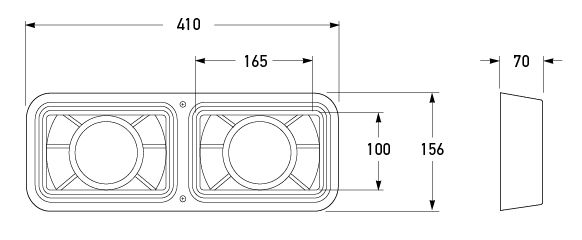

Outline
All dimensions in mm.
Lamp Function: High Beam, Head Lamp, Lamp Insert
Lamp Function: High/Low Beam, Head Lamp, Lamp Insert
Lamp Function: High/Low Beam, Head Lamp, Lamp Insert
Options: Position Lamp
Options: Position Lamp
Lamp Function: Lamp Housing / Mounting
