HELLA

Bayonet Bulbs - Single Filament - Double Contact BA15d

Bayonet marker & clearance lamp bulbs. Single filament, double contact.

Many bulb applications have multiple options in terms of colour, brightness & duty.

To find a HELLA reseller near you, click here.

At HELLA, we have been designing, developing and manufacturing automotive lighting solutions since the motorcar was first produced. Today HELLA automotive bulbs are renowned for their uncompromising adherence to the highest quality and safety standards.

Try HELLA's free online tool, the HELLA Bulb Configurator, which makes it easy to select the correct bulbs for your vehicle.



HELLA Bulb Configurator



Rollover/tap the icons below for further details:

Options

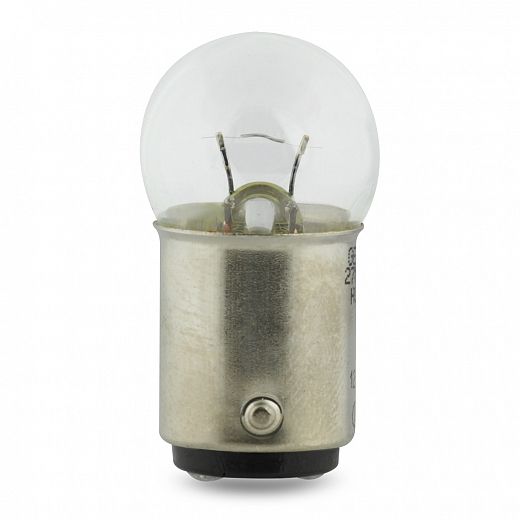

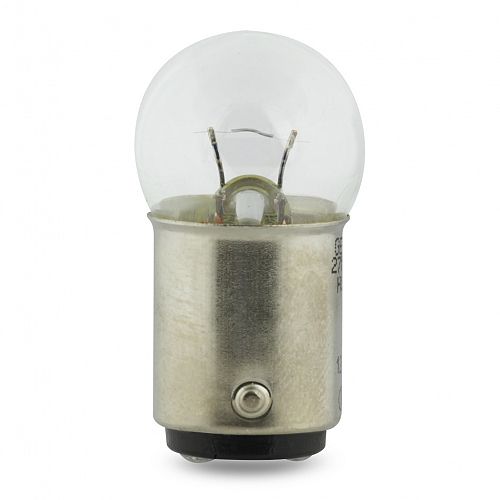

Bayonet Bulb 12V 5W BA15d

PART NO: 8GA 002 071-372
Legacy PN: GD125

Bayonet Bulb 24V 5W BA15d

PART NO: 8GA 002 071-362
Legacy PN: GD245

Specifications

Voltage

12V and 24V respectively

Power Consumption

5W

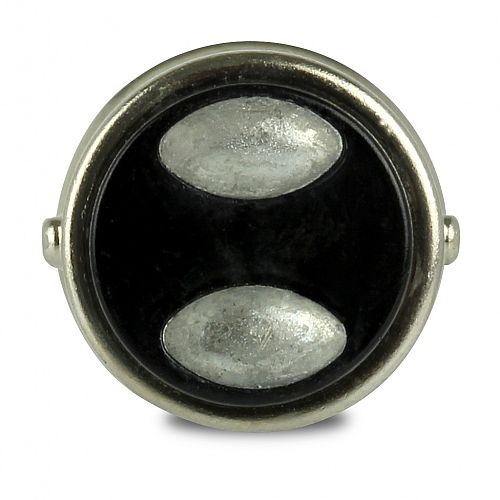

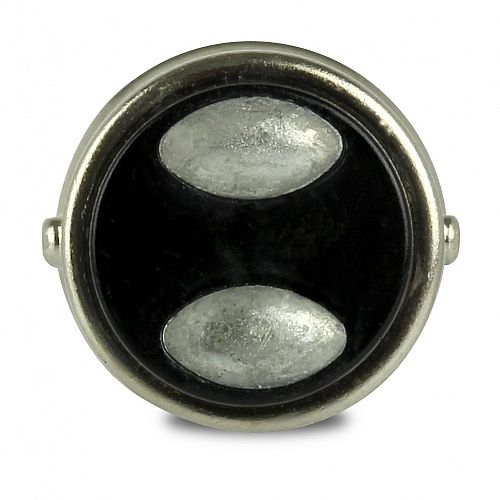

Base

BA15d

ADR 51/00 Category

R5W

Note

Bulk bulbs (other than Halogen) are sold in packs of 10.

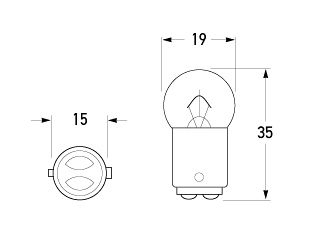

Outline

All dimensions in mm.
All dimensions in mm.
