Toggle Switch - Off-On Illuminated 12V

Two position switch, illuminated. Push-on terminals.

To find a HELLA reseller near you, click here.

P/N 6EG 905 354-002 (4433) (Red)

P/N 6EG 905 354-002 (4433) (Red)

P/N 6EG 905 354-012 (4434) (Green)

P/N 6EG 905 354-012 (4434) (Green)

P/N 6EG 905 354-032 (4436) (Blue)

P/N 6EG 905 354-032 (4436) (Blue)

All dimensions in mm.

All dimensions in mm.

Rollover/tap the icons below for further details:

Options

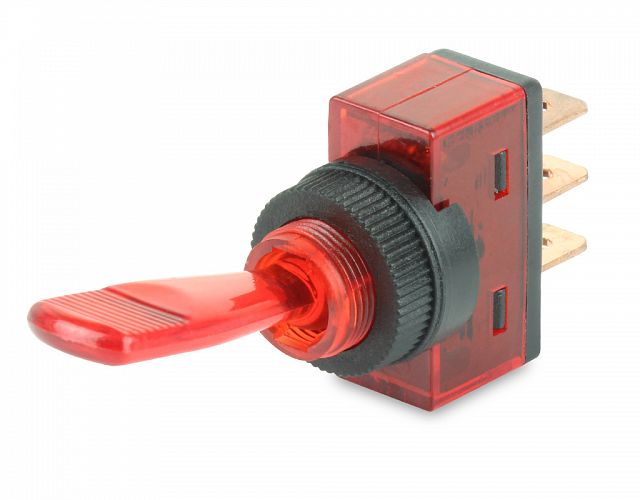

Toggle Switch Off-On, Illuminated Red - 12 Volt

Toggle Switch Off-On, Illuminated Red - 12 Volt

PART NO: 6EG 905 354-002
Legacy PN: 4433

Add to favourites

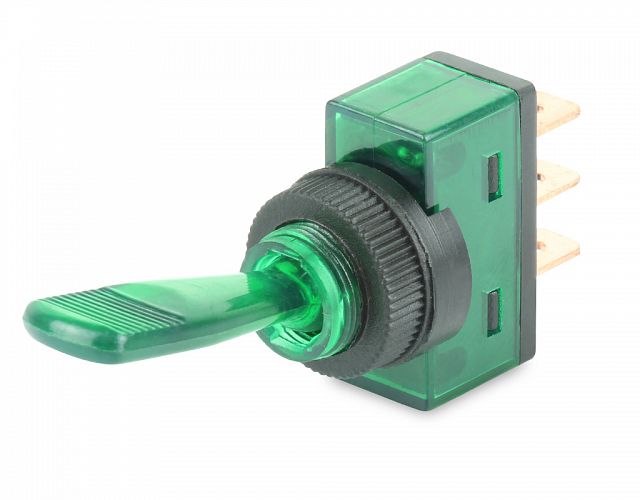

Toggle Switch Off-On, Illuminated Green - 12 Volt

Toggle Switch Off-On, Illuminated Green - 12 Volt

PART NO: 6EG 905 354-012
Legacy PN: 4434

Add to favourites

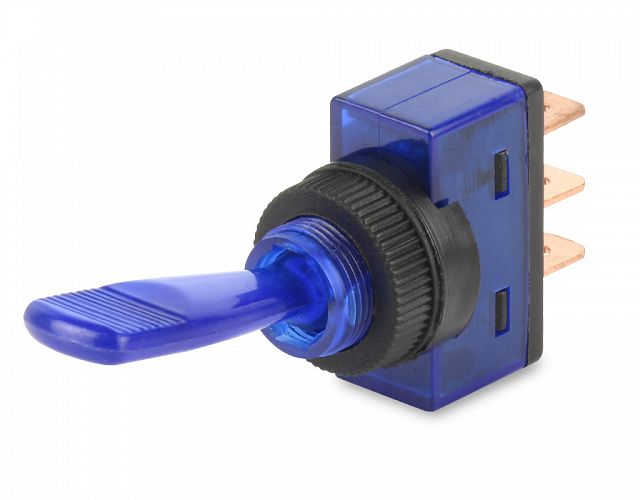

Toggle Switch Off-On, Illuminated Blue - 12 Volt

Toggle Switch Off-On, Illuminated Blue - 12 Volt

PART NO: 6EG 905 354-032
Legacy PN: 4436

Add to favourites

Specifications

Mounting

12.5mm diameter opening.

For panels

Up to 6mm thick.

Terminals

3

Maximum load

12V

10A

Note

Suitable for 12V only, bulb not replaceable.

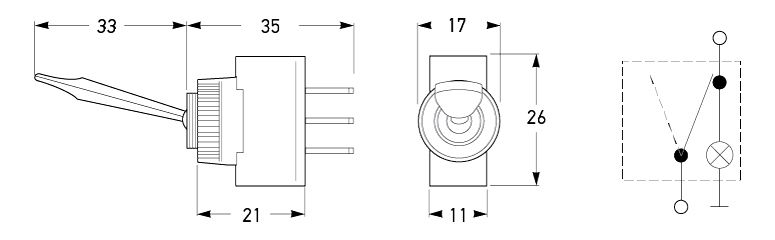

Outline

All dimensions in mm.

All dimensions in mm.
